Chapter 2 Disassembly Process
2-42
CLM W6_CLM HD6 Jan 31, 2012
21. Disassemble engine module.
2-19 Disassemble Fan (70*20)

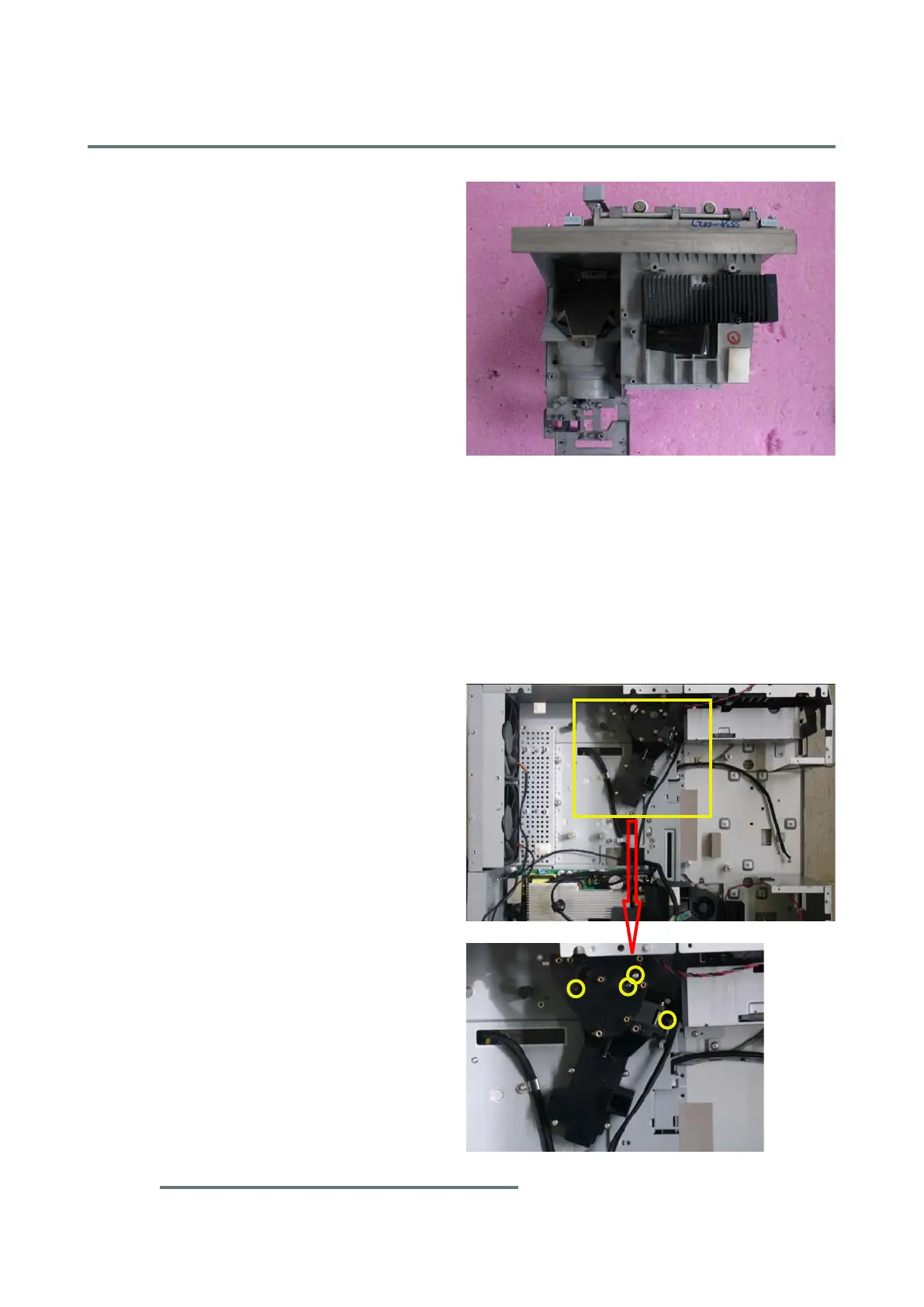

1. Unscrew 4 screws (yellow circle) to
remove fan module.
