Chapter 2 Disassembly Process
2-54
CLM W6_CLM HD6 Jan 31, 2012

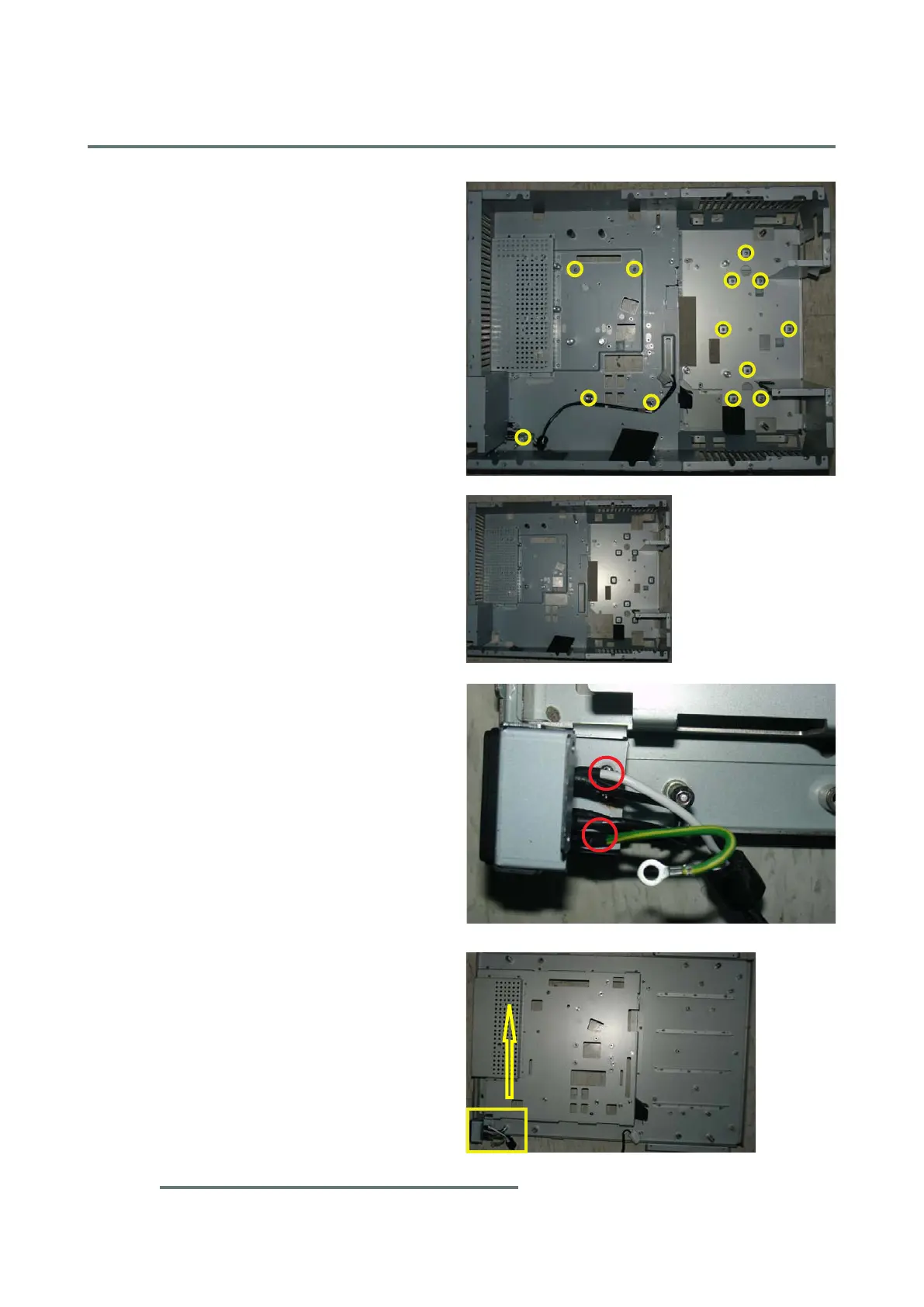

3. Unscrew 13 screws (yellow circle) to
remove Bottom Cover Module.
4. Unscrew 2 screws (red circle) to
remove Bottom Cover Module.
