Chapter 2 Disassembly Process
2-23
CLM W6_CLM HD6 Jan 31, 2012

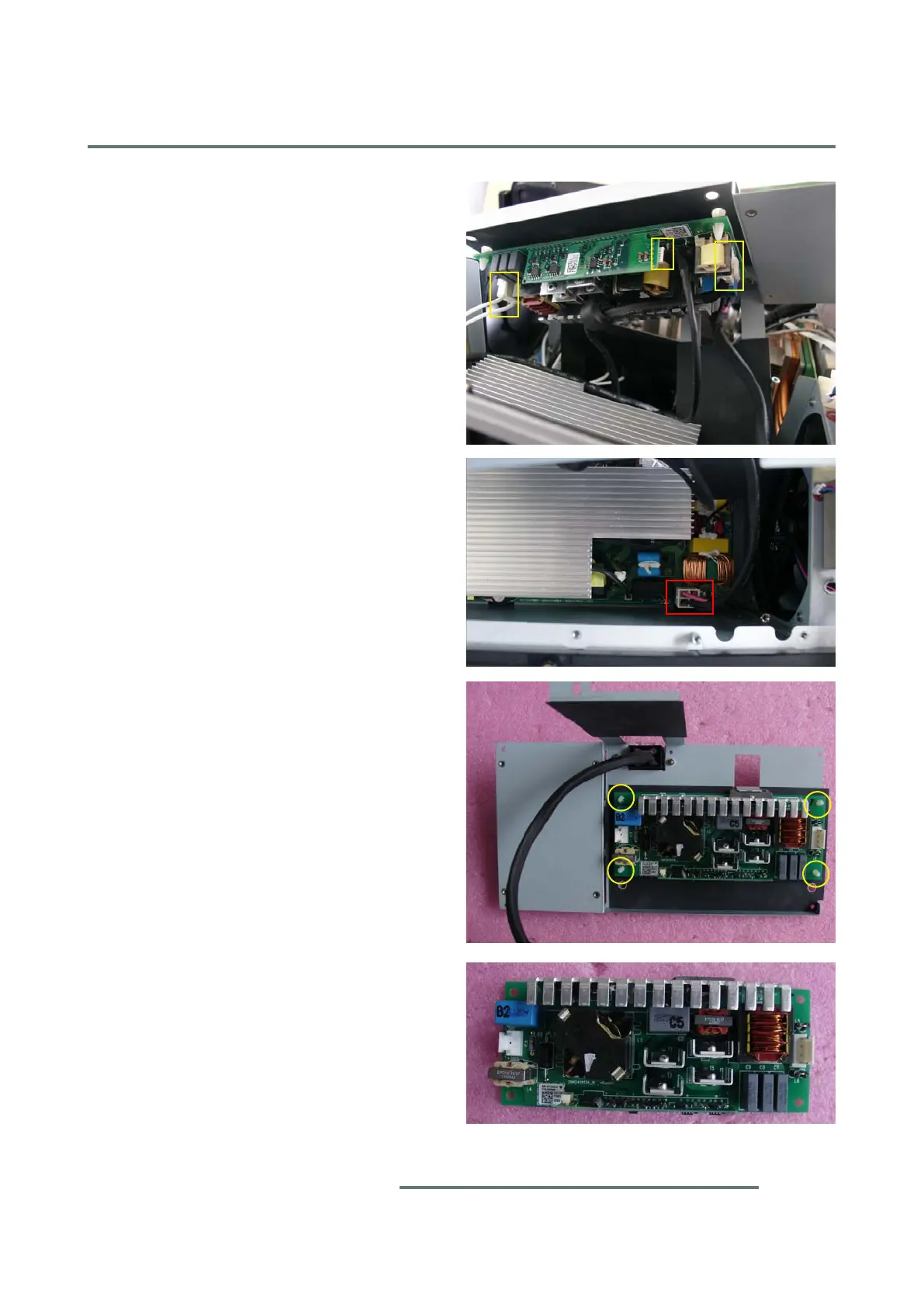

2. Pull up lamp driver gently, unplug 3
connectors on it (yellow square).
Remove lamp driver to main board cable.
3. Unplug 1 connector (red square) on
LVPS module.
Remove right lamp driver module.
4. Use a tweezers to loosen 4 tenons (yellow
circle) to remove right lamp driver.
