Chapter 2 Disassembly Process
2-38
CLM W6_CLM HD6 Jan 31, 2012

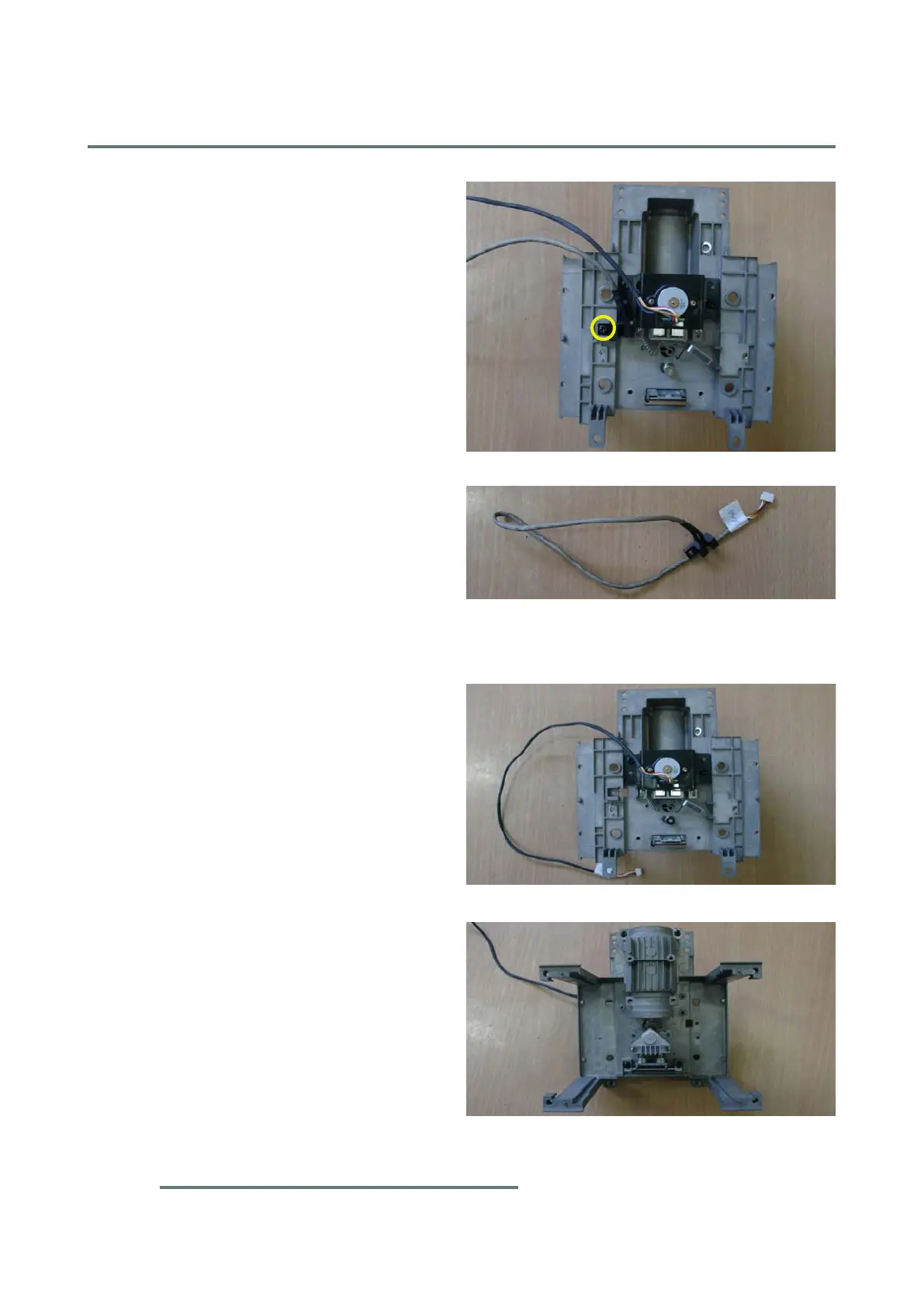

13. Unscrew 1 screw (yellow circle)
to disassemble the Prism sensor
cable.
Prism sensor
Bottom
Front
14. Disassemble lamp housing module.
