112 PDS • User’s Guide
^K==péÉÅáÑáÅ~íáçåë
Pinouts
pÉêá~ä=`çååÉÅíçê

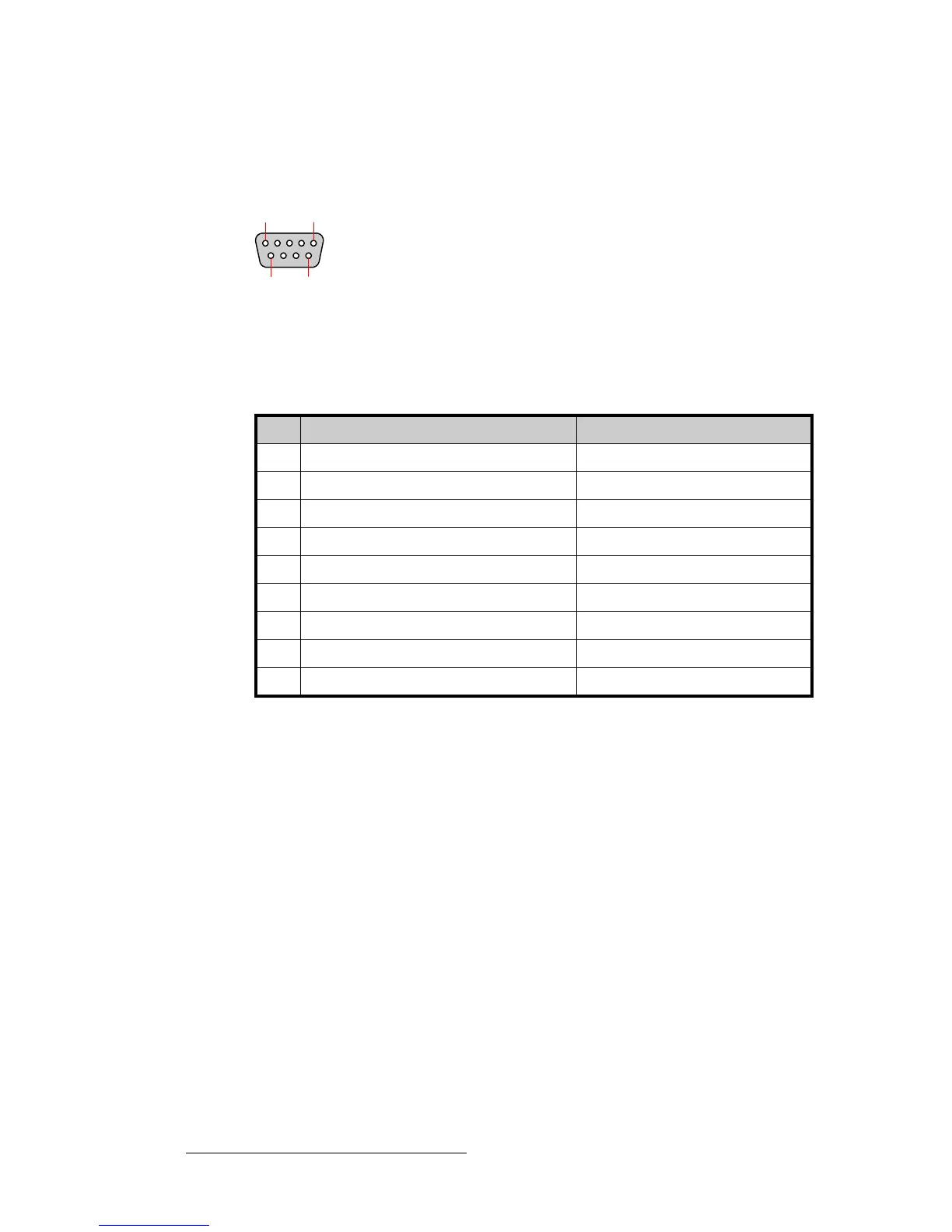

The figure below illustrates the DB-9 Serial connector.
Figure A-4. Serial connector
The table below lists Serial connector pinouts.
Table A-9. Serial Connector Pinouts
Pin RS-232 Signal Description
1 CD Carrier Detect
2 TXD Transmitted Data
3 RXD Received Data
4 DSR Data Set Ready
5 GND Signal Ground
6 DTR Data Terminal Ready
7 CTS Clear To Send
8 RTS Request To Send
9 RI Unused
