76 PDS • User’s Guide
4. Operation
Using Inputs
cäáéJÑäçé=jçÇÉ
Whenever you press TAKE to mix between inputs (including the LOGO), the PDS
automatically flip-flops inputs. Two actions occur when TAKE is pressed:
• The blinking “next” source transitions to Program. Once it is fully on Program, the
button lights solid.
• The previous (solid) source on Program automatically becomes the pending
“next” source, and the button blinks.

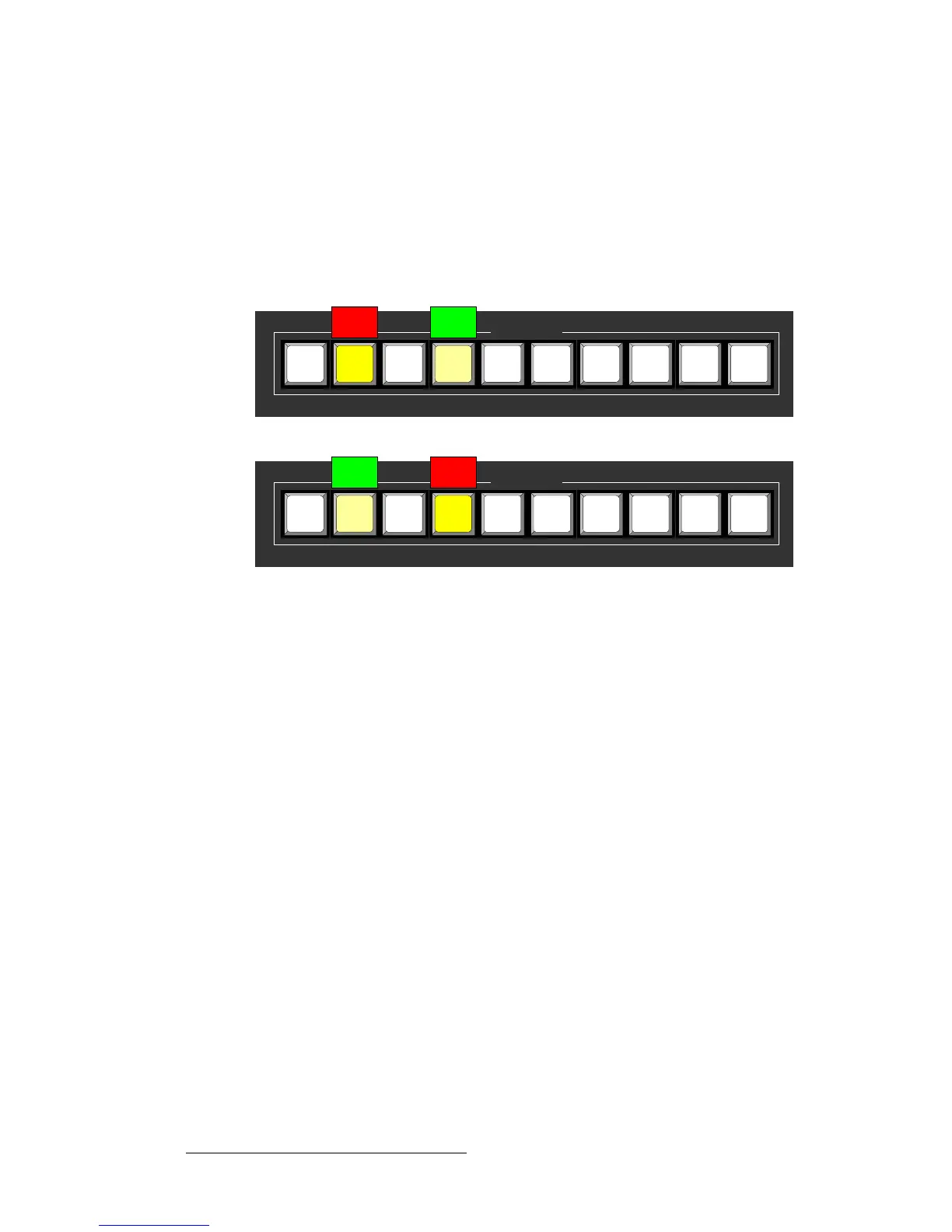

Figure 4-61. Flip-flop mode, before and after TAKE
Repeatedly pressing TAKE continues to flip-flop the current and pending sources in this
manner. Please note:
• If Black Auto Take is OFF (in the User Preference Menu), you must press TAKE
to transition to black. If a source is pending, the source flip-flops to Program —
after the system is fully in black.
• If Black Auto Take is ON, simply press BLACK to transition to black. If a source
is pending, it remains pending after the transition. There is no flip-flop.
Inputs
3 5 6 8 SDI 1 2 4 7 LOGO
Program
(solid)
Pending
(blinking)
Inputs
3 5 6 8 SDI 1 2 4 7 LOGO
Pending
(blinking)
Program
(solid)
Sources before TAKE
Sources after TAKE
