Mechanical Considerations
7-2
BASLER A102
f
DRAFT
7.1
Camera Dimensions and Mounting Facilities
The dimensions for
A102
f
cameras a
re as shown in F
igure 7-1.
A102
f
cameras are equipped
with four M4 mounting
holes on the
front and two M4 mounting holes
on each sid
e as indicate
d in the dr
awings.

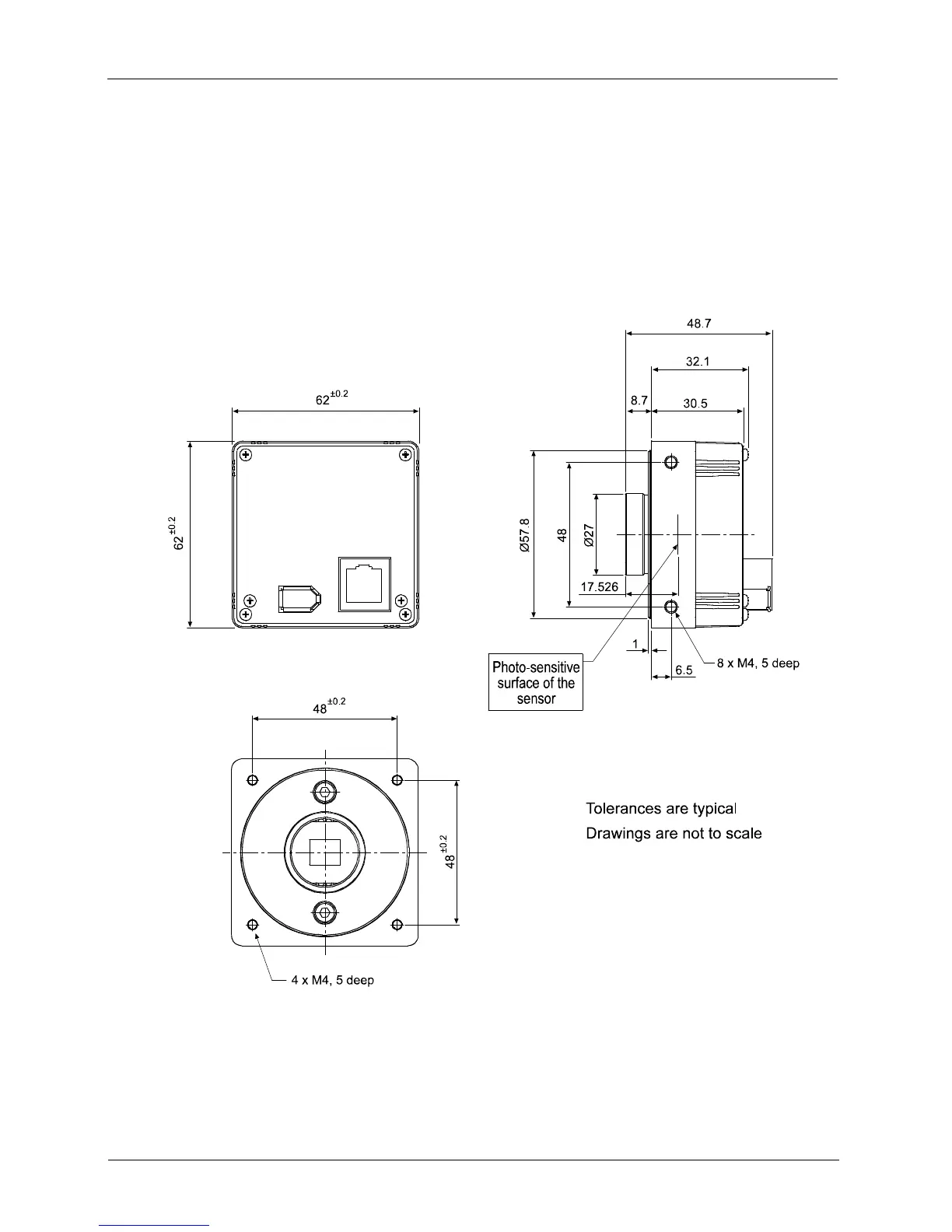

Figure 7-1:
A102
f
Mechanical Dimensions (
in mm)
161
163
