Mechanical Co
nsiderations
BASLER A102
f
7-3
DRAFT
7.2
Sensor Positioning Accuracy
The sensor positioning accuracy in the ho
rizontal
and vertical directions is
as sh
own in Figure 7-
2. Rotational accuracy is
also shown in the figure.

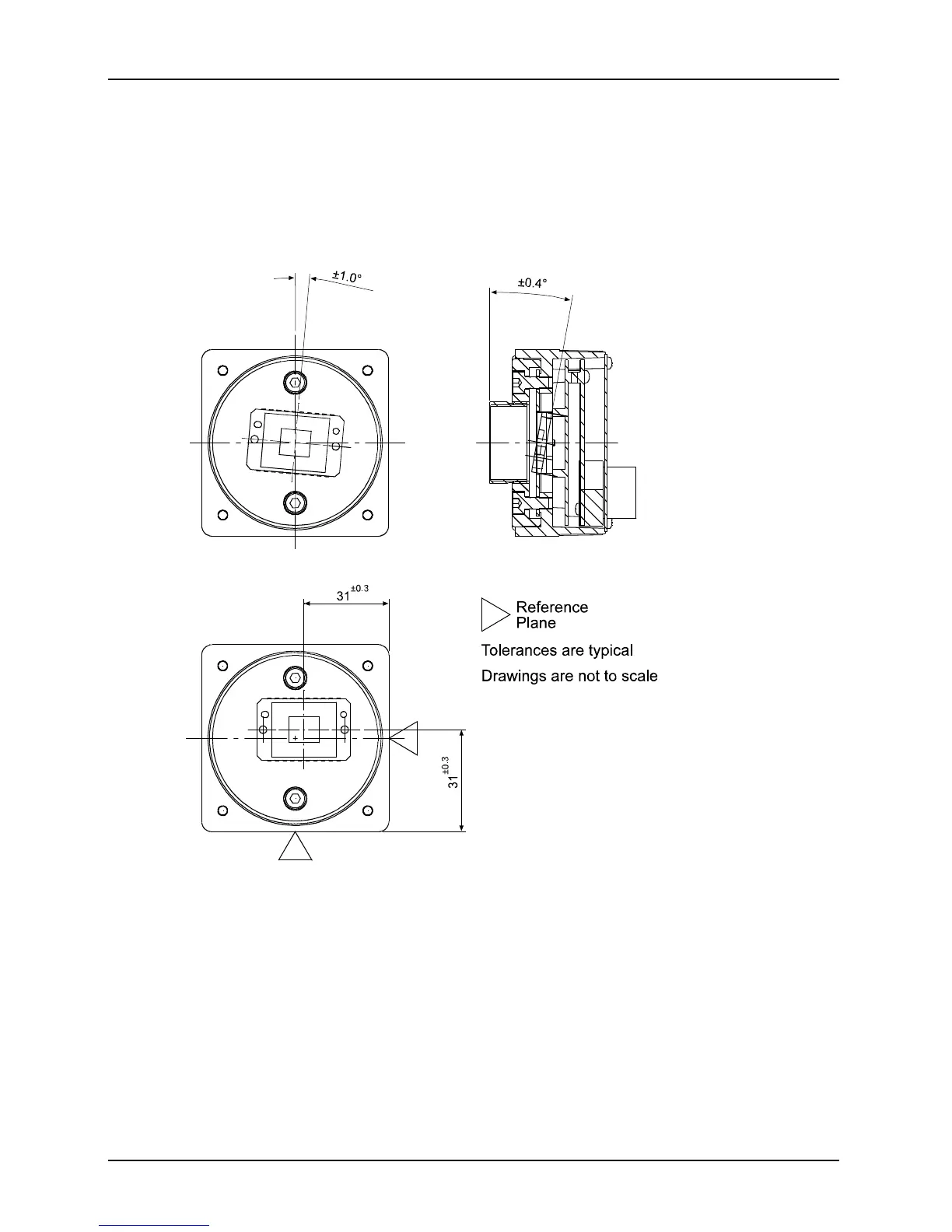

Figure 7-2: Sensor Po
sitioning Accuracy
