Basler Camera User Manual

AW00123402000 Image Acquisition Control
Basler ace USB 3.0 135

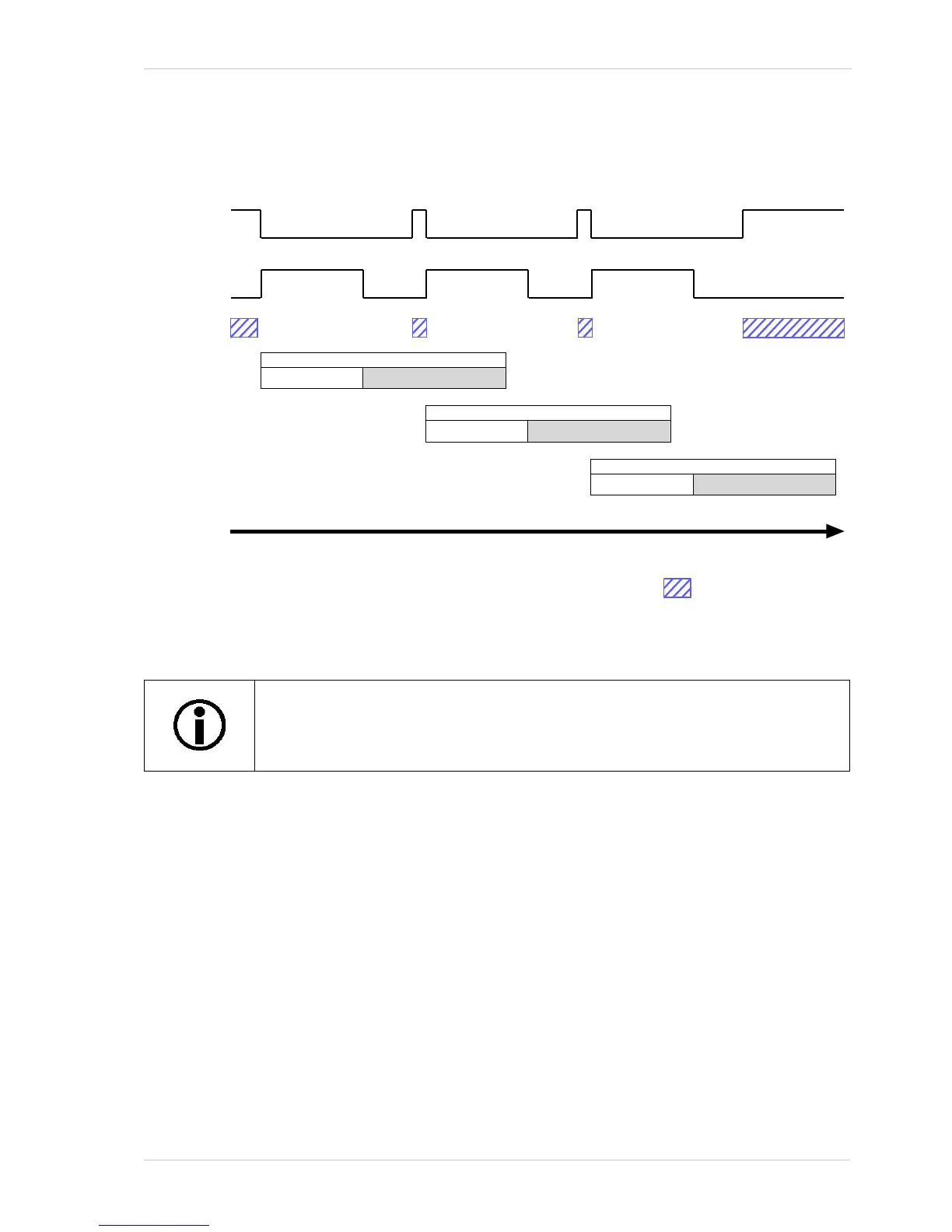

Figure 64 illustrates the Frame Trigger Wait signal on a camera with a global shutter. The camera
is set for the trigger width exposure mode with rising edge triggering and with exposure and readout
overlapped.
For more information about event notification, see Section 8.12 on page 225.
For more information about hardware triggering, see Section 6.3.5 on page 97 and Section 6.4.3
on page 105.
The frame trigger wait signal will only be available when hardware frame start
triggering is enabled.
Frame Acquisition N
Exposure Sensor Readout
Time
Frame Trigger
Wait Signal
Frame Acquisition N+1
Exposure
Frame Acquisition N+2
Exposure
ExFSTrig
Signal
= Camera is in a "waiting for
frame start trigger" status
Fig. 64: Frame Trigger Wait Signal
Sensor Readout
Sensor Readout
