Basler Camera User Manual

AW00123402000 Image Acquisition Control
Basler ace USB 3.0 139
Frame Acquisition N Frame Acquisition N+1 Frame Acquisition N+2
= Line Exposure
= Line Readout
Time
ExFSTrig
Signal
Frame Trigger
Wait Signal
= Camera in a "waiting for
frame start trigger" status
The rise of the Frame Trigger Wait
signal is based on the minimum
time (400 µs) required between the
end of exposure for the first line in
frame N and the start of exposure
for the first line in Frame N+1

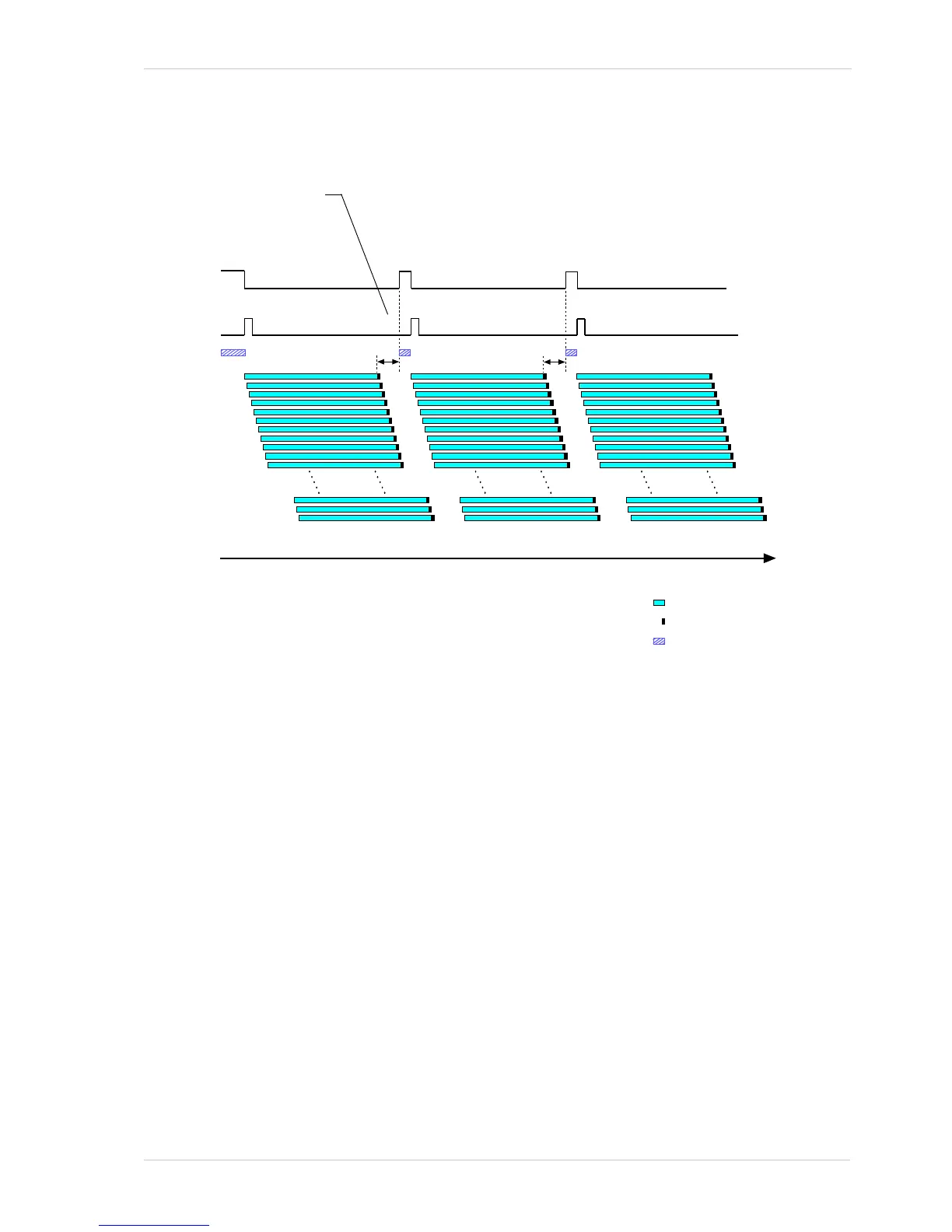

Fig. 67: Frame Trigger Wait Signal on a Rolling Shutter Camera
