Basler Camera User Manual

Features AW00123402000
230 Basler ace USB 3.0
Test Image 6 - Moving Diagonal Color Gradient
The moving diagonal color gradient test image is available on color cameras only and is designed
for use when the camera is set for Y’CbCr output. As shown in Figure 94, test image six consists of
diagonal color gradients. The image moves by one pixel from right to left whenever you signal the
camera to capture a new image. To display this test pattern on a monitor, you must convert the
Y’CbCr output from the camera to 8 bit RGB.

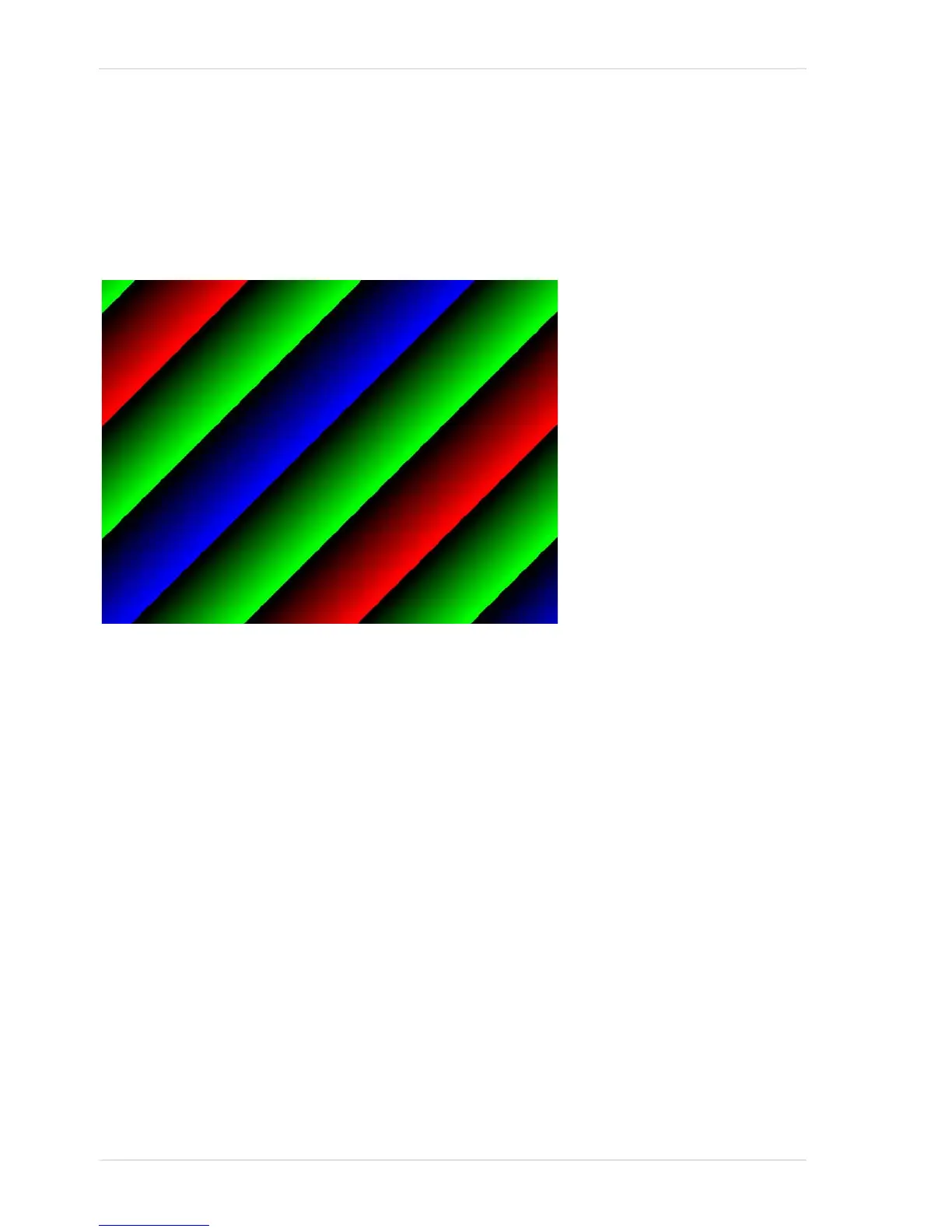

Fig. 94: Test Image Six
