Basler Camera - Page 35

AW00123402000 Specifications, Requirements, and Precautions
Basler ace USB 3.0 25
(11)
Not to Scale
C-mount Thread
Unthreaded
C-mount Lens
(9.6)
Ø 23.1 Max
IR Cut Filter
(color cameras only)
Thread: 9.6 Max
10.8 Max
Filter Holder (mono and color cameras)

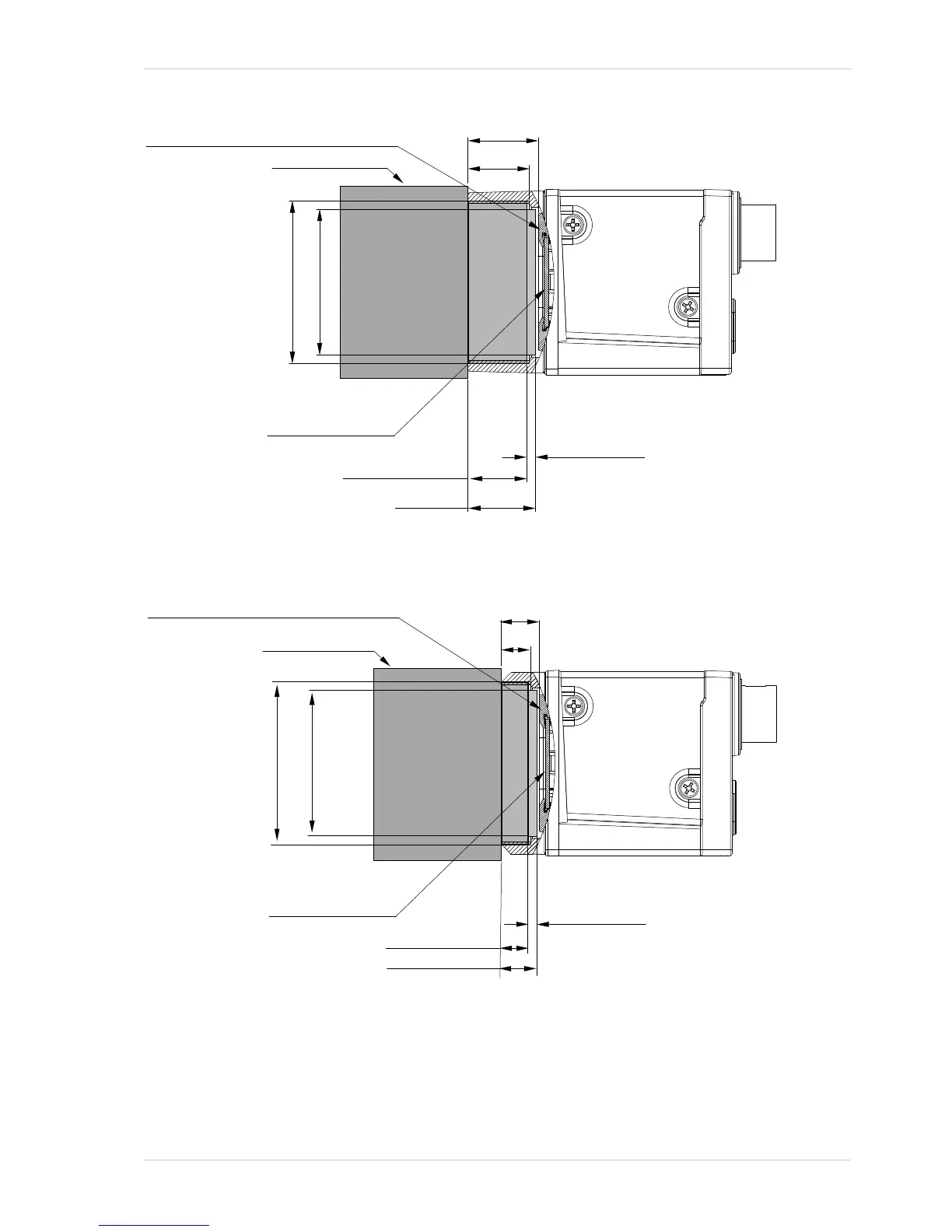

Fig. 21: Maximum Lens Thread Length (Dimensions in mm) for Cameras with the C-mount Lens Adapter
(6)
Not to Scale
CS-mount Thread
Unthreaded
CS-mount Lens
(4.6)
Ø2 3.1 Max
IR Cut Filter
(color cameras only)
Thread: 4.6 Max
5.8 Max
Filter Holder (mono and color cameras)
Fig. 22: Maximum Lens Thread Length (Dimensions in mm) for Cameras with the CS-mount Lens Adapter
