Basler Camera User Manual

Physical Interface AW00123402000
56 Basler ace USB 3.0
For more information about GPIO pin assignments and pin numbering, see Section 5.2.1 on
page 46.
For more information about setting the GPIO line operation, see Section 5.11 on page 65 and
Section 5.12 on page 69.
1
6
3
4
2
5
FPGA Input
+3.3 VDC
(Typical)
Input Buffer
Camera
Your
Gnd
6-pin
Receptacle
Logic Gate

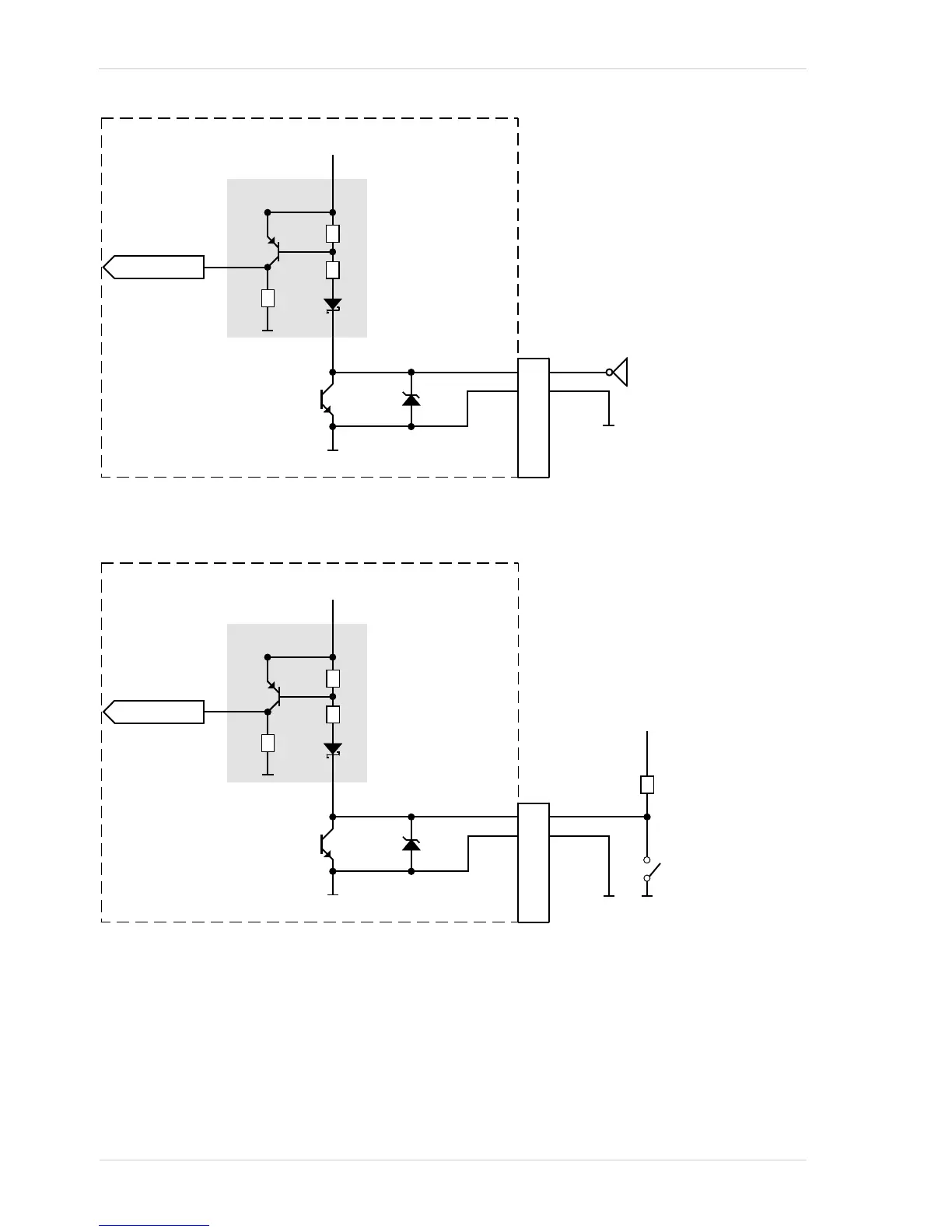

Fig. 34: Direct-coupled GPIO Line Schematic with the GPIO Line Set as an Input and with a Typical External Circuit
Using a Logic Gate (Illustration for Pin 1 as an Example; Simplified)
1
6
3
4
2
5
FPGA Input
+3.3 VDC
(Typical)
Input Buffer
Camera
Your
Gnd
6-pin
Receptacle
+3.3 V ... +5.0 V
Fig. 35: Direct-coupled GPIO Line Schematic with the GPIO Line Set as an Input and with a Typical External Circuit
(Illustration for Pin 1 as an Example; Simplified)
