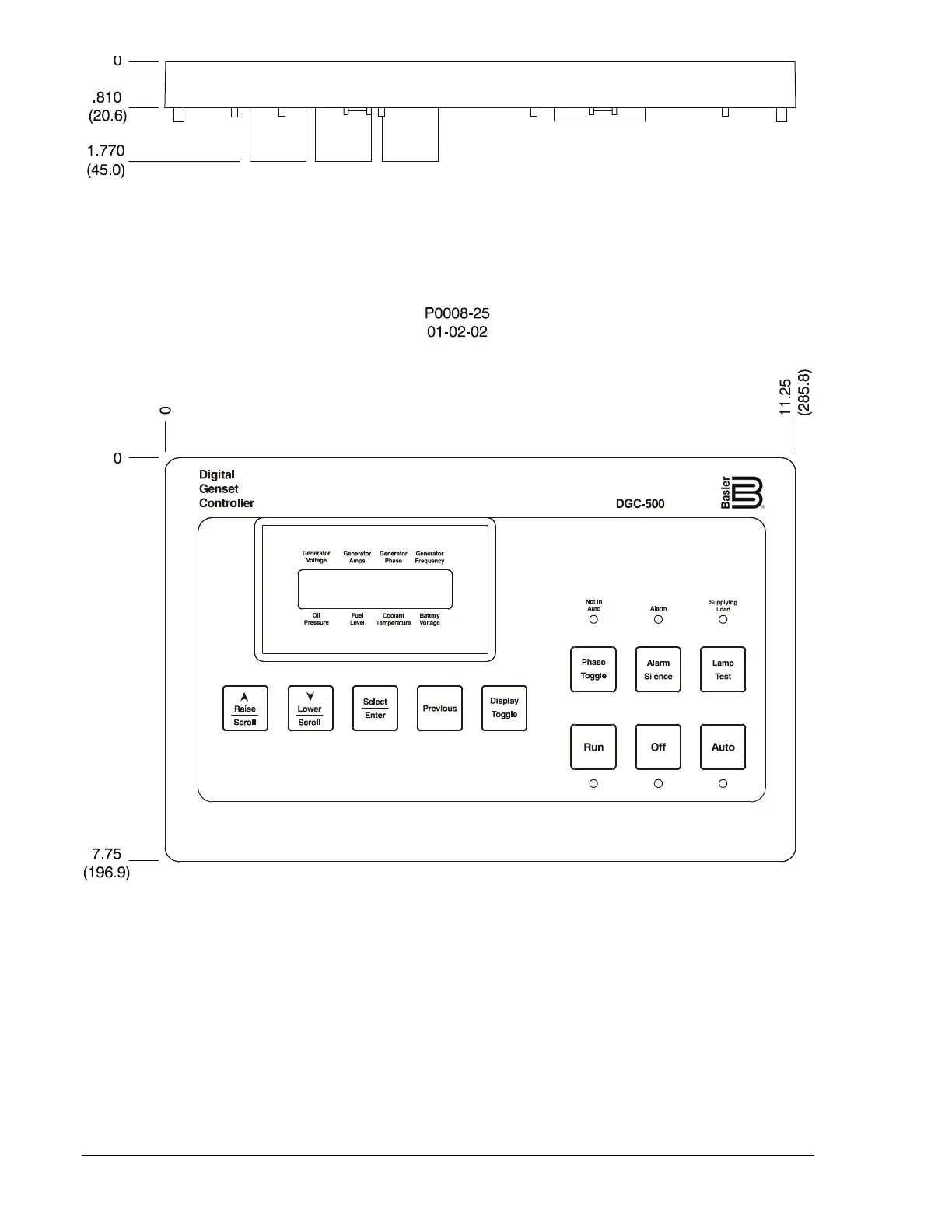

Figure 5-2. DGC-500 Overall Dimensions
DGC-500 Isolator Kit
The optional DGC Isolator Kit provides an economical way to reduce the level of shock and vibration
transmitted from a generator to the DGC-500. The DGC Isolator Kit eliminates the need to mount an
isolator box on top of the generator conduit box and simplifies wiring considerations. Isolator kits are
available with either black- or gray-colored gaskets. Kit part number 9355406100 is supplied with a black
gasket and kit part number 9355406101 is supplied with a gray gasket.
The DGC Isolator Kit provides vibration dampening at frequencies greater than 48 hertz. Above 90 hertz,
vibration transmissibility is less than 10 percent of the input magnitude.
5-2 DGC-500 Installation 9355400990 Rev H
