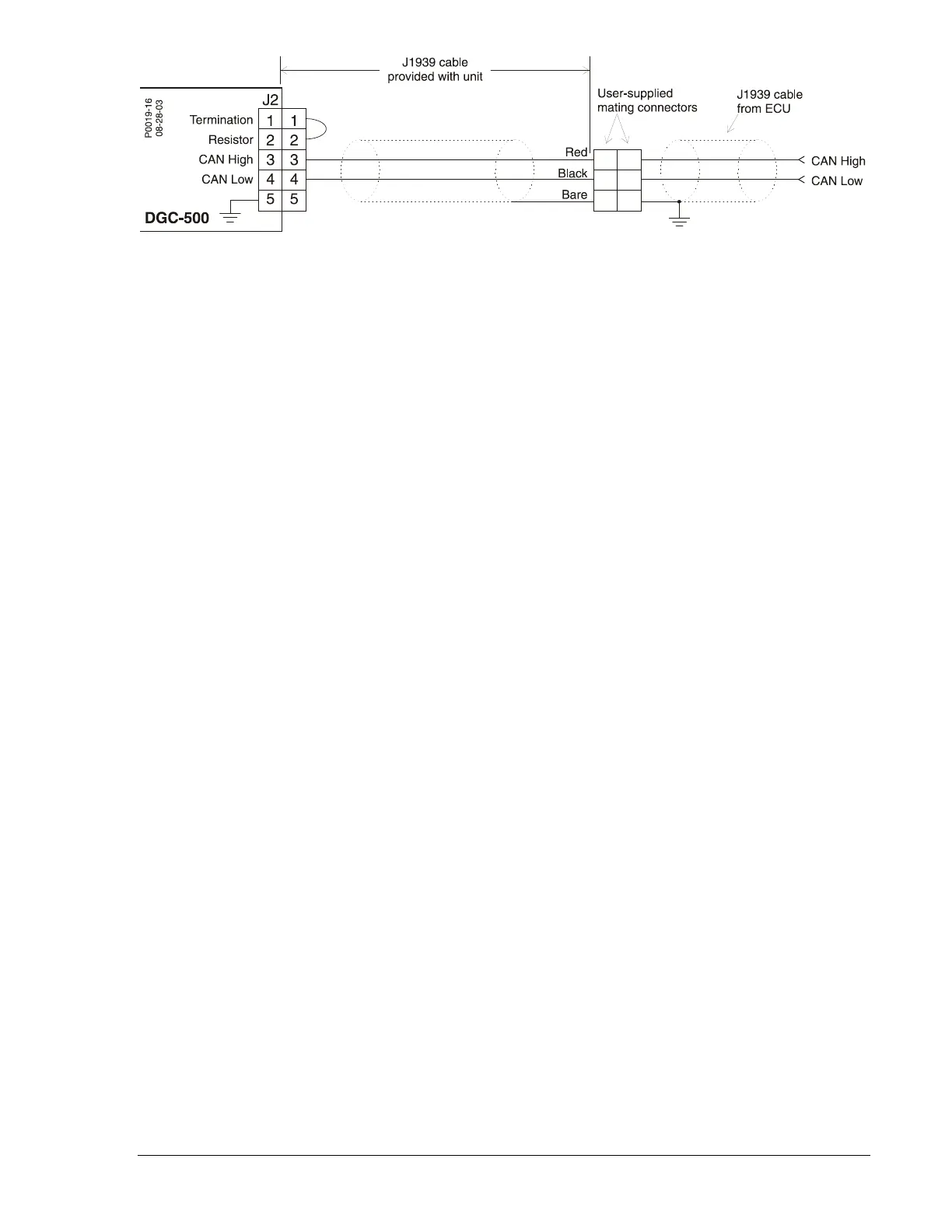

Figure 5-6. Typical DGC-500 CAN Interface Connections
DGC-500 Connections for Typical Applications
Figures 5-7 through 5-9 illustrate typical applications using the DGC-500. Figure 5-7 shows a DGC-500
application using single-phase sensing. Figure 5-8 shows a DGC-500 application using three-phase, delta
sensing. Figure 5-9 shows a DGC-500 application using three-phase, wye sensing.
9355400990 Rev H DGC-500 Installation 5-5
