Standard Features AW00097603000
214 Basler aviator GigE

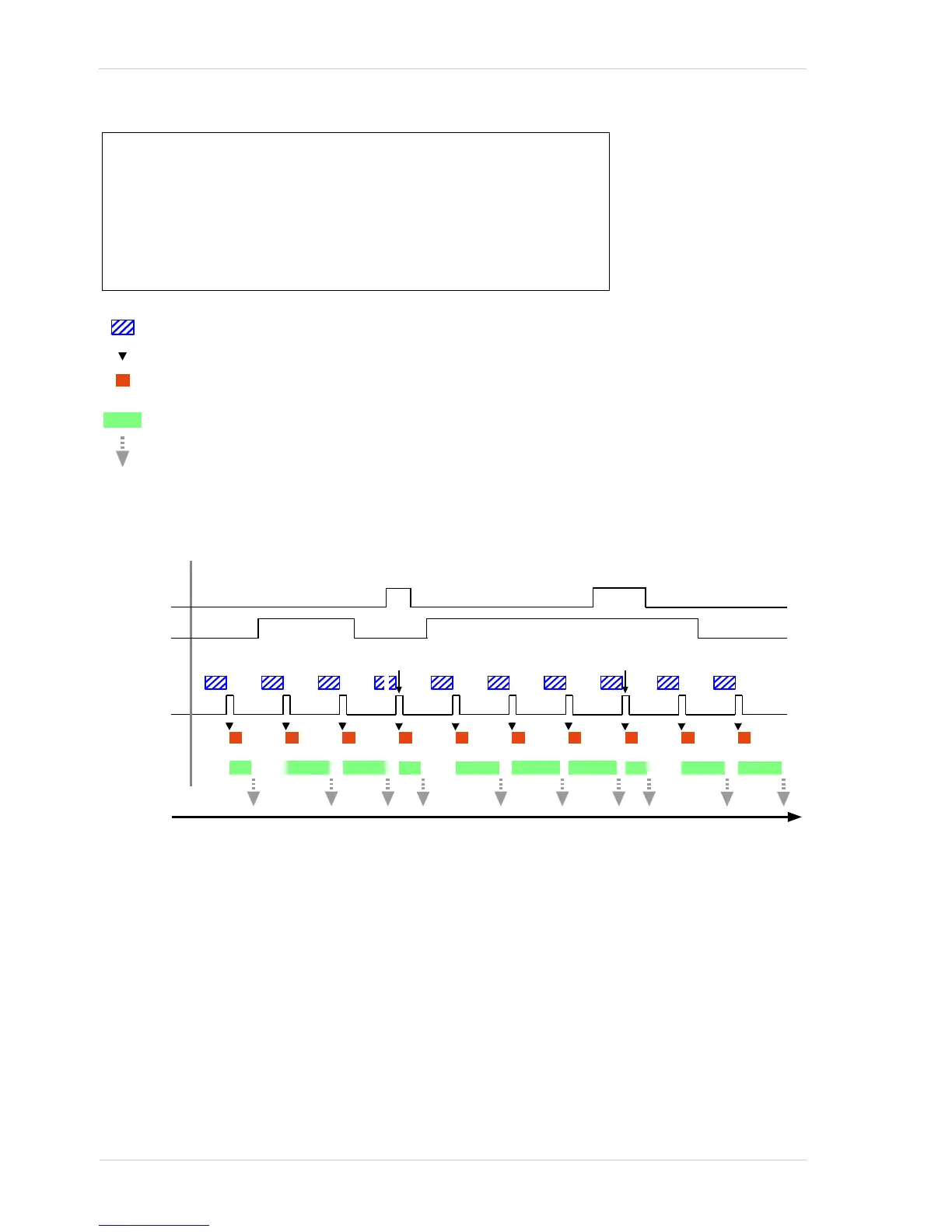

Fig. 49: Sequencer in Controlled Sequence Advance Mode with Line 1 as the Sequence Control Source and
Synchronous Restart Controlled by Line 2
Use Case: Operation in controlled sequence advance mode with Line 1 asthe
sequence control source:
Cycling through the sequence set cycles according to the states of input
line 1 (not set for invert) with two synchronous restarts controlled by input
line 2.
Setting: Sequence Set Total Number = 6
Line 2 (not set for invert) is selected as the source for controlling
restart
Signal Applied
to Input Line 1
(Advance)
= frame exposure and readout
= frame transmission
= camera is waiting for a frame start trigger
= camera selects a sequence set as the current sequence set
= current sequence set that is used for the image acquisition
(the sequence set index number is indicated)
Time
Frame Start
Trigger Signal
Sequencer
Enabled
Sequence Set Cycle
Starts Again
Sequence Set Cycle
Starts Again
Signal Applied
to Input Line 2
(Restart)
To Next Page
