will begin a frame exposure. When frame start is being triggered in this manner, it is important that
you do not attempt to trigger frames at a rate that is greater than the maximum allowed. (There is
a detailed explanation about the maximum allowed frame rate at the end of this chapter.) Frame
start trigger signals applied to the camera when it is not in a "waiting for frame start trigger"
acquisition status will be ignored.
= a frame start trigger signal that will be ignored because the camera
is not in a "waiting for frame start trigger" status
= camera is waiting for an acquisition start trigger signal
= camera is waiting for a frame start trigger signal
= frame exposure and readout
Acquisition Frame Count parameter setting = 3
= frame transmission

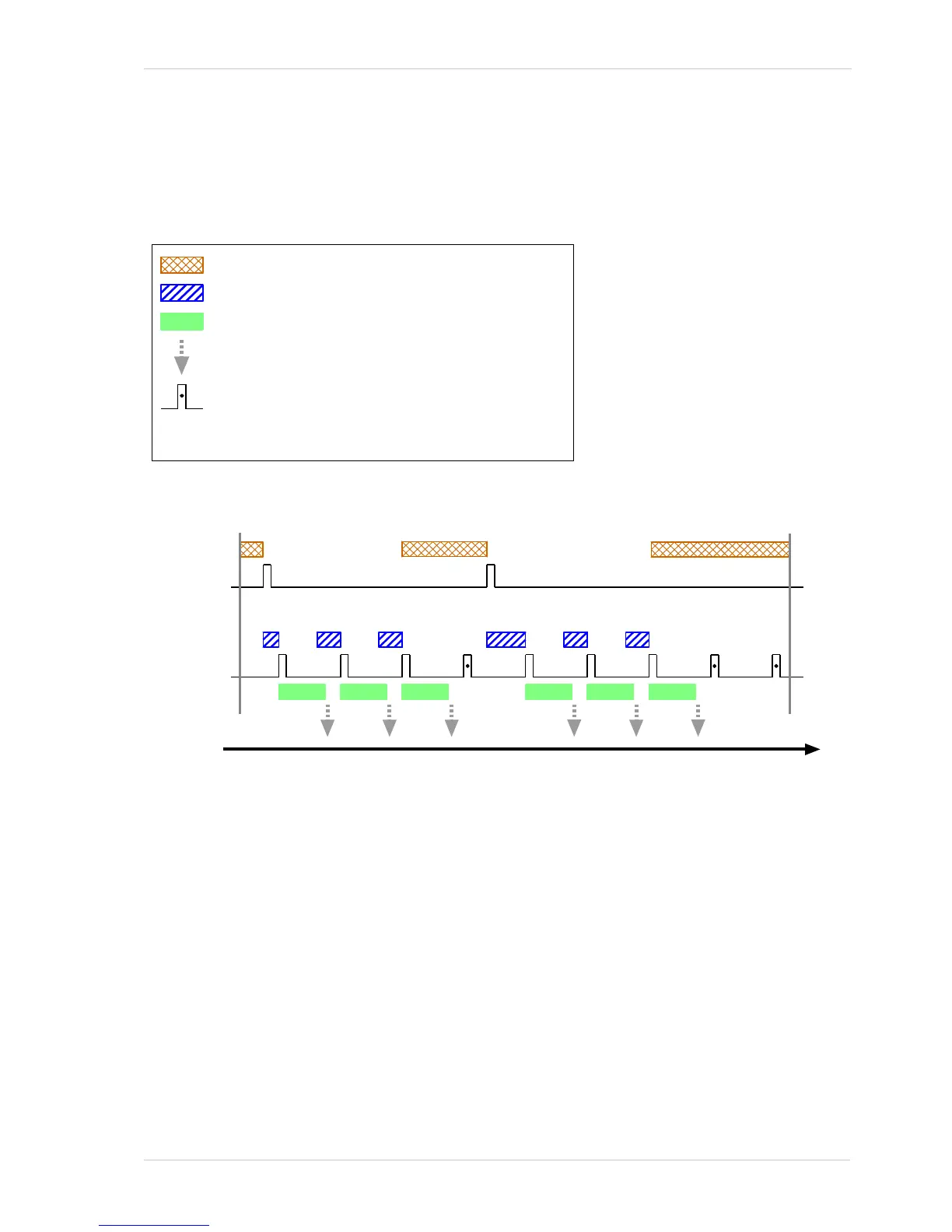

Fig. 20: Acquisition Start and Frame Start Triggering
Frame Start
Trigger Signal
Acquisition Start
Trigger Signal
Time
Acquisition
Start
Command
Executed
Acquisition
Stop
Command
Executed
