3.1.2 Functionality
Measurement results
PLCSensor

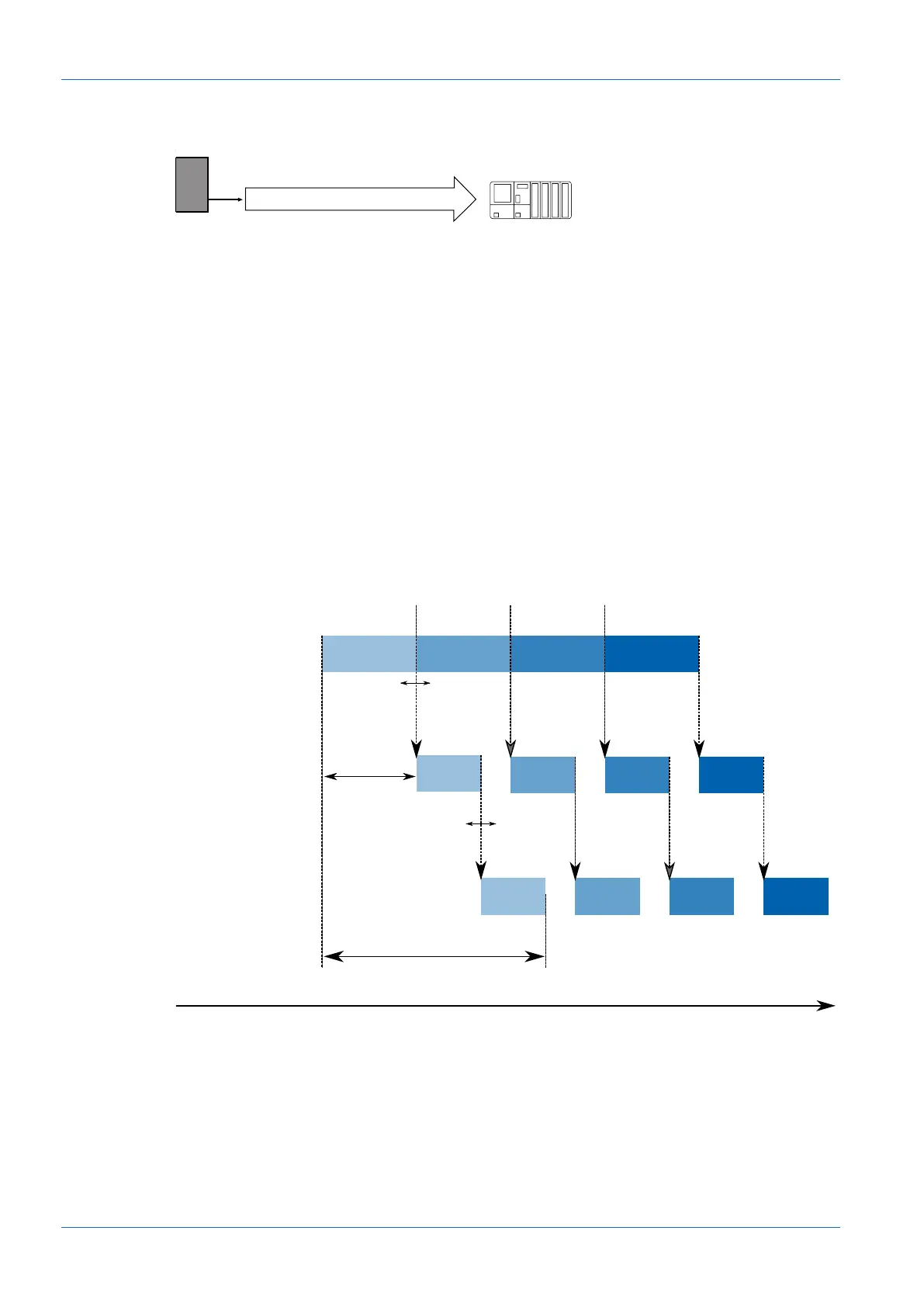

Ill.2: Functionality
n
The sensor features integrated image processing to deliver concrete results (e.g. read
code).
n
Position tracking of evaluation windows.
Measurement frequency, measurement repeat time and response time
The full sensor measurement cycle comprises the following steps:
1. Exposure and read out
2. Calculation
3. Measured value output
Process steps are executed in parallel for increased measurement speed. Below are two sce-
narios: Measurement rate limited by exposure time (fig.1) and ) and measurement rate limited
by calculation time (fig.2)
Single shot
mode (trigger)
Earliest possible
trigger pulse
Exposure &
read out
Calculation
Measured value output
Depending on:
- Exposure time
- Field of view
Measurement
repeat time
Depending on the
measurement tool
Response time
Time
Ill.3: Measurement rate limited by exposure time
