Baumer IDC200 - Ill. 4 Measurement Rate Limited by Calculation Time

Baumer Description | 3
V1.0 | IDC200 Operating Manual 11
Single shot
mode (trigger)
Earliest possible
trigger pulse
Exposure &
read out
Calculation
Measured value output
Depending on:
- Exposure time
- Field of view
Measurement
repeat time
Depending on the
measurement tool
Response time
Time

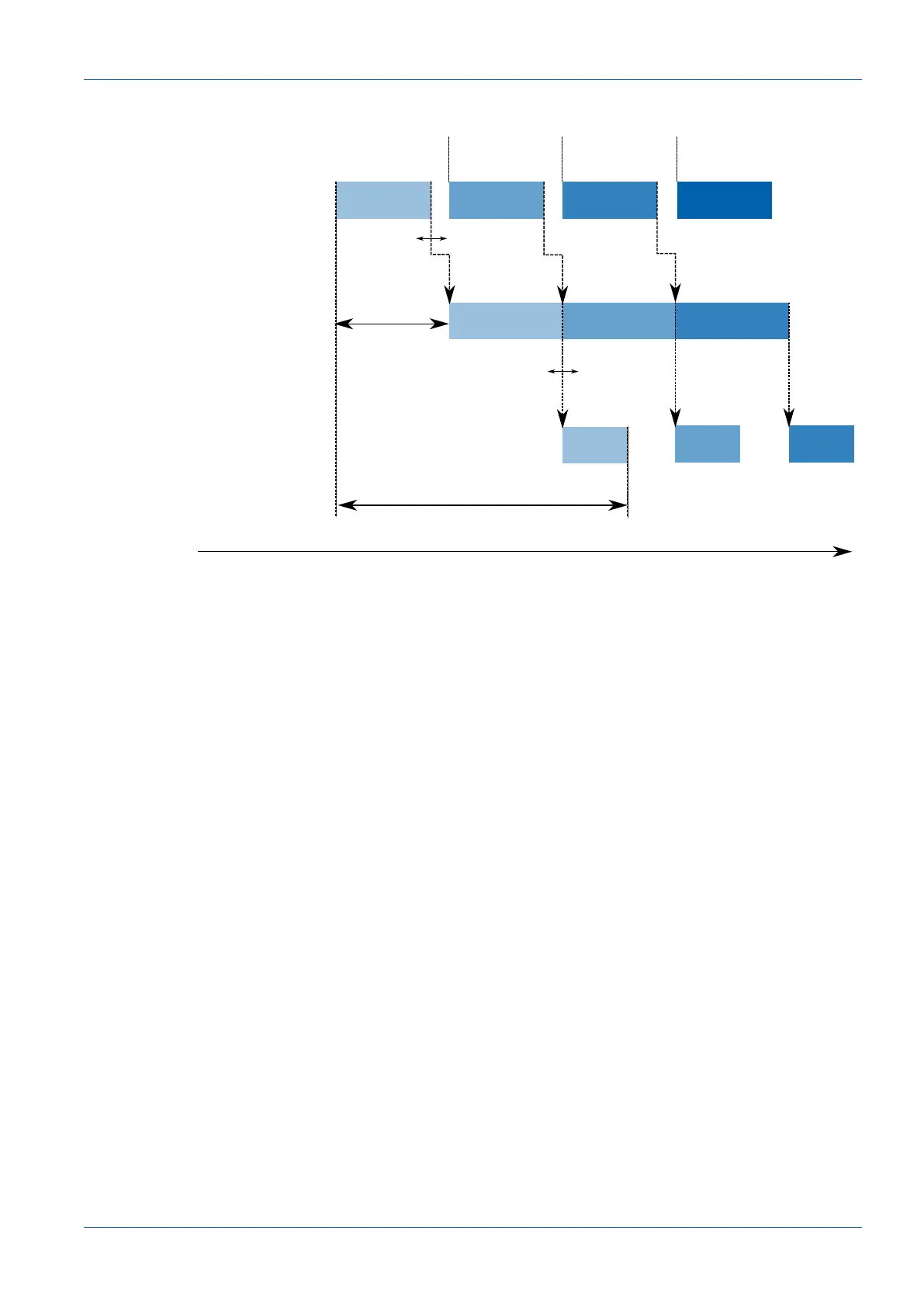

Ill.4: Measurement rate limited by calculation time
The time between two exposures is called measurement repetition time and can be converted
into measurement frequency. The calculated measurement frequency indicates how many mea-
sured values the sensor can output per second.
n
Formula for calculating the measurement frequency:
▪ Measurement frequency [kHz] = 1 / Measurement repeat time [ms]
