3.1.3.2 Field of view / module width - operating distance
For more information on the field of view or module width in relation to working distance see the
following diagrams.

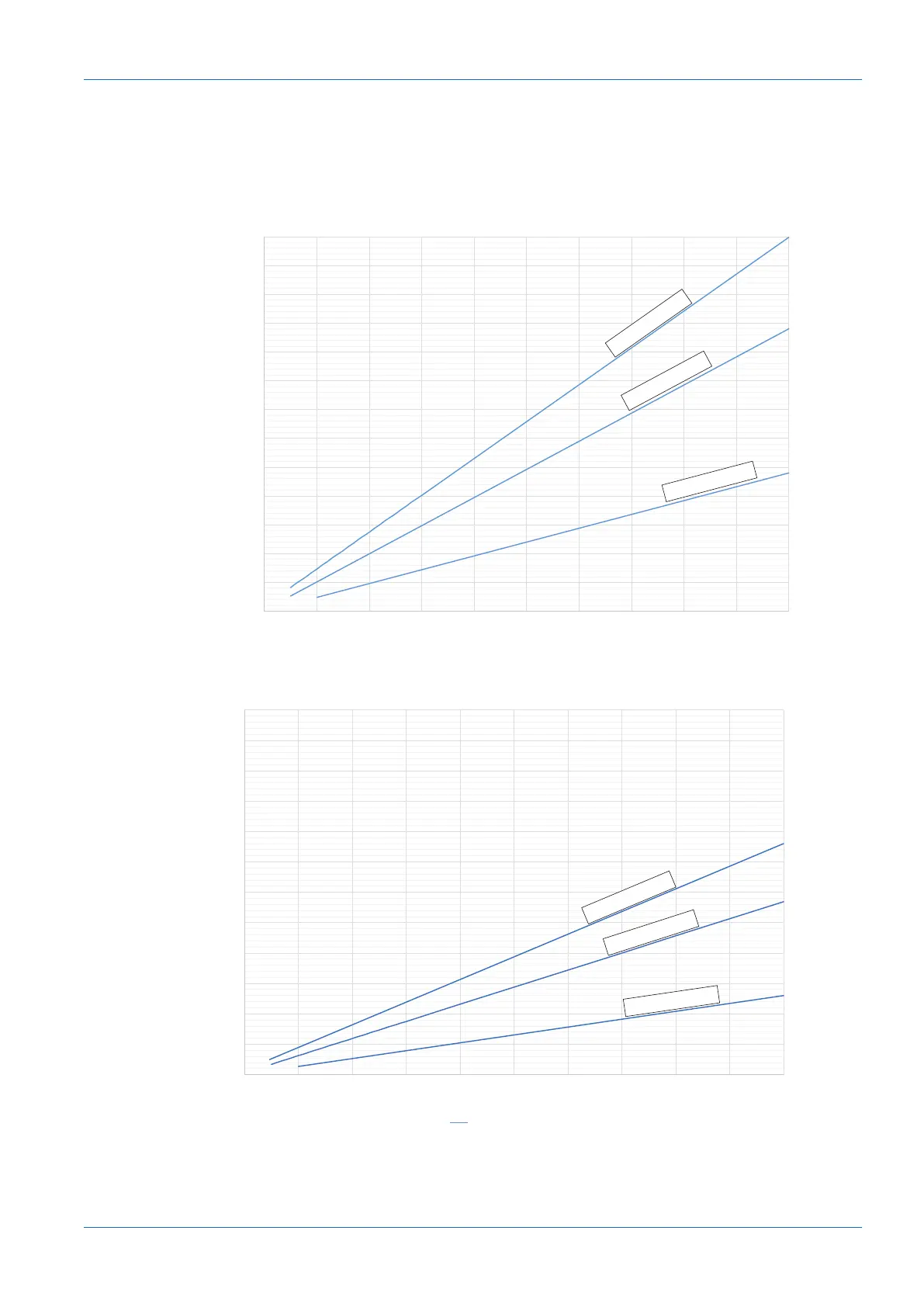

Field of view - operating distance
0
50 x 31
100 x 63
150 x 94
200 x 125
250 x 156
300 x 188
350 x 219
400 x 250
450 x 281
500 x 313
550 x 344
600 x 375
650 x 406
0 100 200 300 400 500 600 700 800 900 1000
Field of View (mm)
Working Distance (mm)
IDC200-W06A
IDC200-W08A
IDC200-W16A
Module width-operating distance (1D code)
0,00
0,10
0,20
0,30
0,40
0,50
0,60
0,70
0,80
0,90
1,00
1,10
1,20
0 100 200 300 400 500 600 700 800 900 1000
Module width (mm)
Operating Distance (mm)
Minimum width Module 1D [µm]
IDC200-W06A
IDC200-W08A
IDC200-W16A
