3.1.3.3 Depth of field

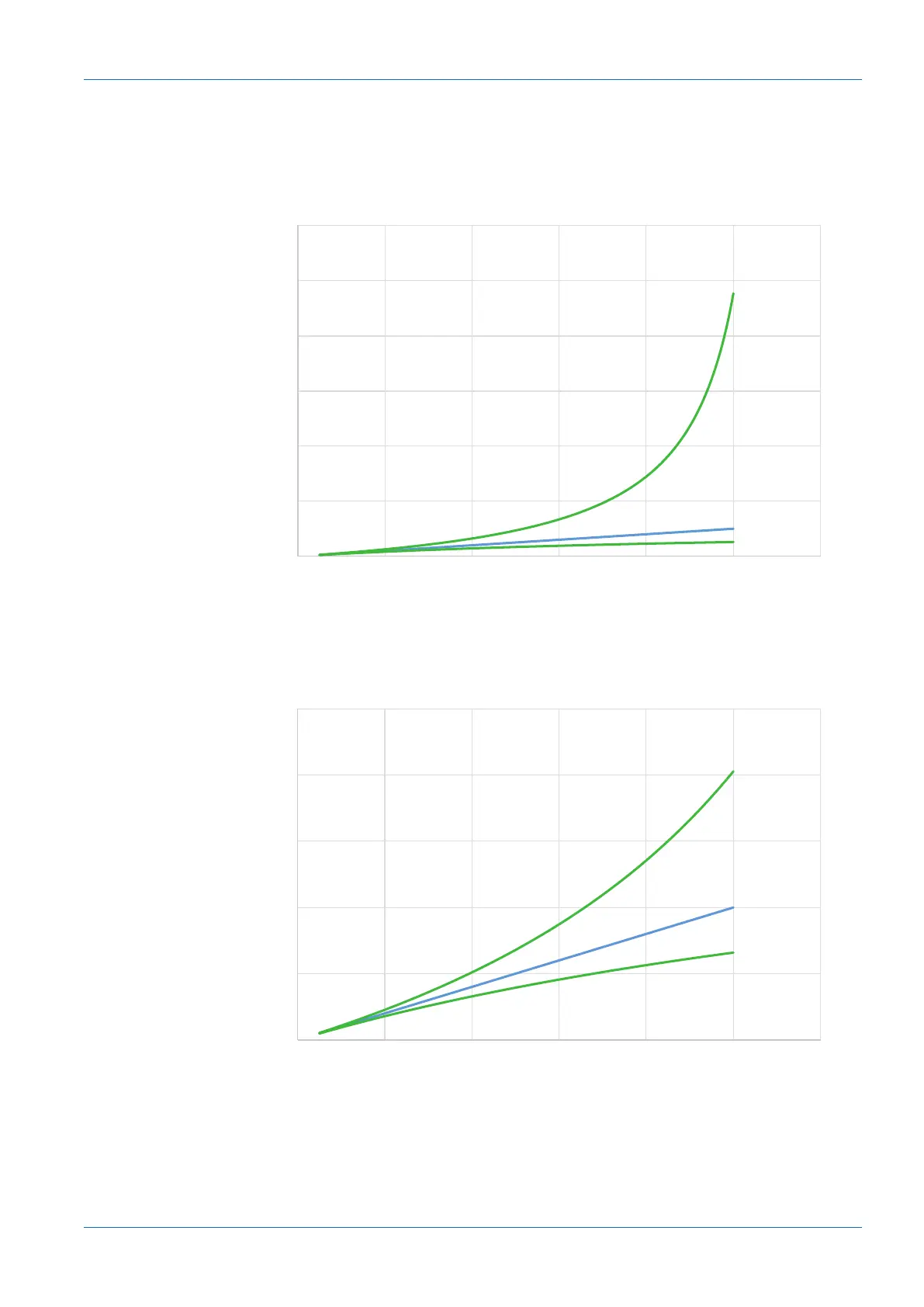

For depth of field and focused area please see the diagrams below.
IDC200-W06A (Focal length: 6 mm / Aperture: 3.5)
0
2000
4000
6000
8000
10000
12000
0 200 400 600 800 1000 1200
Opera ng!distance![mm]!from!housing!front!edge
Focused!area![mm]!
(from!housing!front!edge)
IDC200-W08A (Focal length: 8 mm / Aperture: 3.5)
0
500
1000
1500
2000
2500
0 200 400 600 800 1000 1200
Opera ng!distance![mm]!from!housing!front!edge
Focused!area![mm]!
(from!housing!front!edge)
