8.7 Statistical functions
Various statistical functions are available for job analysis and evaluation in modes Monitoring,
Tools Parametrization, Communication Parametrization and Jobs.
INFO
In mode Parameterization Communication | Data telegram statistic functions are not avail-
able.

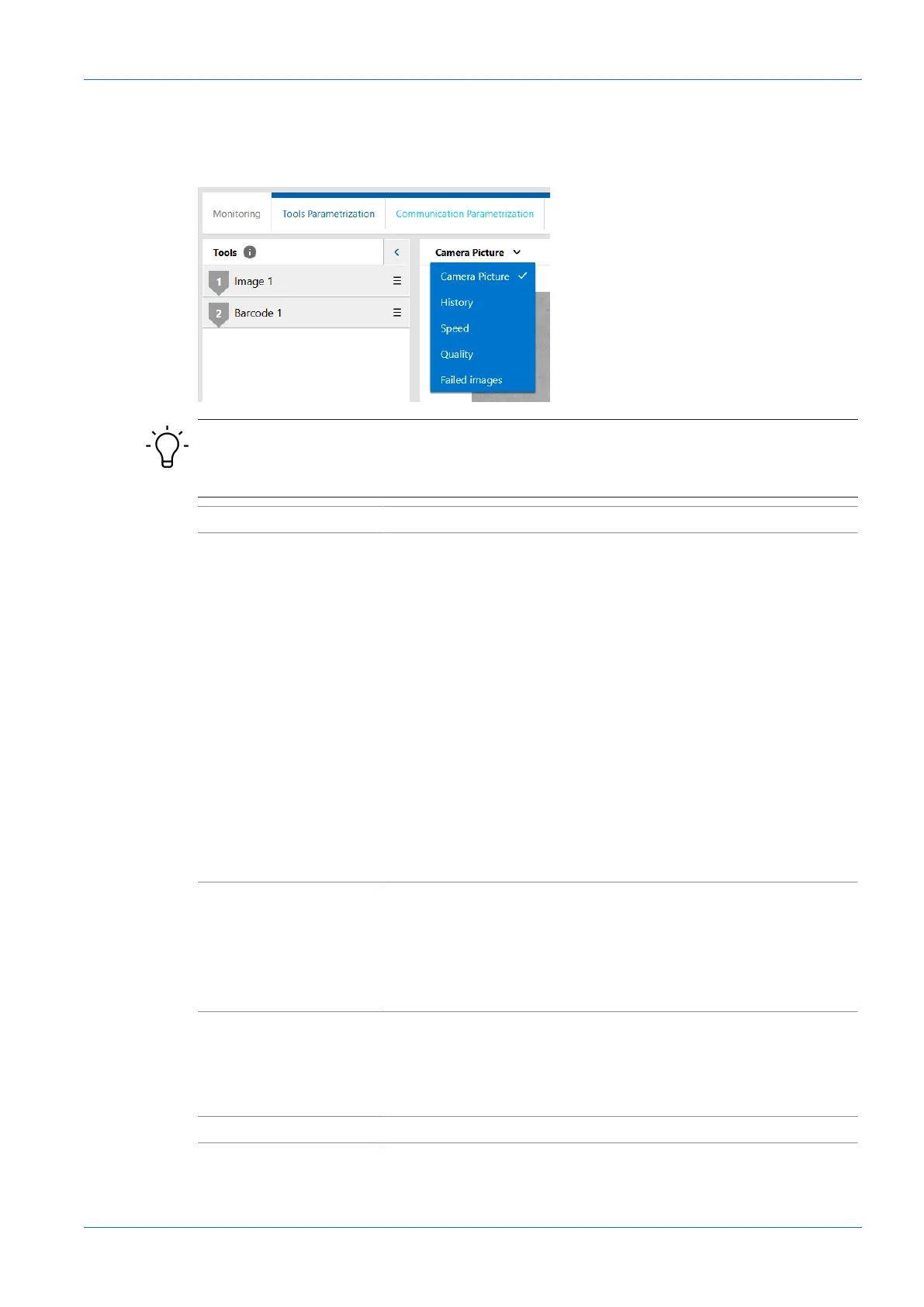

Camera Picture Display of the sensor's live image.
History
n
Index : Image number
n
Tool: parameterized measuring tool
n
Code: Code numbering within a measuring tool, if there are sev-
eral codes on one image. The order is determined by the Sort-
ing during parameterization.
n
Code-Content: code content which has been read
n
Length: Code content length in characters (with spaces)
n
Code-Type: Code type
n
Quality: Provides the code quality, if enabled in measuring tool
n
Size Reserve: Provides the percentage the code is allowed to
be inferior to for being still readable.
n
Position x: Code center in X direction
n
Position y: Code center in Y-direction
n
Rotation: Code shift towards X-axis
Speed
n
Tool: parameterized measuring tool or job
n
Current: currently required processing time for measuring tool
n
Minimum: minimum processing time required for measuring tool
n
Average: Average processing time required by measuring tool
n
Maximum: maximum required computing time for tool
Quality
n
Tool: parameterized job
n
Read: job reading successful
n
Unread: Job reading failures
n
Read Rate: Success rate in %
Failed images
n
Show / save failed images (max.16)
The following functions are available.
