Baumer IDC200 - Ill. 7 Screw-On Points - Side Mounting; Ill. 6 Screwing Points - Rear Mount; Mounting the Sensor

5 | Installation Baumer
32 Operating Manual IDC200 | V1.0

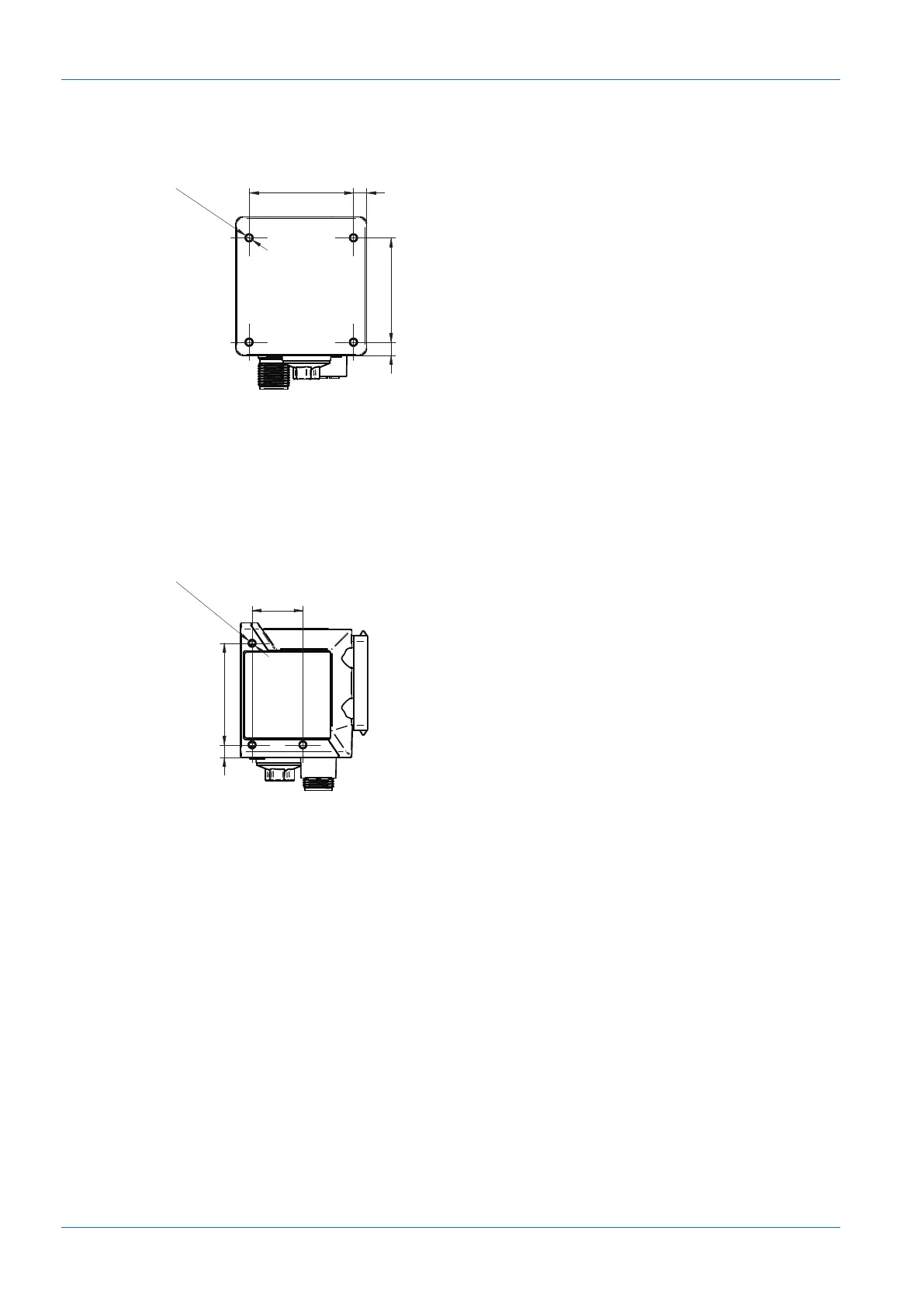

5.4 Mounting the sensor
Rear sensor mounting (preferred installation)
3
4
x
M
40 5
405
Ill.6: Screwing points - rear mount
Condition:
ð M3 screws × (5 + x) (4 pieces) / x = sheet thickness of the screw-on angle
Instruction:
w Screw the sensor in place.Torque: max. 0.8 Nm.
Side mounting
405
20
3
2
x
3
x
M
Ill.7: Screw-on points - side mounting
Condition:
ð M3 screws × (5 + x) (3 pieces) / x = sheet thickness of the screw-on angle
w Screw the sensor in place.Torque: max. 0.8 Nm.
