1 Overview of the Device
1 - 2 Infusomat® compact
plus
P 1.0
EN
For internal use, only
DESCRIPTION OF DEVICE The Infusomat® compact
plus
P is an infusion pump system which
includes an external transportable electronic infusion pump and
pump accessories.
INTENDED USE See the Instructions for Use.
DEVICE OVERVIEW The Infusomat® compact
plus
P is provided with the following
operation-related elements:
MECHANICAL DESIGN The Infusomat® compact
plus
P housing mainly consists of the
bottom part and the upper part. The pump door is screwed to the
housing, bottom part. The pole clamp is mounted on the rear of the
housing. The operating unit (keyboard and display) is integrated
into the front of the housing, upper part.
The processor board is located directly under the cover of the
housing, upper part.

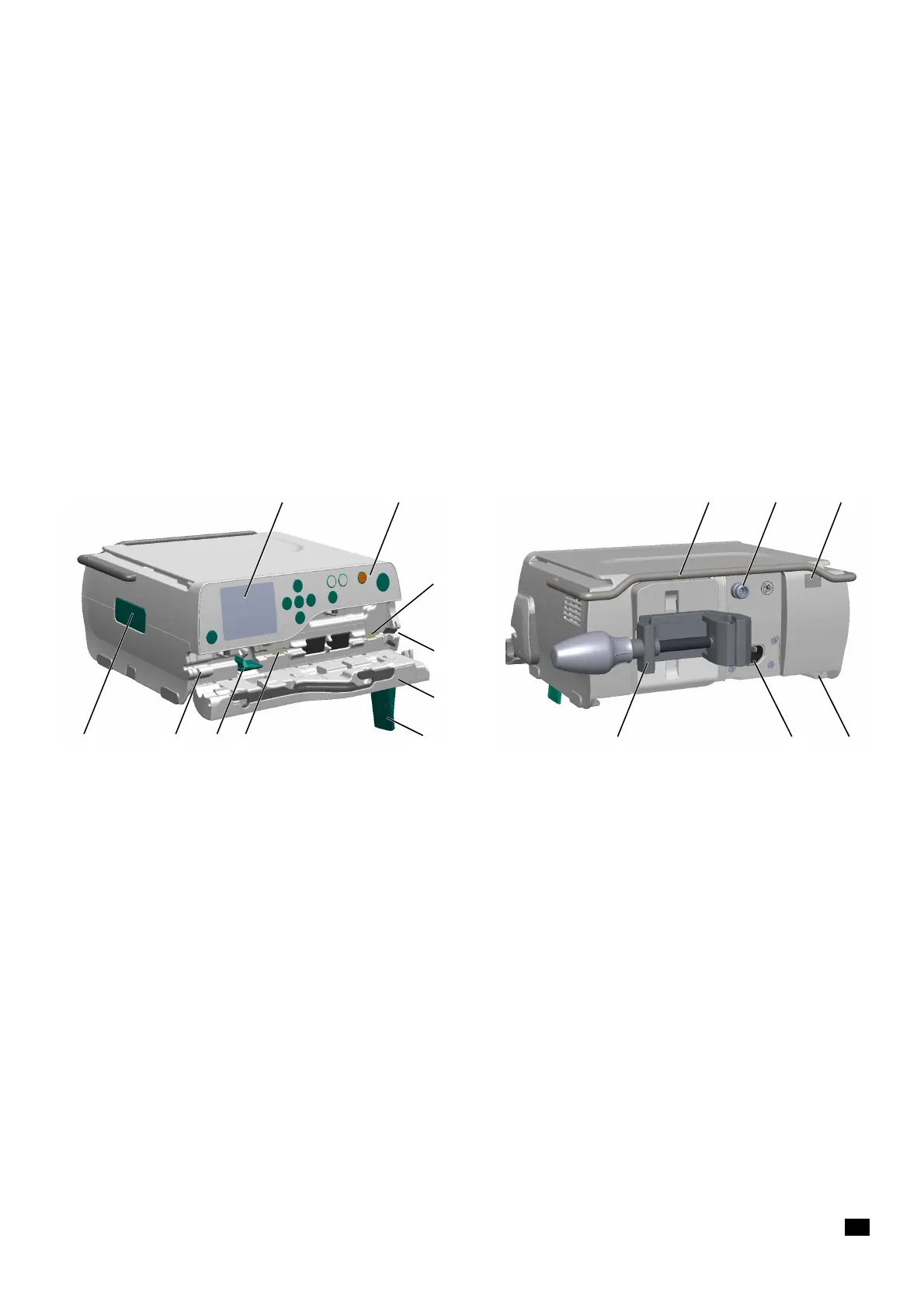

Fig. 1 - 2
1Display
2Keyboard
3 Pressure sensor, upstream
4 Second clamp
5 Pump door
6 Door opener
7 Pressure sensor, downstream
8 Fixation for SHK with push button
9Air sensor
10 Release button
11 Carrying handle
12 Accessory connector
13 IR window
14 Guide rails for connecting pumps
15 Power connector (IEC socket)
16 Pole clamp
5
1 2
610 9 8
3
4
7
11 12 13
16 15 14
