3 Disassembly / Assembly
Infusomat® compact
plus
P 1.0 3 - 15
EN
For internal use, only
5. Tighten the screws of the housing and the housing front with a
torque of 0.8
Nm ± 0.08 Nm (first and second screwing) fol-
lowing the sequence given in Fig. 3 - 17.
3.9 LOUDSPEAKER Designation Ord. No.
Loudspeaker CP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34522001
Disassembly
✓ Unit has been opened.
1. Disconnect the connector of the loudspeaker (Fig. 3 - 18 /
Item 1) on the processor board.
2. Completely unlock the speaker bracket (Fig. 3 - 18 / Item 2)
and tilt it towards the interior of the unit.
3. Remove the loudspeaker with gasket and the speaker bracket.

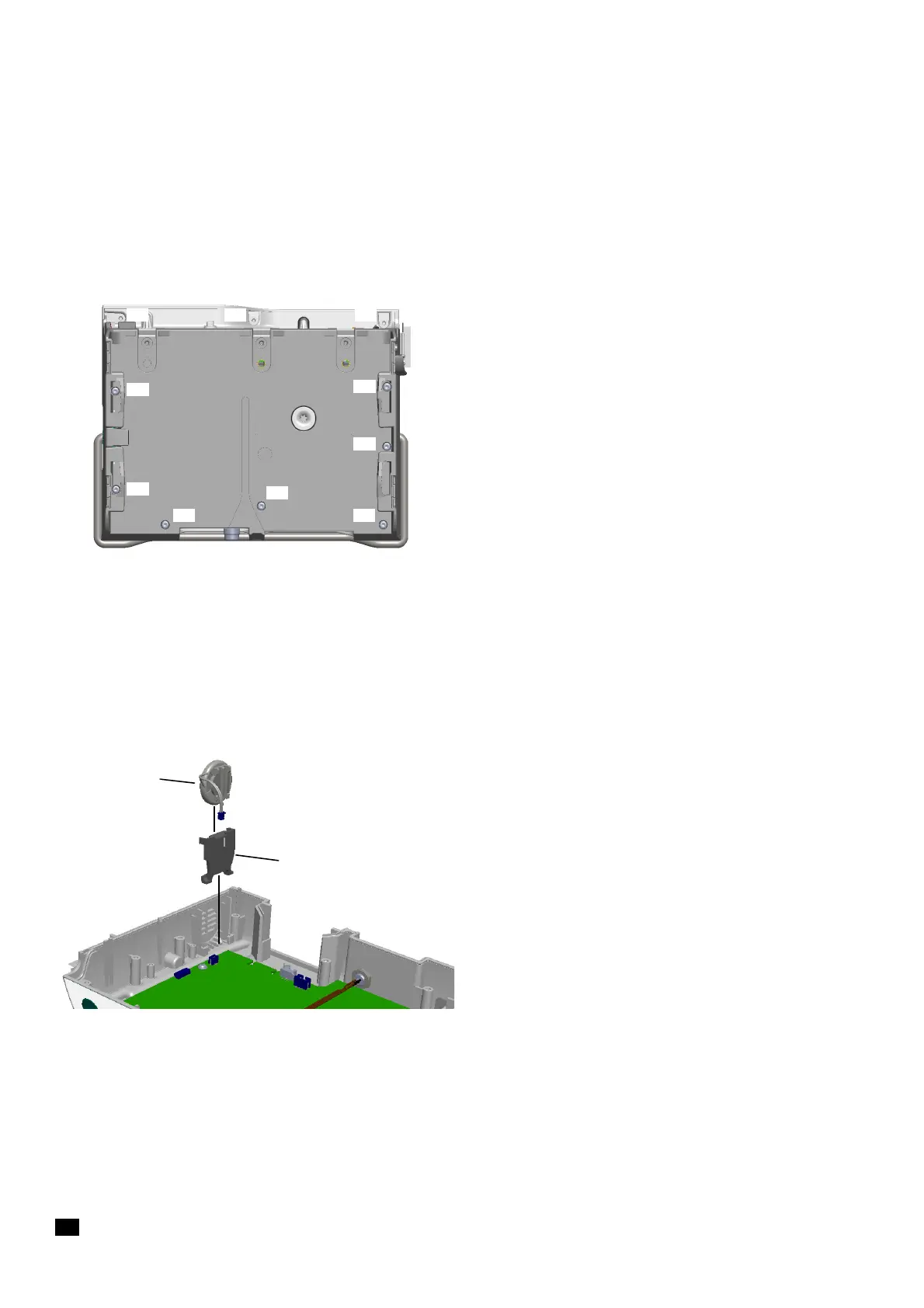

Fig. 3 - 17 Sequence of screwing
1
7
2
6
3
5
4
Front of unit
Rear of unit
10 8 9
Fig. 3 - 18
1 Loudspeaker
2 Speaker bracket
