3 Disassembly / Assembly
3 - 22 Infusomat® compact
plus
P 1.0
EN
For internal use, only
3.14 HOUSING FRONT Designation Ord. No.
SHK ICPP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34522293
(including SHK PCB)
SHK PCB ICPP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34522287
Air sensor ICP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34522204
Pressure sensor ICP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34522203
Sensor PCB ICPP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34522288
Ribbon cable sensors PCB ICP . . . . . . . . . . . . . . . . . . . . . .34774507
Ribbon cable pressure sensor ICP . . . . . . . . . . . . . . . . . . 34774508
Ribbon cable air sensor ICP . . . . . . . . . . . . . . . . . . . . . . . 34774509
ESD wire ICP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34774510
Membrane
(see "Membrane" ➡ p. 3 - 6)
Magnet
(see "Sets of small parts" ➡ p. 3 - 1)
Disassembly
✓ Unit has been opened.
1. Remove the cable tie (Fig. 3 - 28 / Item 3) and unthread the
4-pole cable (Fig. 3 - 28 / Item 2) of the stepper motor (see
arrows).
2. Unthread the ESD wire (Fig. 3 - 28 / Item 1).

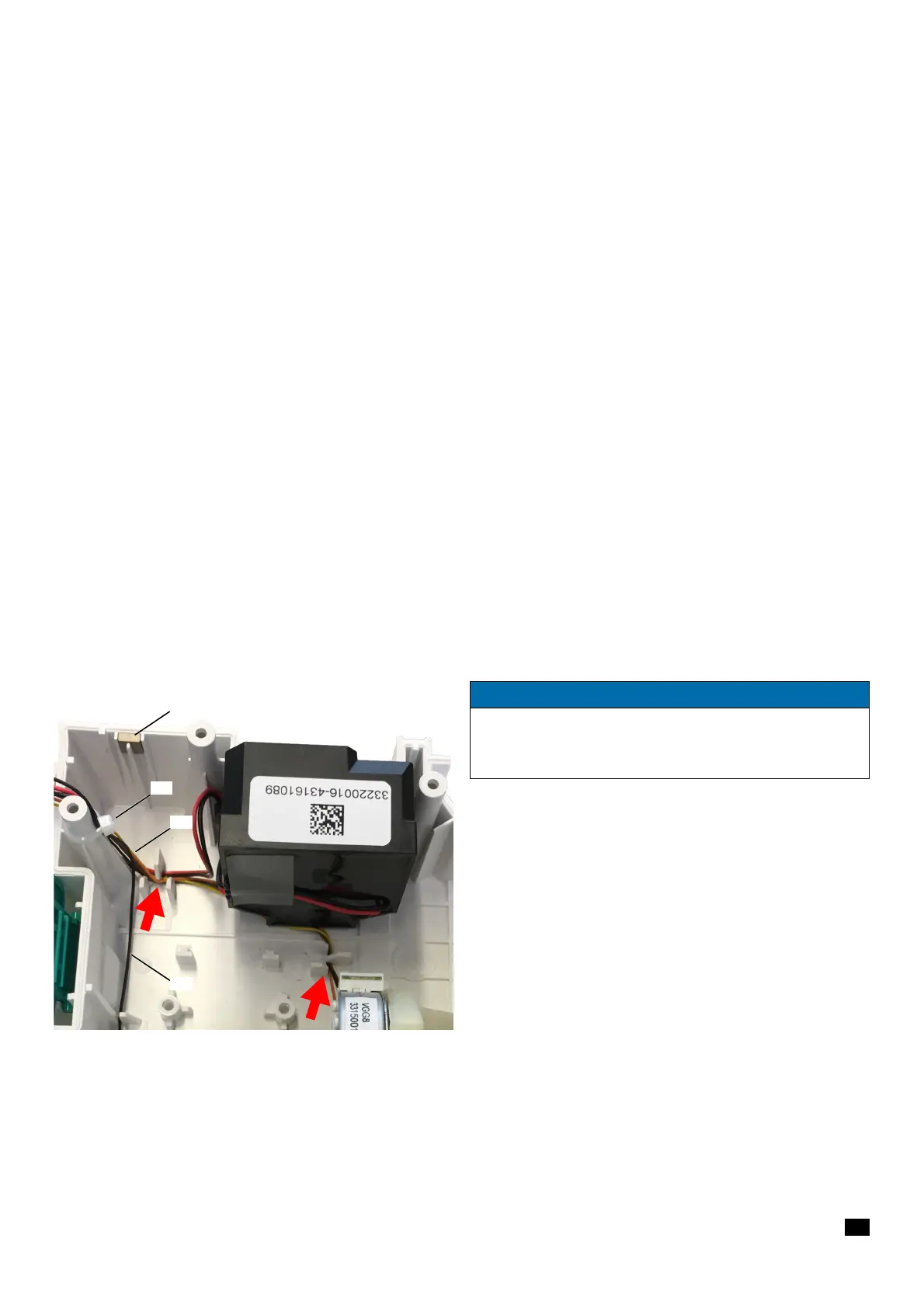

Fig. 3 - 28
1ESD wire
2 Cable of stepper motor, 4-pole
3Cable tie
4Magnet
2
3
4
1
NOTICE
Remove the membrane only if necessary (for example, if it is
damaged or contaminated).
(see "Membrane" ➡ p. 3 - 6)
