3 Disassembly / Assembly
3 - 12 Infusomat® compact
plus
P 1.0
EN
For internal use, only
3.8 OPENING/CLOSING THE UNIT Designation Ord. No.
Screws and cover caps
(see "Sets of small parts" ➡ p. 3 - 1)
Opening the unit
✓ Battery module has been removed.
✓ Pump door has been removed.
1. Unscrew the three screws (Fig. 3 - 12 / Item 1) at the housing
front using a 10IP TORX plus screwdriver.
2. Pierce the seven cover caps (Fig. 3 - 13 / Item 2) at the
housing, bottom part with a small screwdriver or twist gimlet
and remove them.
3. Unscrew the seven screws (Fig. 3 - 13 / Item 1) using a 10IP
TORX plus screwdriver.

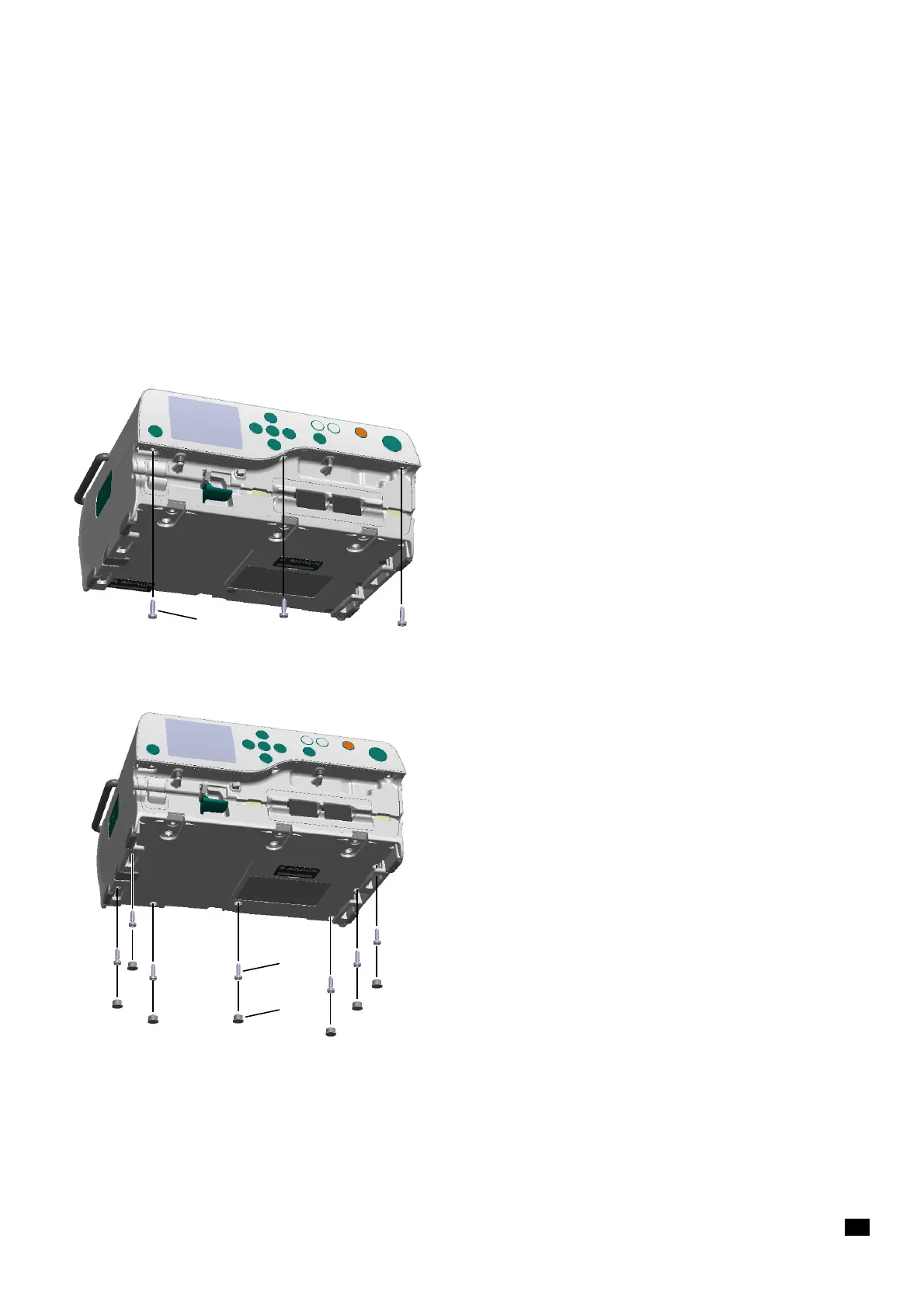

Fig. 3 - 12
1 Screw DELTA PT 30x10 WN 5452
Fig. 3 - 13
1 Screw DELTA PT 30x10 WN 5452
2Cover cap
