3 Disassembly / Assembly
3 - 6 Infusomat® compact
plus
P 1.0
EN
For internal use, only
3.3 MEMBRANE Designation Ord. No.
Membrane ICPP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34522292
Disassembly
1. Open the pump door.
2. Place a small screwdriver at a position where the slides are
retracted and carefully lever out the membrane
(Fig. 3 - 4 /
Item 1).
Assembly
✓ Housing front has been mounted to the housing, bottom part.
1. Check the membrane for damage before mounting to the
pump, and replace it, if necessary.
2. Check for correct seating of the membrane gasket (see
Fig. 3 - 4).
3. Push the membrane in until it audibly latches into position.

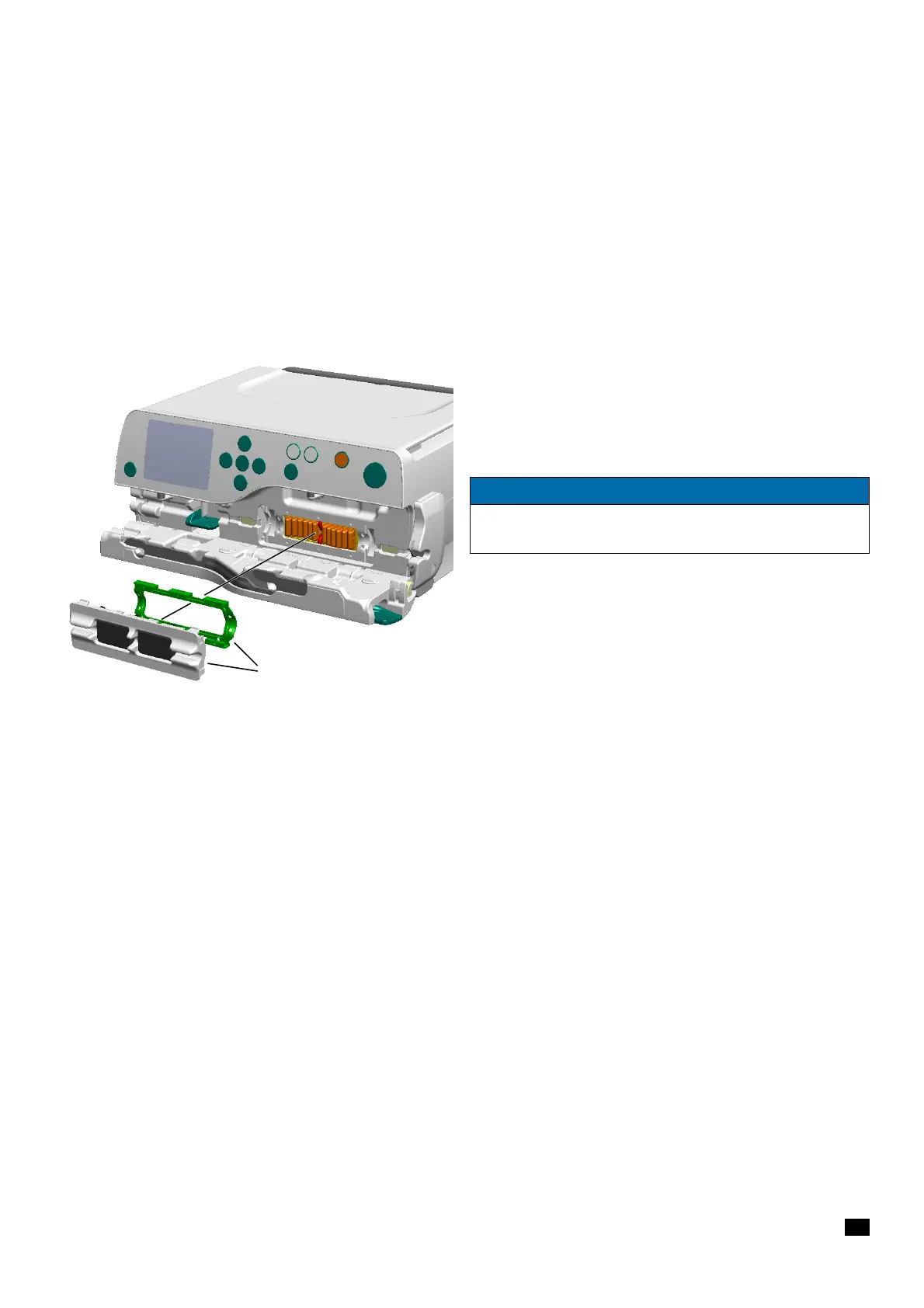

Fig. 3 - 4
1 Membrane with gasket
NOTICE
Remove the membrane only if necessary (for example, if it is
damaged or contaminated).
