bbraun Infusomat Compactplus P - Battery Module

3 Disassembly / Assembly
3 - 8 Infusomat® compact
plus
P 1.0
EN
For internal use, only
3. Tighten the screws with a torque of 0.7 Nm ± 0.07 Nm (first
and second screwing).
Be sure to observe the correct screw sequence (see Fig. 3 - 7).
4. Test function after installation: turn the pole clamp in all direc-
tions (4x90°) and check for correct latching.
3.5 BATTERY MODULE Designation Ord. No.
Battery module CP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34522005
Disassembly
✓ Pole clamp has been removed.
1. Remove the battery (Fig. 3 - 8 / Item 1).
2. Pull off the 3-pole battery cable from the processor board.

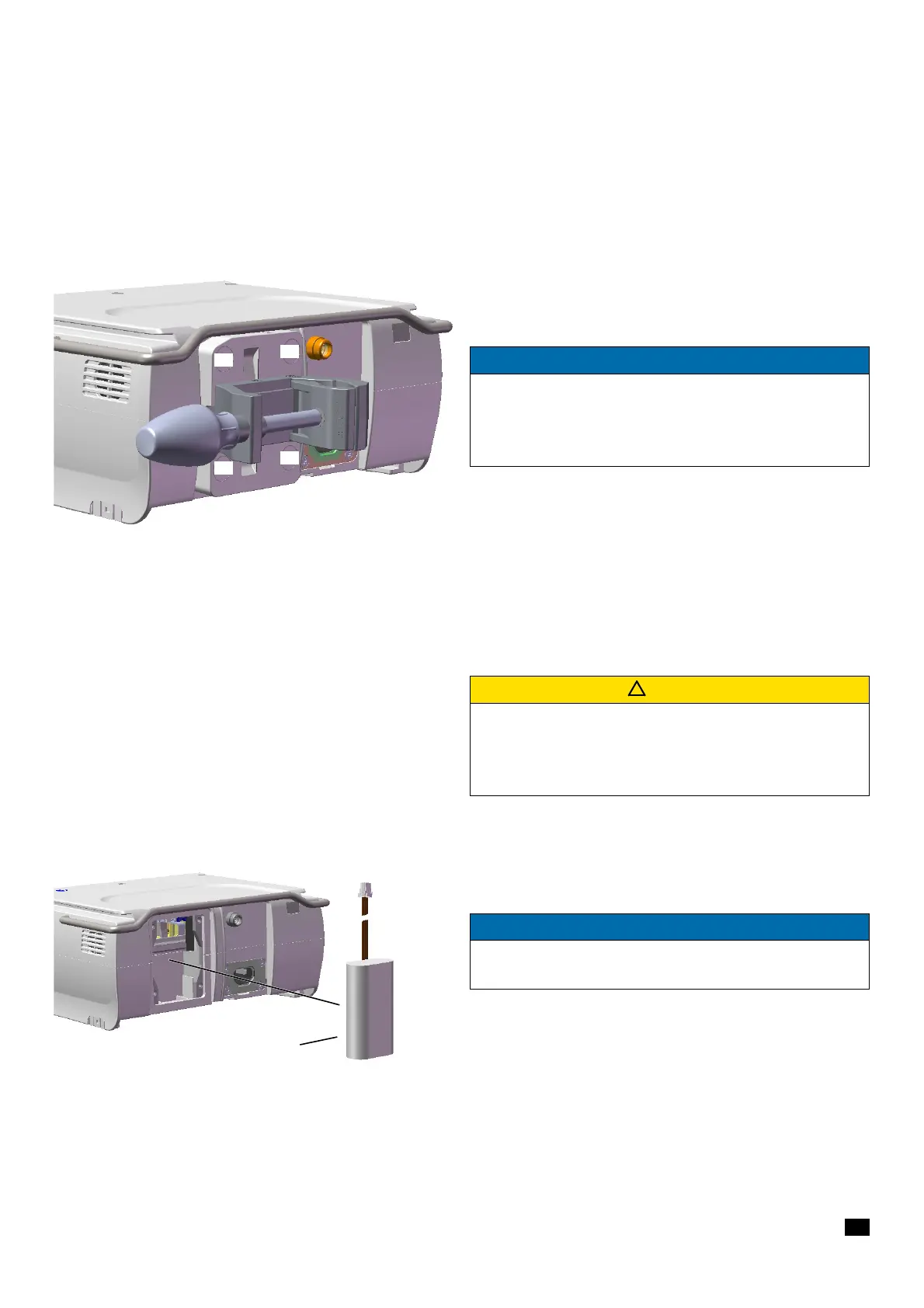

Fig. 3 - 7
4
1
2
3
NOTICE
Use new screws whenever the pole clamp has been removed.
Remove residues from old precote material with a 4.3
mm / 90°
countersink. Fix the new screws with Loctite 243 if not coated
with precote.
CAUTION
!
Replacement with a wrong battery type may result in excessive
temperatures, fire or explosion.
Risk of injury to the patient or personnel!
■ Only original B. Braun battery modules must be used.
Fig. 3 - 8
1 Battery module
1
NOTICE
To avoid tearing do not pull at the cable. Always grasp the con-
nector and pull. Use grippers if necessary.
