bbraun Infusomat Compactplus P - Second Clamp

3 Disassembly / Assembly
3 - 10 Infusomat® compact
plus
P 1.0
EN
For internal use, only
3.6 SECOND CLAMP Designation Ord. No.
Second clamp ICPP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34522286
Screw and cover cap
(see "Sets of small parts" ➡ p. 3 - 1)
Disassembly
✓ Pump door is open.
1. Pierce the cover cap (Fig. 3 - 10 / Item 1) with a small screw-
driver or twist gimlet and remove it.
2. Remove the screw (Fig. 3 - 10 / Item 2) using a 10IP TORX plus
screwdriver.
3. Slightly lift the second clamp (Fig. 3 - 10 / Item 3) toward the
top and remove it to the side.
Assembly
✓ Unit is closed.
1. Tighten the screw with a torque of 0.65 Nm ± 0.1 Nm (first and
second screwing).

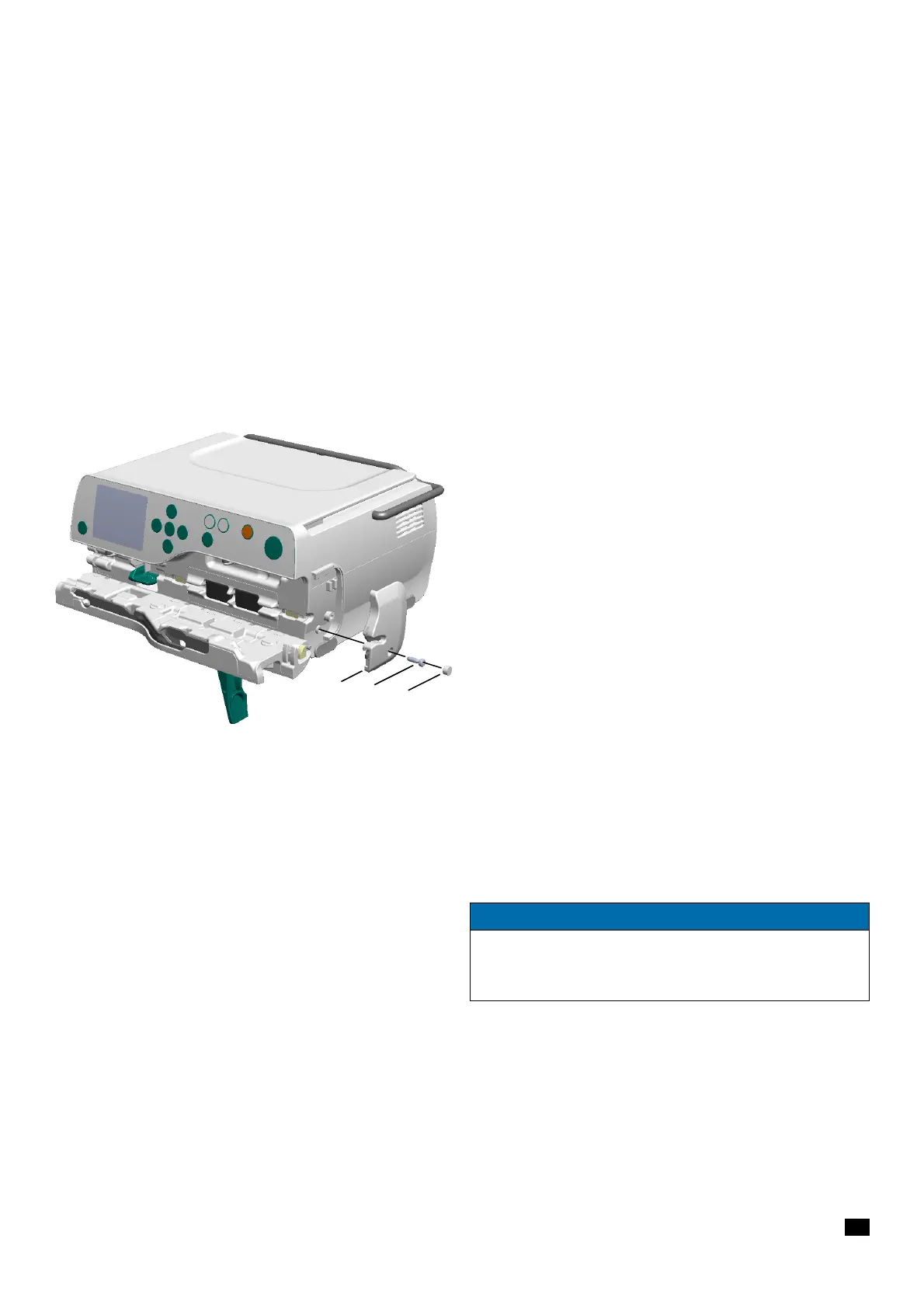

Fig. 3 - 10
1Cover cap
2 Screw DELTA PT 30x10 WN 5452
3 Second clamp
2
1
3
NOTICE
If the second clamp ICPP has to be replaced, the transport
bracket must be removed from the new spare part before it is
mounted to the pump.
