bbraun Infusomat Compactplus P - Gasket for Rubber Connector

3 Disassembly / Assembly
Infusomat® compact
plus
P 1.0 3 - 5
EN
For internal use, only
3.2 GASKET FOR RUBBER CONNECTOR Designation Ord. No.
Gasket for rubber connector CP. . . . . . . . . . . . . . . . . . . . .34522010
Screws
(see "Sets of small parts" ➡ p. 3 - 1)
Disassembly
1. Unscrew the four screws (Fig. 3 - 3 / Item 1) using a 10IP TORX
plus screwdriver.
2. Remove the gasket (Fig. 3 - 3 / Item 2).
Assembly
✓ Power supply is installed in the housing, bottom part.
1. Attach the gasket with the correct orientation.
2. Tighten the screws with a torque of 0.75 Nm ± 0.1 Nm.

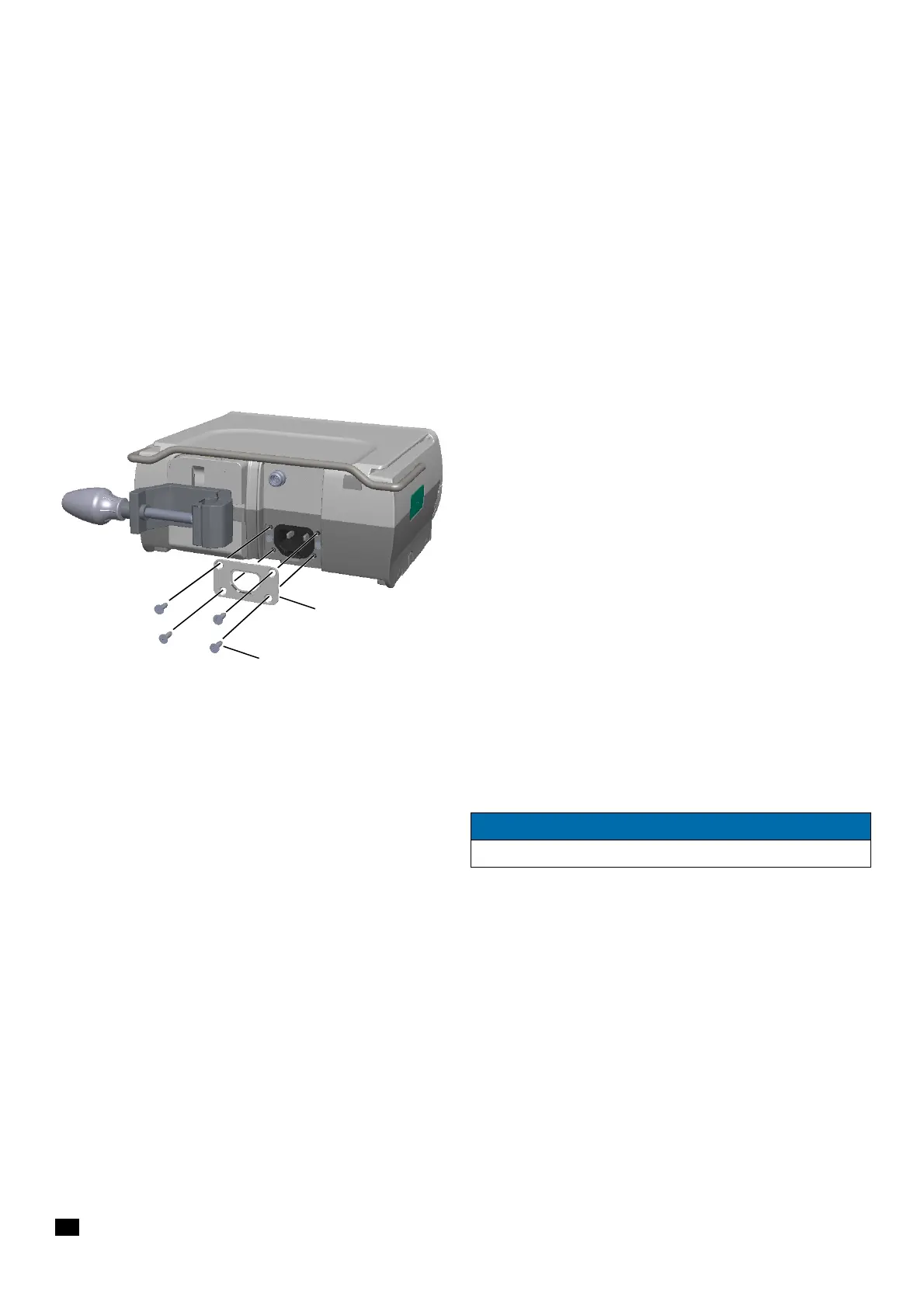

Fig. 3 - 3
1 Screw DELTA PT 30x9 WN 5454
2Gasket
1
2
NOTICE
Use a new gasket whenever the gasket has been removed.
