3 Disassembly / Assembly
3 - 4 Infusomat® compact
plus
P 1.0
EN
For internal use, only
Zero force insertion connector
3.1 HOUSING FOOT Designation Ord. No.
Housing foot
(see "Sets of small parts" ➡ p. 3 - 1)
Disassembly

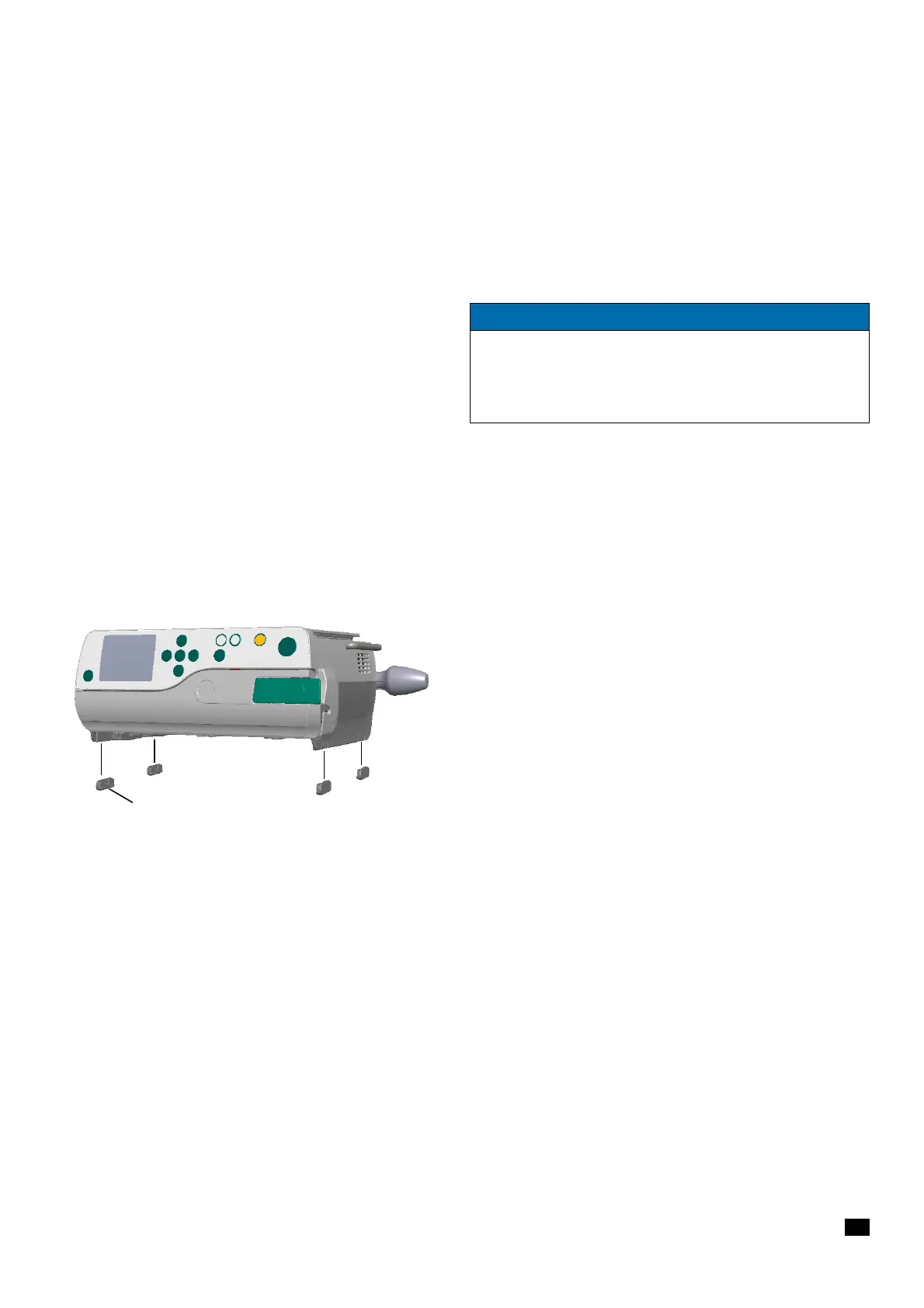

1. Pull the four housing feet (Fig. 3 - 2 / Item 1) out of the lower
part of the housing.
Assembly
1. Push the housing feet into the guides in the lower part of the
housing.
NOTICE
Make sure that the ribbon cable is centered between the guides
of the connector when the zero force insertion connector is
locked. Check the lock and that the ribbon cable is correctly
seated before continuing with installation.
