3 Disassembly / Assembly

3 - 20 Infusomat® compact

plus

P 1.0

For internal use, only

Assembly

1. Guide the ribbon cable through the slot (Fig. 3 - 25 / Item 1) in

the display board.

2. Position the display board upright between the housing wall

and spigot

(Fig. 3 - 25 / Item 2).

3. Establish all cable connections.

4. Tighten the screws with a torque of 0.27 Nm ± 0.03 Nm (first

and second screwing).

3.13 HOUSING, UPPER PART Designation Ord. No.

Housing, upper part ICPP . . . . . . . . . . . . . . . . . . . . . . . . . 34522291

with keypad (devices with serial number 1199 and lower)

Housing, upper part ICPP . . . . . . . . . . . . . . . . . . . . . . . . . 34522290

with keypad and display

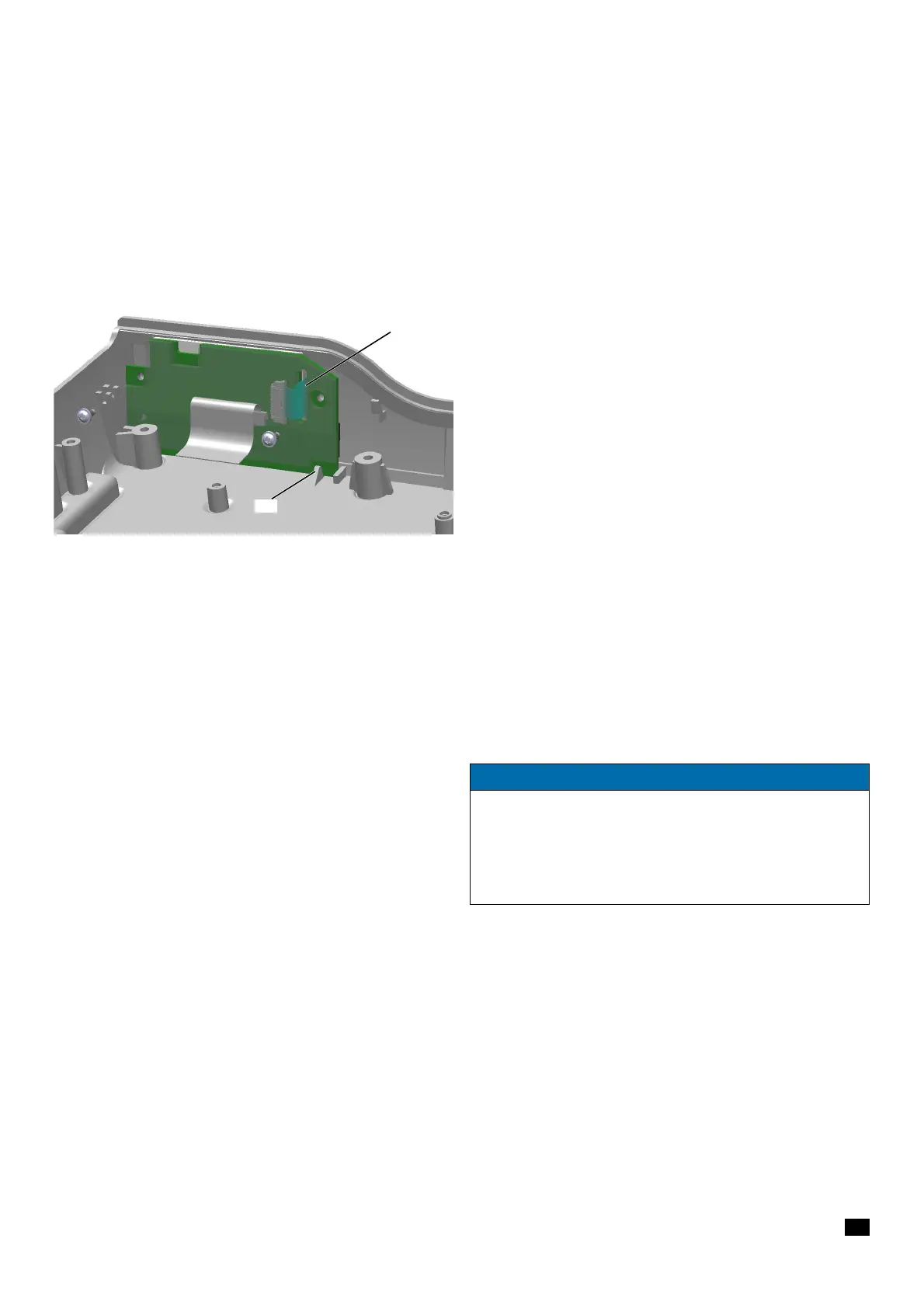

Fig. 3 - 25

1 Slot for ribbon cable for membrane keyboard

2 Catch for display board

NOTICE

Starting with serial number 1200 of the device, the display board

with display is affixed to the housing, upper part with keypad. If

one of these components is defective, the housing upper part

including keypad and display board with display has to be

replaced with the corresponding spare part, ord. no 34522290.
