ADJUSTING THE MECHANICAL PRESSURE
The mechanical pressure can be adjusted with a T30 TORX
screwdriver inserted in the opening of the housing, bottom part
(Fig. 2 - 1 / Item 1). Opening the unit is not required.
1. If the pressure is too high during the mechanical pressure test,
reduce the pressure by rotating clockwise
(Fig. 2 - 1 / Item 3).
If the pressure is too low, increase the pressure by rotating
counterclockwise
(Fig. 2 - 1 / Item 2).
2. Repeat the mechanical pressure test after adjustment.
3. If the pressure is within limits, seal the plug again.

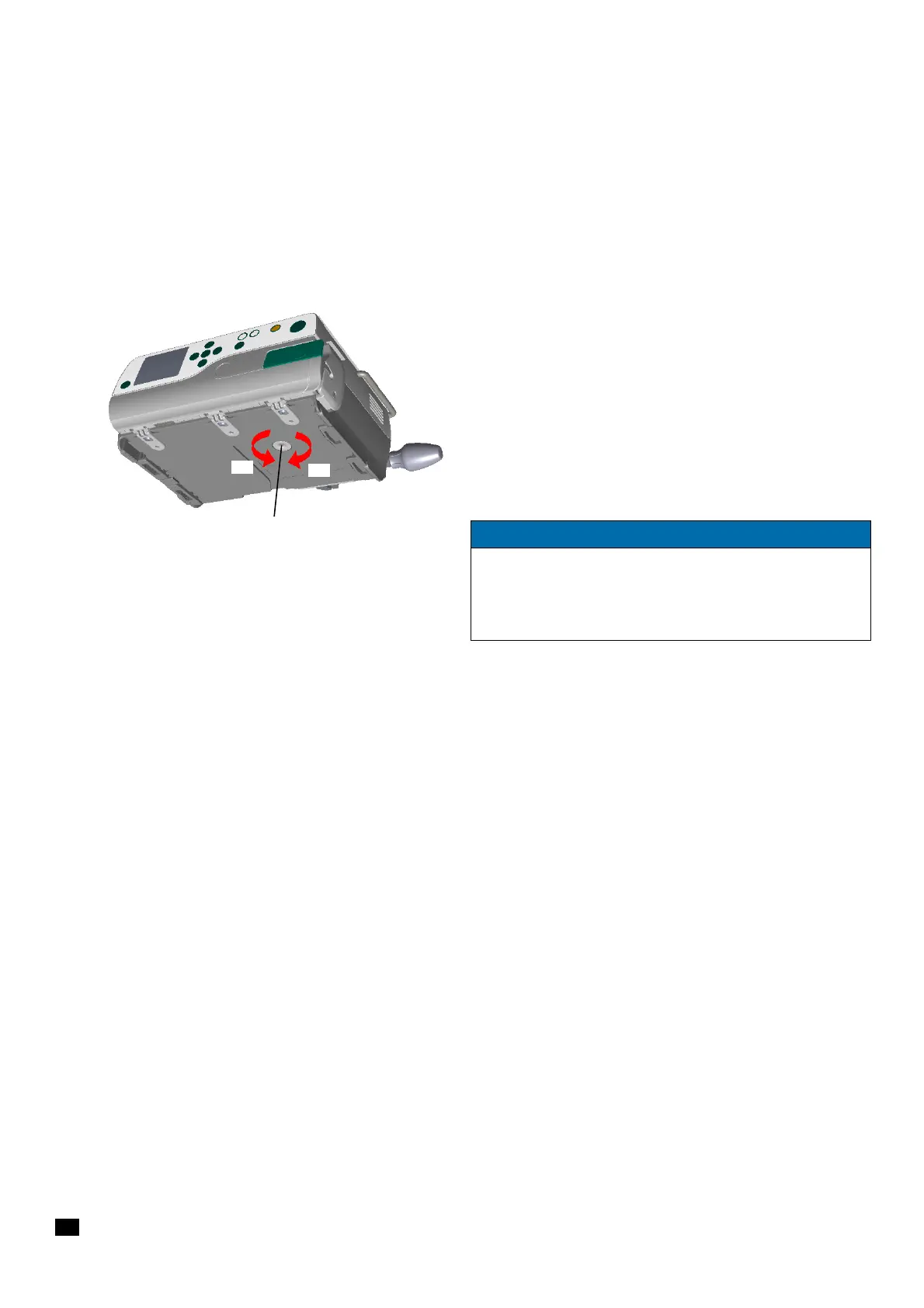

Fig. 2 - 1
1 Access to adjustment screw of mechanical pressure
2 Increasing mechanical pressure
3 Decreasing mechanical pressure
1
3
2
NOTICE
Be sure to use the correct screwdriver (T30 TORX) for adjusting
the mechanical pressure.
Do not use a T25 TORX screwdriver which will unscrew the lock
screw
(see "Power supply" ➡ p. 3 - 31).
