Assembly
✓ Processor board is mounted.
1. When replacing the loudspeaker, route the speaker cable
(Fig. 3 - 19 / Item 4) through the opening (Fig. 3 - 19 / Item 3)
of the gasket.
2. Insert the speaker (Fig. 3 - 19 / Item 1) into the gasket
(Fig. 3 - 19 / Item 2).
3. When inserting the loudspeaker into the housing, make sure
that the ridges of the gasket are vertical
(Fig. 3 - 20 / Item 1).
4. Route the cable of the loudspeaker through the left opening
(Fig. 3 - 20 / Item 2) of the loudspeaker bracket and connect it
to the processor board.
5. Ensure that the loudspeaker is locked in the loudspeaker
bracket and that the bracket is locked in the housing on both
sides.
Make sure that no cables are trapped.

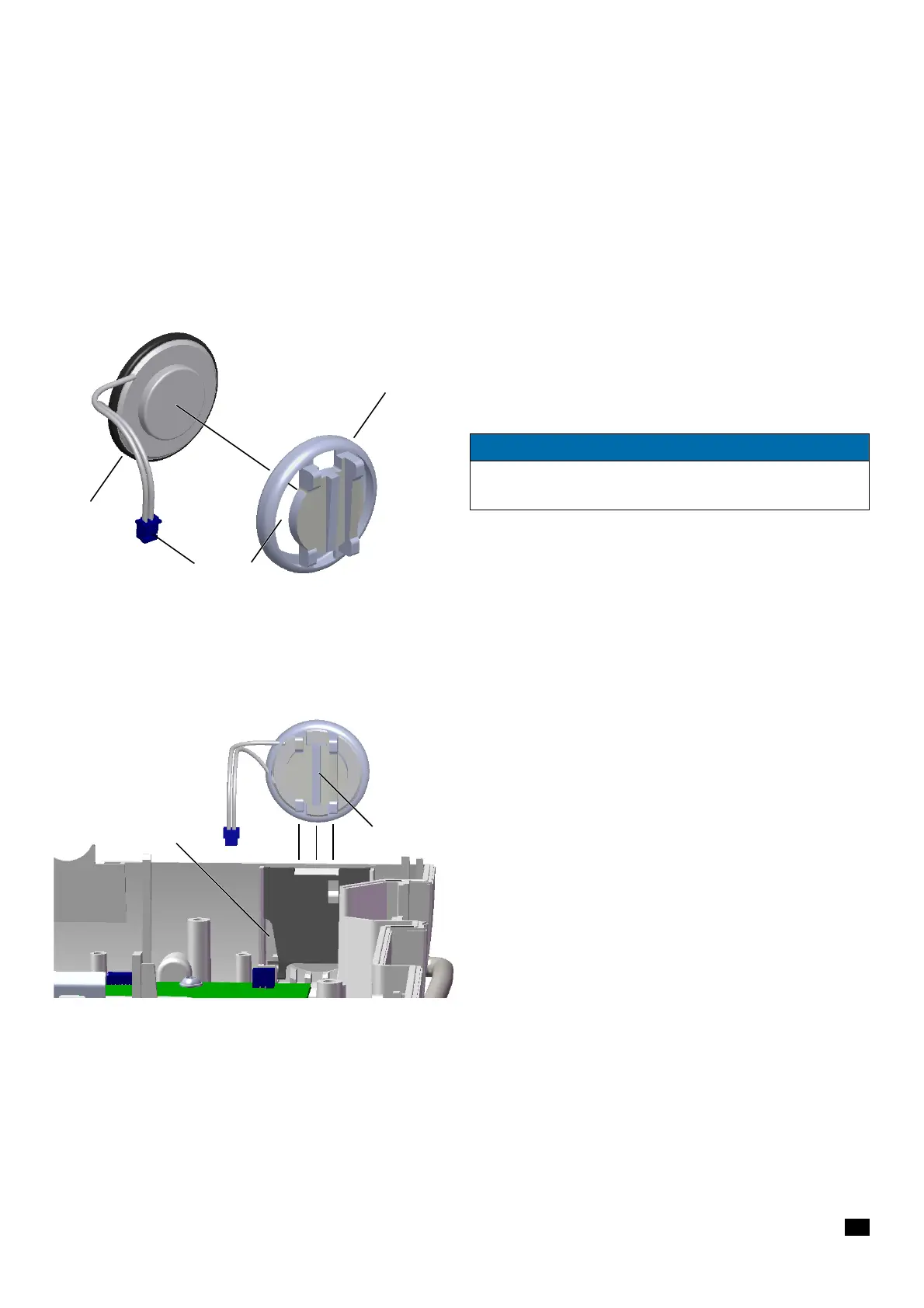

Fig. 3 - 19
1 Speaker
2Gasket
3 Cable bushing
4 Speaker cable
4
1
2
3
NOTICE
Be careful not to damage the solder connections of the speaker
cable.
Fig. 3 - 20
1 Ridges of gasket
2 Cable opening
2 1
