BDCOM S6508 Switch Hardware Installation Guide

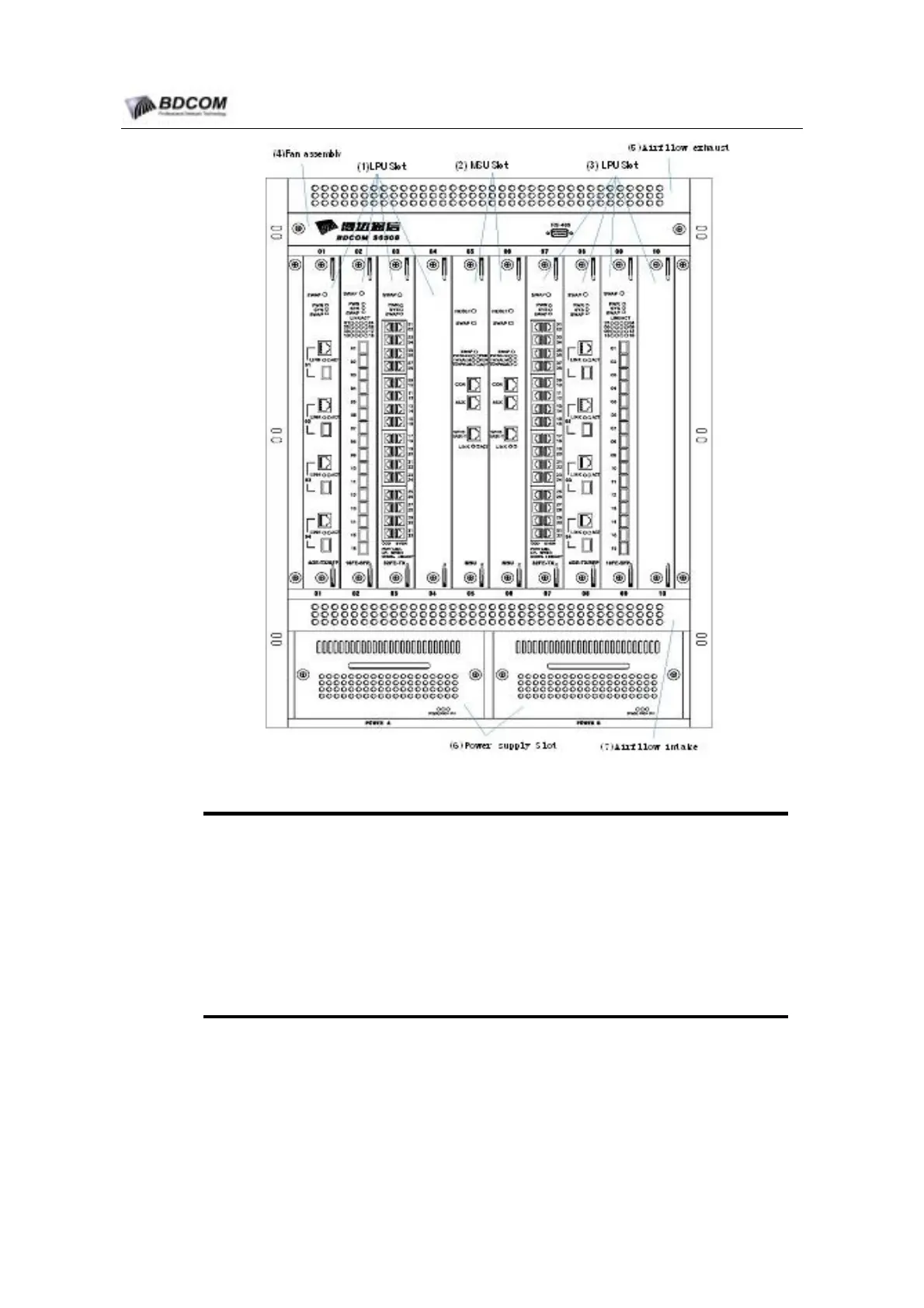

Figure 1-2 S6508 front View
(
1)LPU slot: there are 8 LPU slots, the LPU module such as LS65-32FE-TX,
LS65-4GE-TX/SFP and LS65-16FE-SFP can be pluged in the Slots.
(2)MSU slot:there are 2 MSU slots,only support LS6508-MSU.
(3)LPU slot: there are 8 LPU slots, the LPU module such as LS65-32FE-TX,
LS65-4GE-TX/SFP and LS65-16FE-SFP can be pluged in the Slots.
(4)Fan Assembly: the system fan assembly, 6 fans support.
(5)Airflow exhaust: the system module air exhaust.
(6)Power supply slot: support AC-Power module(800W) or DC-Power
module(800W).
(7)Airflow intake: the system module air inlet.
