Bdcom S6508 - 1.5 S6508 Switch Airflow

BDCOM S6508 Switch Hardware Installation Guide

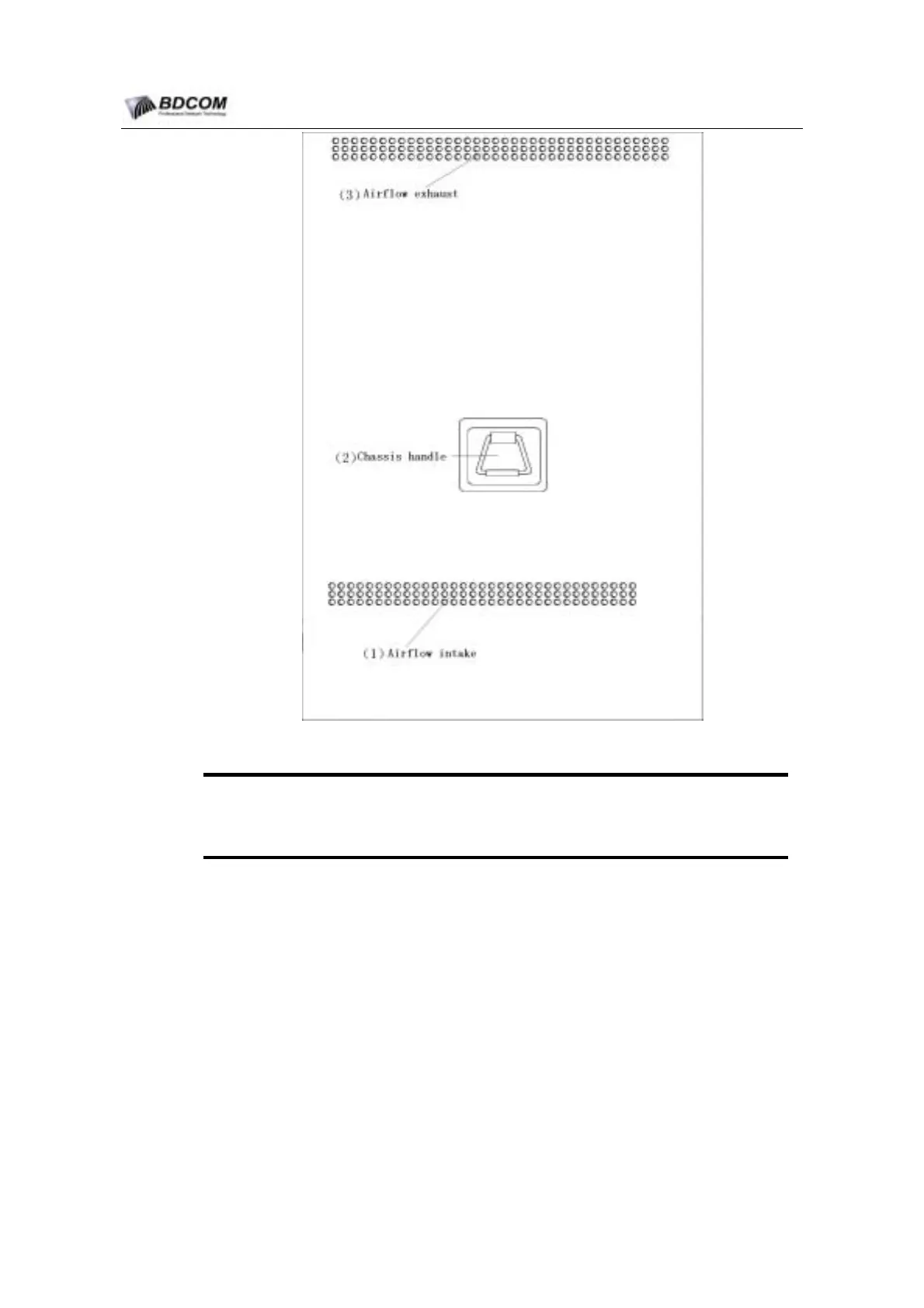

Figure 1-3 S6508 side view
(1)
Airflow intake: the system module air inlet.
(2)
Chassis handle: can be used to move the S6508.
(3)
Airflow exhaust: the system module air exhaust.
- 5 -
