11.5 SC1x3 Socket
There are some BGA test sockets available for SC1x3 prototyping. Beck IPC uses sockets from “Advanced
Interconnections”.
Type: Flip-Top
TM
BGA Socket
Ordering Number: 2FRG177-690GGCS

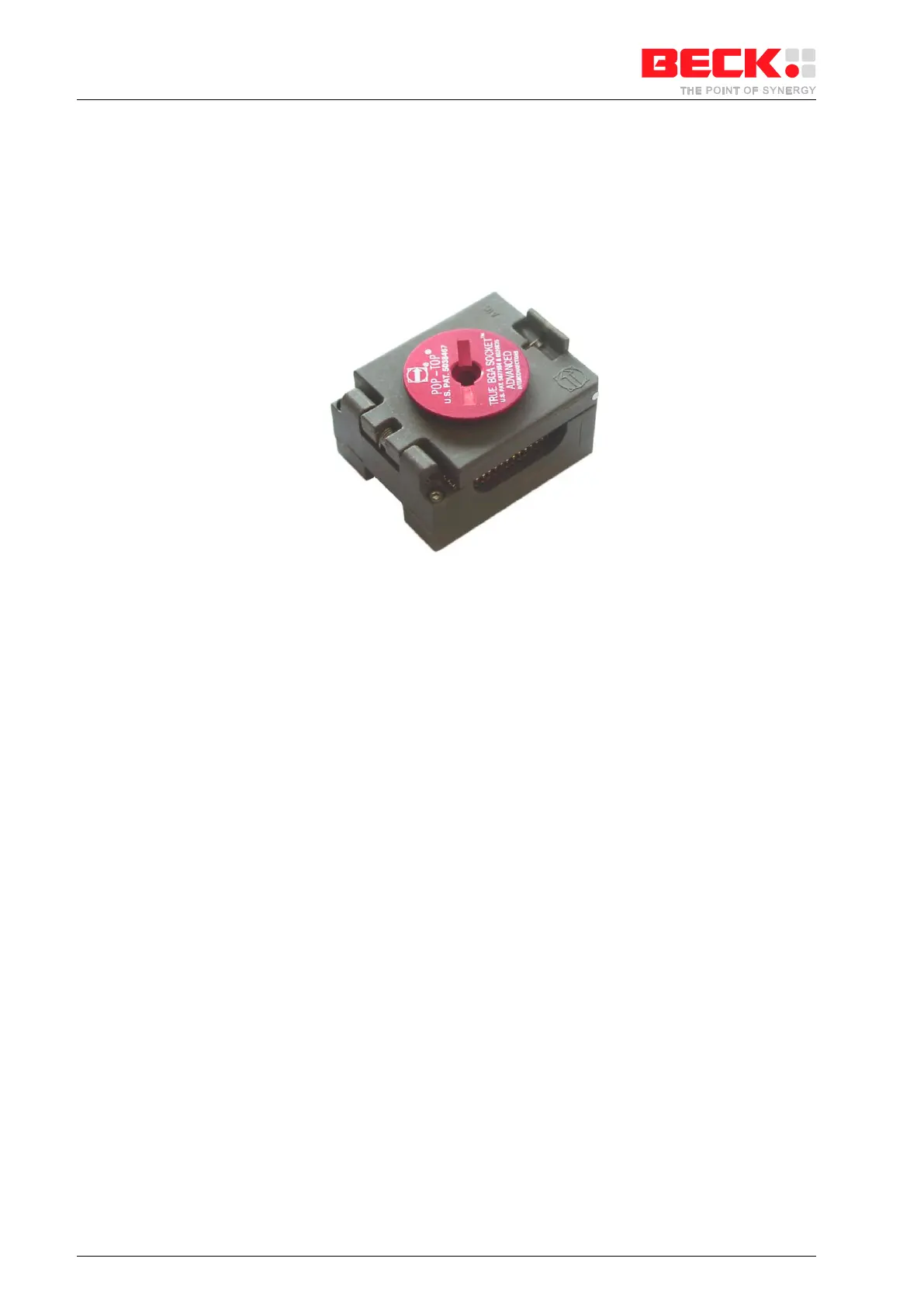

Figure 11-7: SC1x3-Socket
11.6 Custom series programming of SC1x3
The program chiptool.exe can be used to program images to the SC1x3. Chiptool can be started and
configured through command line parameters. This can be used to remote chiptool from other applications to
program SC1x3 in series with high quantities.
Chiptool also can program up to eight IPC@CHIPs parallel by using a PC with eight serial RS232 ports.
See chiptool help file for more information.
