Installation
EL72x1-901x 41Version: 1.9

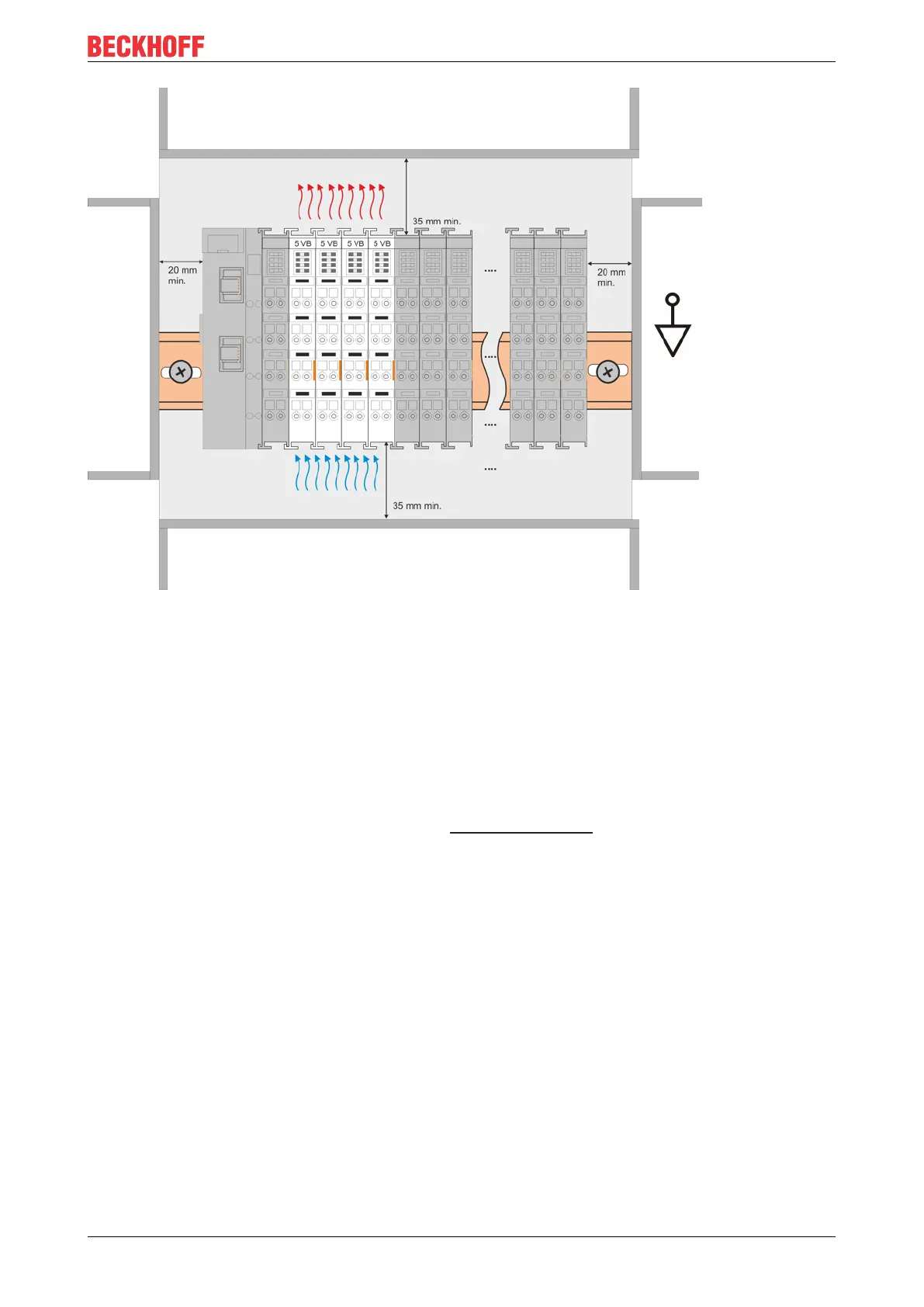

Fig.ī”25: Recommended distances of installation position for operating without fan
Compliance with the distances shown in Fig. āRecommended distances of installation position for operating
without fanā is recommended.
For further information regarding the operation without fan refer to the Technical Data of the terminal.
Standard installation position for operation with fan
The standard installation position for operation with fan requires the mounting rail to be installed horizontally
and the connection surfaces of the EL/KL terminals to face forward (see Fig. Recommended distances for
installation position for operation with fan).
The terminals are ventilated fan supported (e.g. with fan cartridge ZB8610) from below.
