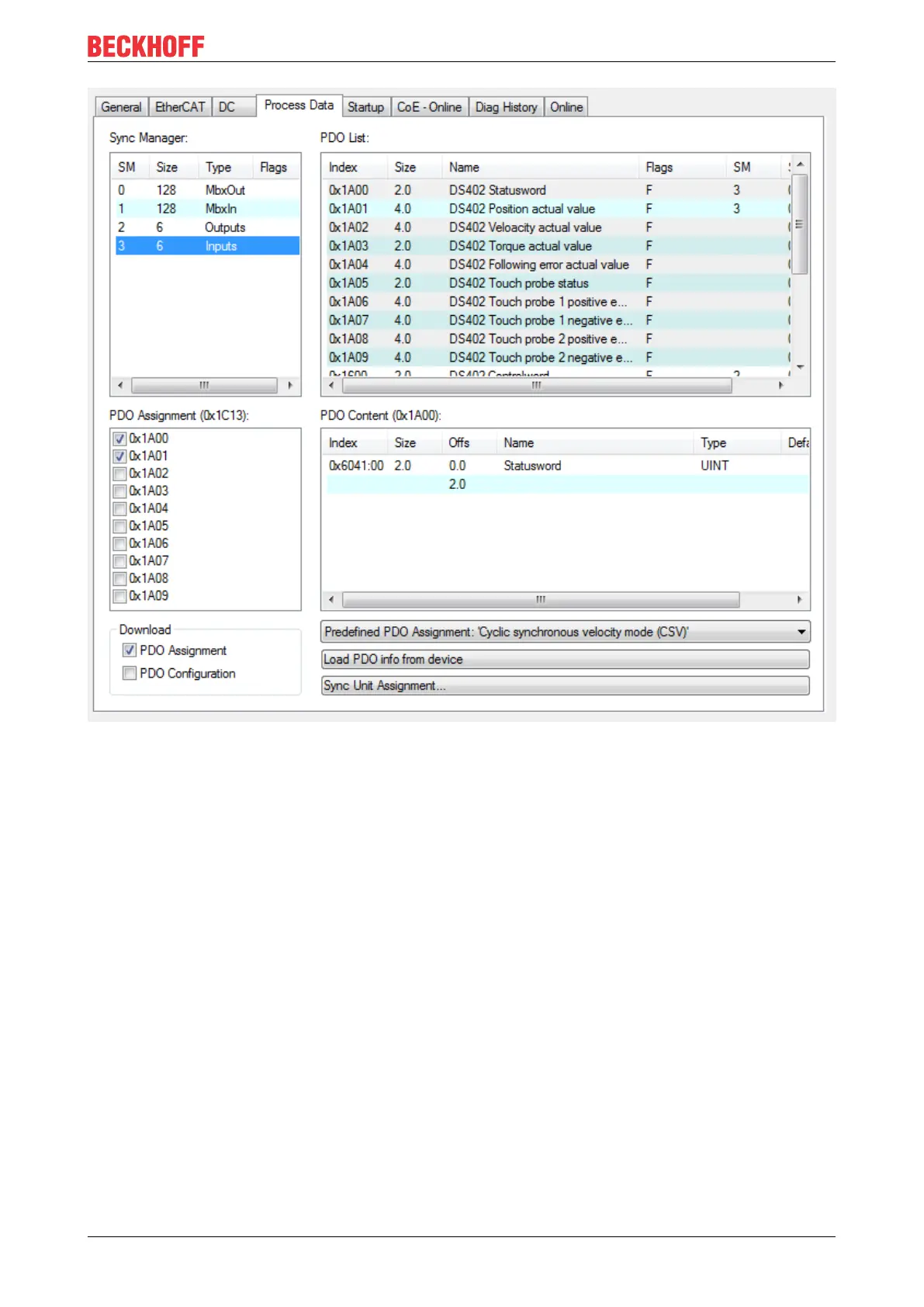

Fig.208: Process Data tab SM3, EL72x1-0010 (default)
PDO Assignment
In order to configure the process data, select the desired Sync Manager (SM 2 & 3 can be edited) in the
upper left-hand "Sync Manager" box (see fig.). The process data assigned to this Sync Manager can then be
switched on or off in the “PDO Assignment” box underneath. Restarting the EtherCAT system, or reloading
the configuration in configuration mode (F4), causes the EtherCAT communication to restart, and the
process data is transferred from the terminal.
