Product overview
EL72x1-901x18 Version: 1.9

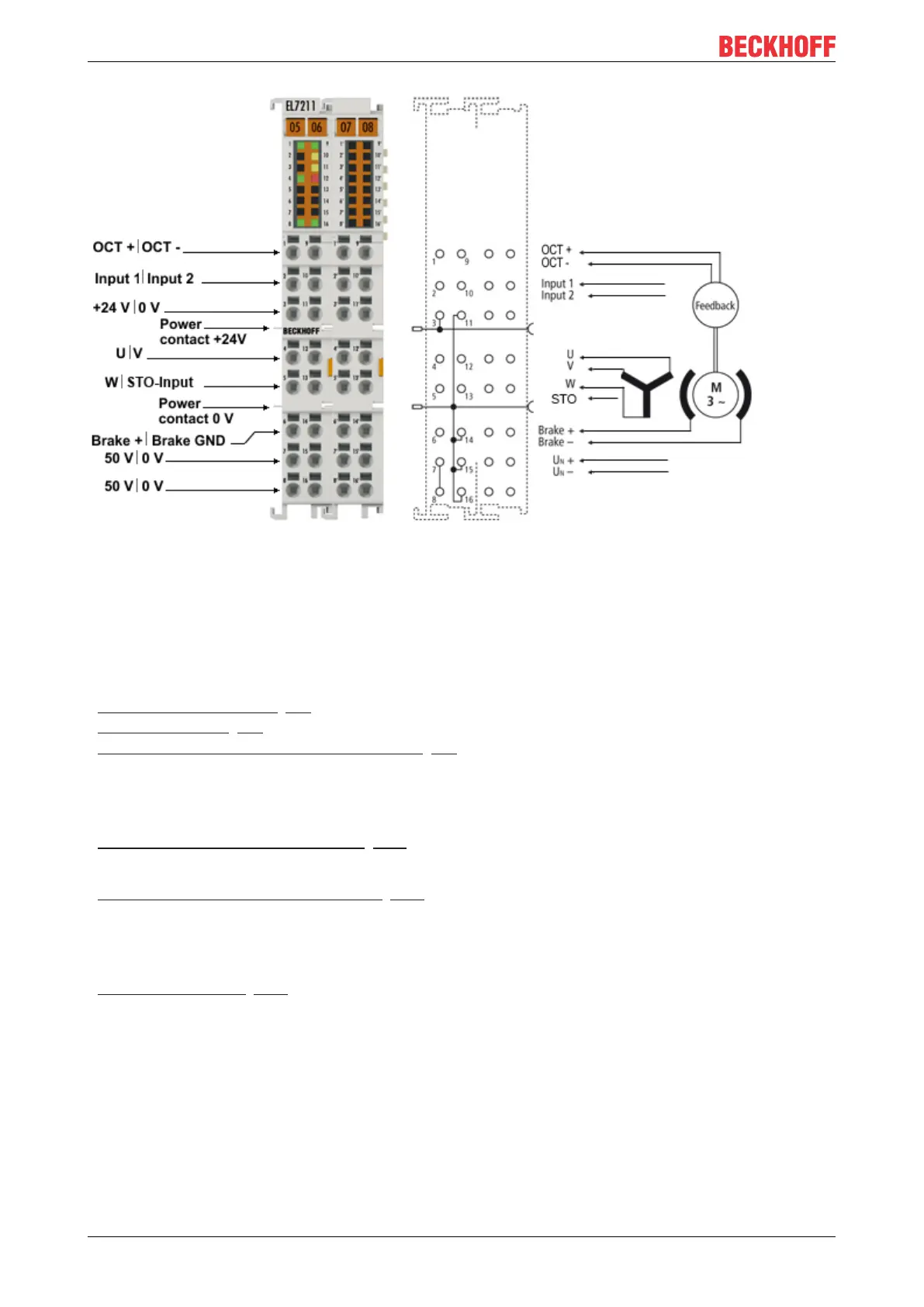

Fig.11: EL7211-901x, EL7221-901x
Quick links
Connection instructions
Chapter "Mounting and wiring",
- LEDs and pin assignment [}53]
- Shielding concept [}48]
- Notes on current measurement via Hall sensor [}51]
Configuration instructions
Chapter "Commissioning",
- Configuration of the main parameters [}115]
Chapter "Configuration with the TwinCAT System Manager",
- Object description and parameterization [}188]
Application example
Chapter "Commissioning",
- Application example [}134]
Servo motor terminals with OCT and STO input
The servo-motor EtherCAT terminals EL7201-901x (50V
DC
, 2.8A
rms
), EL7211-901x (50V
DC
, 4.5A
rms
) and
EL7221-901x (50V
DC
, 7…8A
rms
) with integrated absolute value interface, offer high servo performance in a
very compact design. The EL72x1-901x were designed for the motor types of the AM81xx series from
Beckhoff Automation.
The fast control technology, based on field-orientated current and PI speed control, supports fast and highly
dynamic positioning tasks. The monitoring of numerous parameters, such as overvoltage and undervoltage,
overcurrent, terminal temperature or motor load via the calculation of a I²T model, offers maximum
operational reliability.
