Selection Verify That
GPS SELECT
The GPS SELECT output is on or off as selected on this page (NOTE: This output is
connected to the autopilot GPS SELECT input, not to an annunciation, and therefore
this is for bench testing purposes only).
TER CAUT The TER CAUT annunciator is on or off as selected on this page.
TER INHB The TER INHB annunciator is on or off as selected on this page.
TER N/A The TER N/A annunciator is on or off as selected on this page.
TER WARN The TER WARN annunciator is on or off as selected on this page.
Table 96 Discrete Toggles
7.5.8 Main CDI/OBS Config Page
Note: This page is not applicable for the AeroNav 880/780.
This page will test the Main CDI/OBS output on the AeroNav XXX.

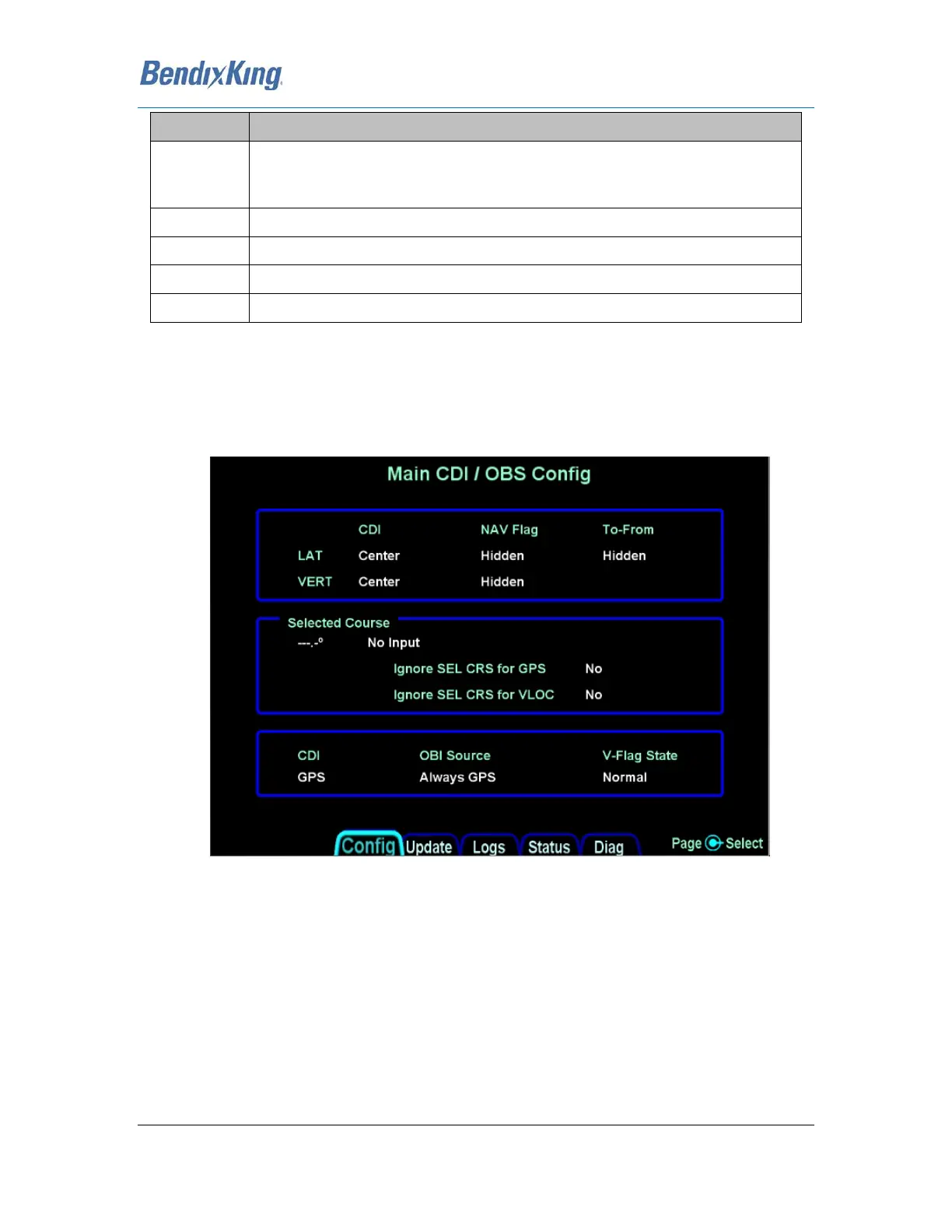

Figure 14 Main CDI/OBS Configuration Page
To Next Page
