BENDIXKing KSN 8 Series - Appendix C: Mechanical Drawings

89000046-014 KSN 780/8XX/900 AeroNav AML STC Installation Manual for Helicopters
Rev 0 Page C-1
© Honeywell International Inc. Do not copy without express permission of Honeywell.
Appendix C: Mechanical Drawings
Figure C - 1 AeroNav 880/900 Tray Installation.............................................................................................. 1
Figure C - 2 AeroNav 780/800 Tray Installation.............................................................................................. 2
Figure C - 3 AeroNav 880/900 Instrument Panel Cutout ................................................................................ 3
Figure C - 4 AeroNav 780/800 Instrument Panel Cutout ................................................................................ 4
Figure C - 5 Typical GPS Antenna Installation ................................................................................................. 5
Figure C - 6 AT-575 GPS Antenna Hole Pattern .............................................................................................. 5
Figure C - 7 AV-801 GPS Antenna Hole Pattern .............................................................................................. 6
Figure C - 8 Typical GPS Antenna Doubler Installation ................................................................................... 7
Figure C - 9 Typical GPS Antenna Doubler ..................................................................................................... 8

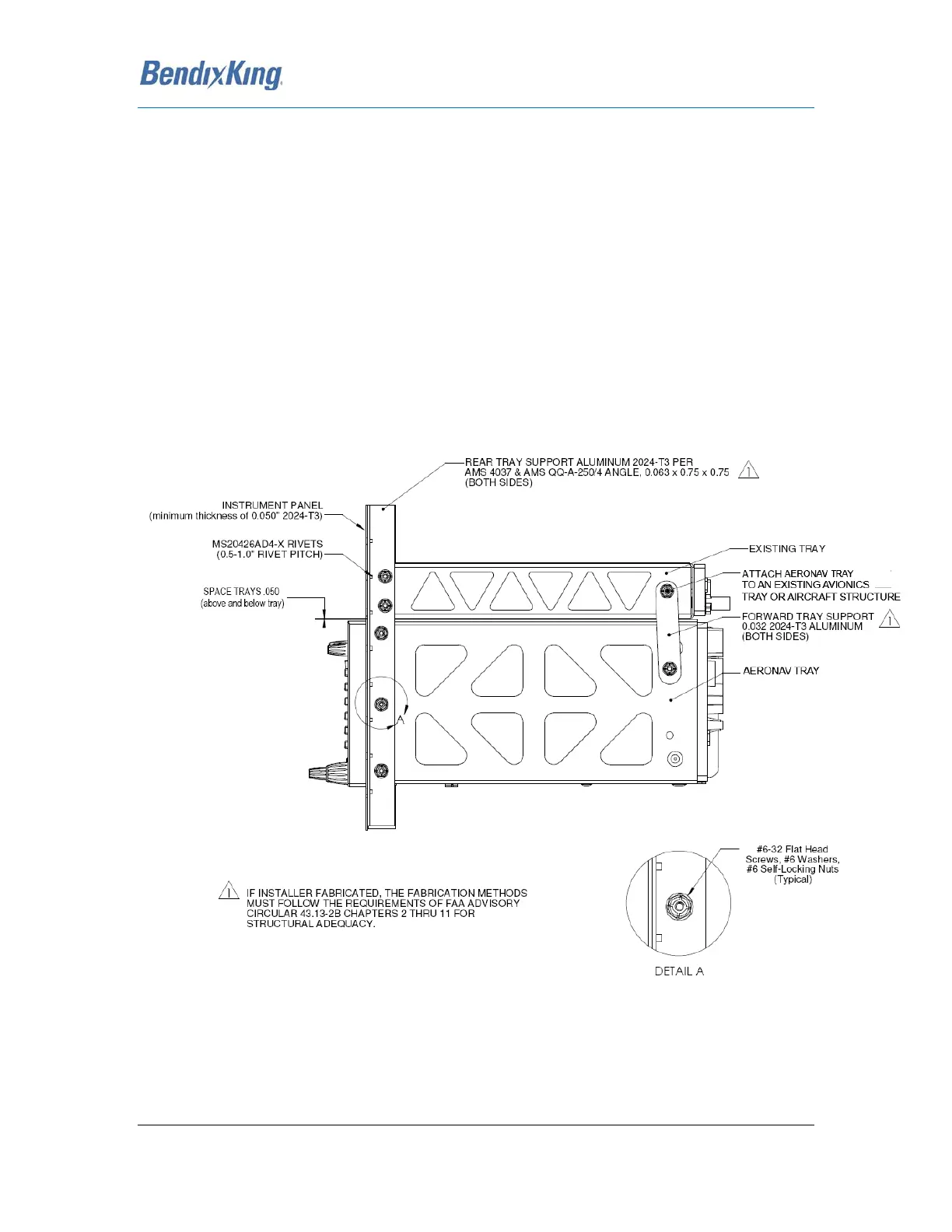

Figure C - 1 AeroNav 880/900 Tray Installation
