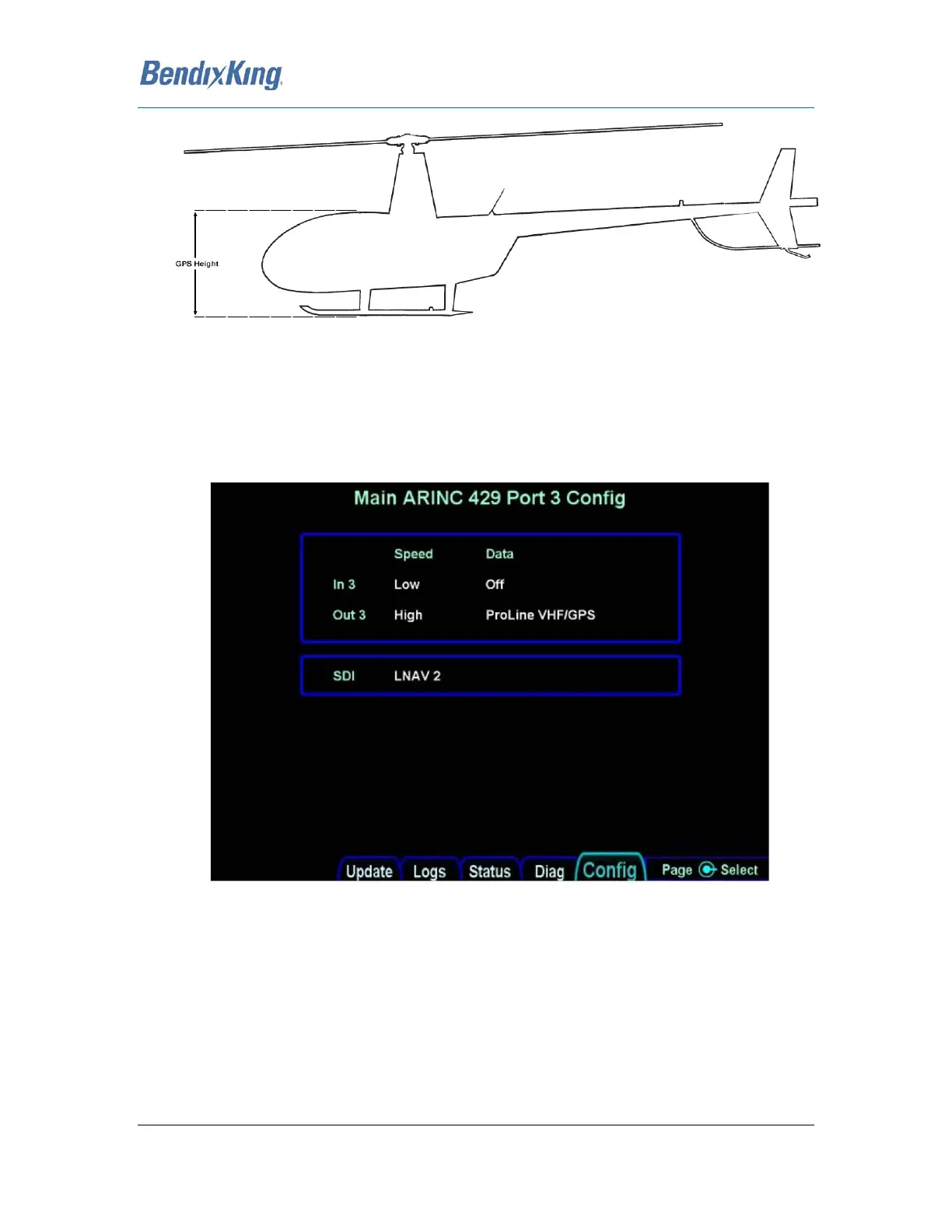

Figure 18 GPS Antenna Height
7.5.12 Main ARINC 429 Port 3 Configuration
This page will configure a GLAS enabled IFD to transmit a pseudo VOR/ILS output to the flight displays
and autopilot on ARINC 429 port 3. Only configure this setting if high speed VOR/ILS ARINC out is
specified on the drawing.
Figure 19 ARINC 429 Port 3 Setup
Set the ARINC 429 speed to high and select Proline VHF/GPS in the Out 3 section.
