89000046-014 KSN 780/8XX/900 AeroNav AML STC Installation Manual for Helicopters
Rev 0 Page 7-24
© Honeywell International Inc. Do not copy without express permission of Honeywell.
7.5.9 VOR/LOC/GS CDI
Note: This page is not applicable for the AeroNav 880/780.
This will test the operation of the VOR/LOC/GS output from the AeroNav XXX on the P1006 connector
to an external CDI/HSI display.

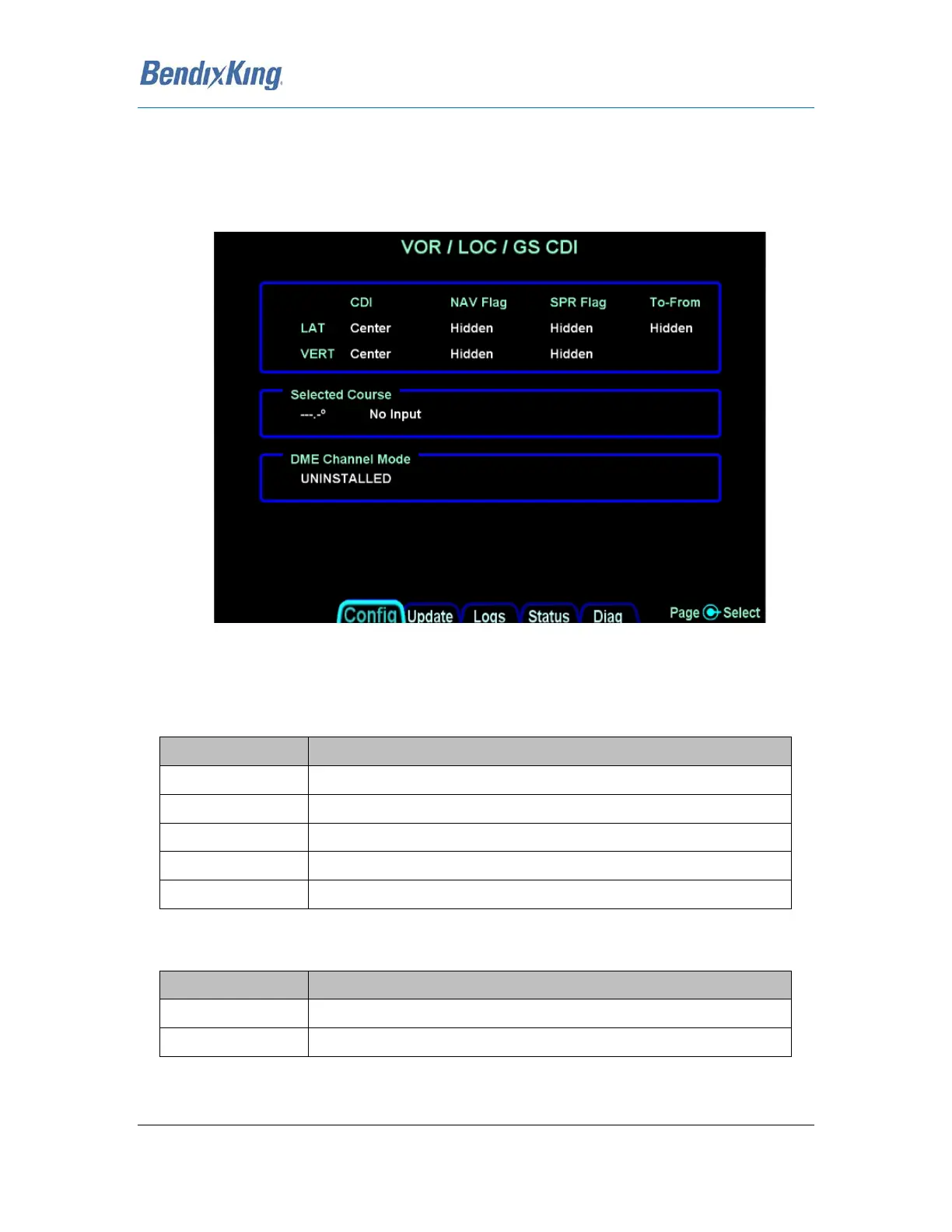

Figure 15 CDI Test Page
Note: This page currently will only test low level flags and does not support the testing of super
flags
CDI (LAT/VERT)
Selection Description
Max Left The external CDI will be off-scale full deflection to the left/up
Full Left The external CDI will be deflected to the left/up
Center The external CDI will be centered
Full Right The external CDI will be deflected to the right/down
Max Right The external CDI will be off-scale full deflection to the right/down
Table 104 Navigation CDI Test Page
NAV Flag (LAT/VERT)
Selection Description
Hidden The lateral and vertical flag on the external indicator is hidden
In view The lateral and vertical flag on the external indicator is in view
Table 105 Navigation Flag Test Page
