7.5.2 ARINC 429 Port Configuration
The ARINC 429 can be selected individually for each ARINC 429 Transmit and Receive Port. Each
Transmit and Receive Port will have a “Speed” selection and “Data” selection.

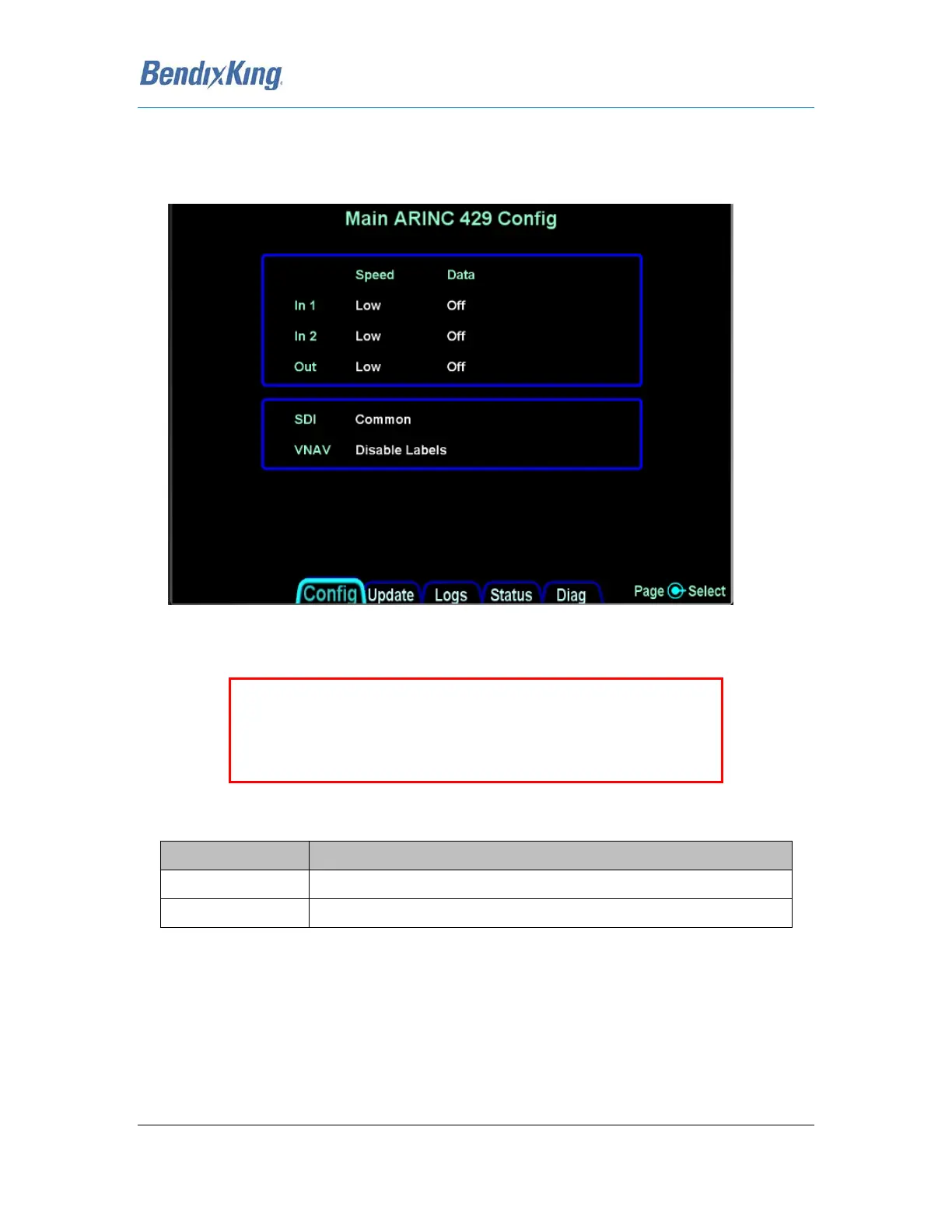

Figure 7 AeroNav 880/900 ARINC 429 Configuration Page
The “Speed” Selection will have the following options:
Selection Description
Low Standard low-speed ARINC 429 (nominally 12.5 Kb per second)
High High-speed ARINC 429 (nominally 100Kb per second)
Table 77 ARINC 429 Speed Selection
Note: Shown is the AeroNav 780/800 ARINC 429 Config Page. The
AeroNav 880/900 Config Page has an OUT 1 and OUT 2. OUT 2 on
the AeroNav 880/900 has only 3 settings, OFF, ARINC 743A, and
Onboard Radar
