10. Software and Database Update Procedures
10.1 Data Updates
Periodic updates to navigation data, charts data, and obstacle data are all made through the USB port
on the front of each AeroNav. Updates must be performed in accordance with 14 CFR Part 43,
Appendix A (c) and FAA AC 20-153( ) paragraph 11.
The table below summarizes the databases update periods:
Database Update Cycle Comments & Source
Chart Data 14 days Expiration watermark displayed after 14 days indefinitely until
data updated (Jeppesen) (N/A for AeroNav 780/800)
Nav Data 28 days Airport, airway, navaid, airspace, and FMS data (Jeppesen)
Obstacle
Data
56 days Displayed on map and used for TA and FLTA functions (Jeppesen)
Terrain Data As required Displayed on map and used for TA and FLTA functions. The
AeroNav is shipped from the factory with this database already
loaded and updates are anticipated to be a rare occurrence.
Table 117 Database Update Cycle
In the event the terrain data ever needs updating, this is also performed through the front panel USB
port.
Use one of the formatted fobs supplied by BendixKing (marked by the BendixKing logo printed on one
side). In the event one of those fobs are not available, either call BendixKing for a replacement fob (a
nominal fee will be charged) or purchase a replacement through other means. Acceptable alternative
USB drives are FAT32 format, between 1-16 GB, and manufactured by WINTEC filemate.
(http://www.wintecind.com/features/FileMate/USBFlashDrives.html).
To perform a data update, ensure the data to be updated is placed onto one of the acceptable USB
fobs. Carefully insert the USB fob into the AeroNav USB slot while power is turned off. When the
AeroNav is powered up, select the “Setup” tab of the SYS page and then pick the “Update Databases”
LSK.

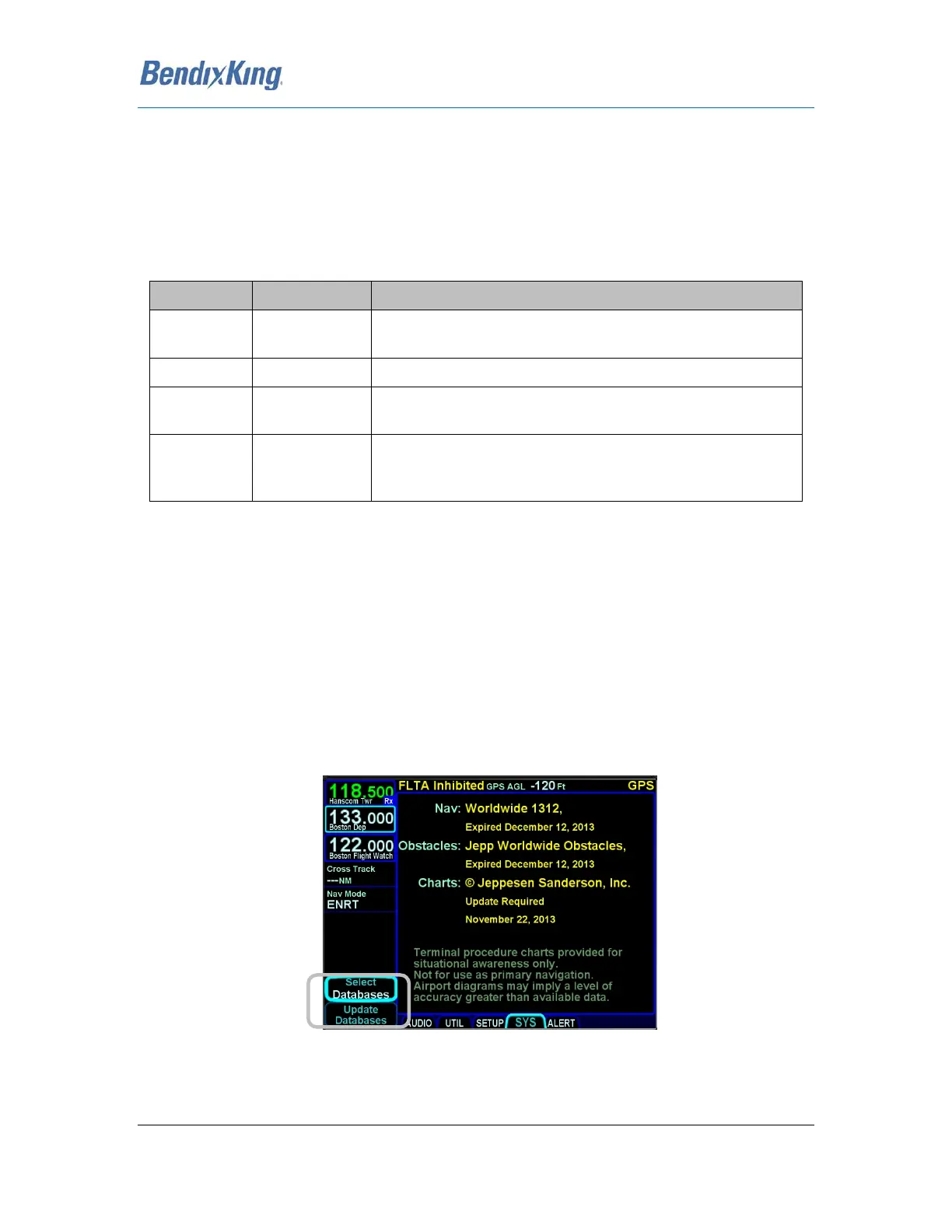

Figure 36 Update Databases LSK
To Next Page
