89000046-014 KSN 780/8XX/900 AeroNav AML STC Installation Manual for Helicopters
Rev 0 Page 7-35
© Honeywell International Inc. Do not copy without express permission of Honeywell.
Designate the Network to Connect To:
1. Boot the AeroNav to Maintenance mode.
2. Select the "Config" tab.
3. Turn the right knob until the "Network Configuration" Page is displayed as shown in the
image below.

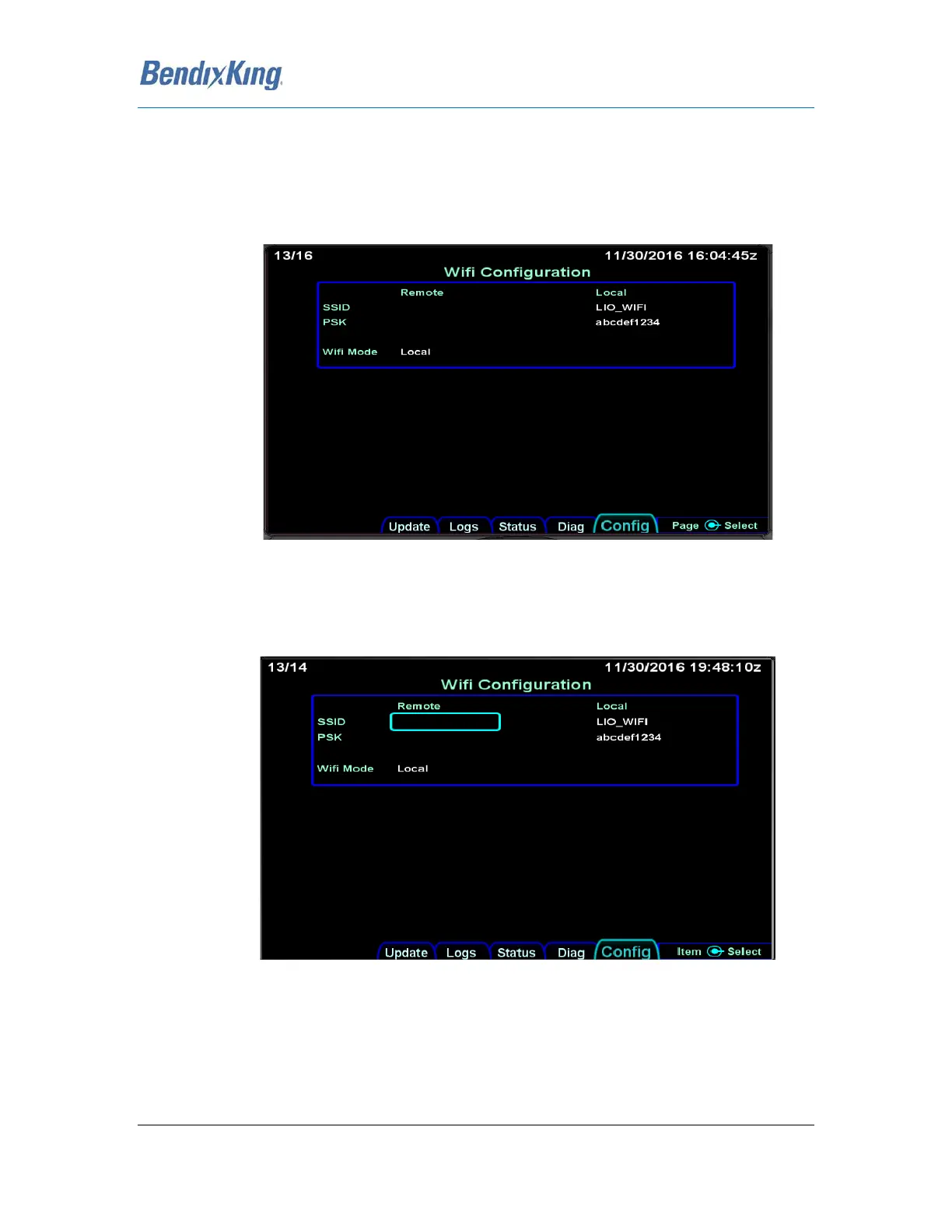

Figure 27 WiFi Configuration Page
4. Press the lower right knob
5. Using the outer right knob, advance the selection rectangle until the Remote SSID field is
selected as shown:
Figure 28 WiFi Configuration Page
6. Press the right knob
7. The inner knob can now be used to advance through the available characters. The outer
knob will advance to the next character in the name. Set this field to the name of the
remote network to which you wish to attach. This will be provided by the device that
supplies the network.
