BENDIXKing KSN 8 Series - Page 172

89000046-014 KSN 780/8XX/900 AeroNav AML STC Installation Manual for Helicopters
Rev 0 Page D-24
© Honeywell International Inc. Do not copy without express permission of Honeywell.
Bendix/King
KI 208A
P208A1
20
21
43
42
48
3
9
50
2
15
14
Navigation
Indicator
LNAV LATERAL DEV +LT IN
LNAV LATERAL DEV +RT IN
LNAV +TO IN
LNA V +FROM IN
LNAV LATERAL +FLAG IN
LNAV LATERAL -FLAG IN
LNAV FCS LOC ENGAGE IN
OBS RETURN
LNAV OBS EXCITATION IN
LNAV OBS SIN OUT
LNAV OBS COS OUT
RELAY ENGAGE
UTS OF OTHER UNITS
OR TO TERMINATE
GROUNDS TO
5
6
10
VOR/LOC COMPOSITE
NAV LOC ENGAGE IN

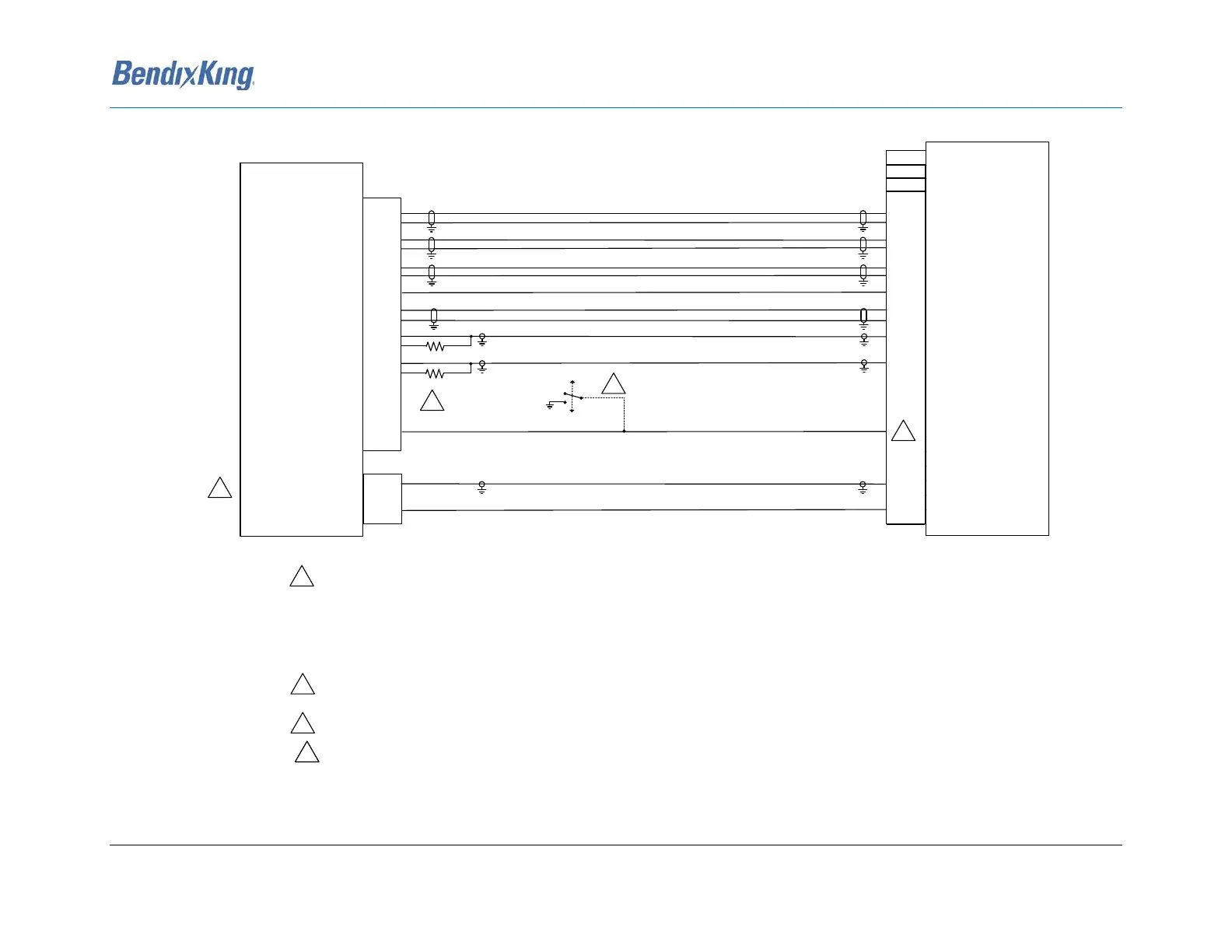

Figure D - 17: Main Indicator KI208 Interconnect
