89000046-014 KSN 780/8XX/900 AeroNav AML STC Installation Manual for Helicopters
Rev 0 Page D-42
© Honeywell International Inc. Do not copy without express permission of Honeywell.
AERONAV XXX
48
49
58
56
57
AVIDYNE SKYTRAX 100
TIS 429 TX 1A
TIS 429 TX 1B
RS232 GPS RX
GND
FIS DISPLAY RX
FIS DISPLAY TX
DISPLAY GND
P1
27
8
34
32
24
5
23
P1001
ARINC 429 IN A
ARINC 429 IN B
RS232 TX 2
RS232 TX 1
RS232 RX 1
NOTES:
1. ALL WIRES TO BE 22 AWG OR GREATER UNLESS OTHERWISE NOTED.
2. AT AERONAV UNIT, TERMINATE SHIELD GROUNDS TO THE CONNECTOR BACKSHELL OR USE CARD-EDGE
CONNECTOR TO TERMINATE SHIELD GROUNDS TO BACK PLATE.
3. WIRE HARNESS OVERBRAID IS NOT SHOWN BUT MAY BE REQUIRED.
4. REFER TO MANUFACTURER’S DOCUMENTATION FOR COMPLETE PINOUT AND INTERCONNECT INFORMATION.
5. IF RS232 OR ARINC429 PORTS ARE UNAVAILABLE, USE ANY OTHER AVAILABLE PORT.
6. IF SW VERSION 10.1.1, 10.1.2, OR 10.1.3 IS INSTALLED CONFIGURE ARINC 429 PORT FOR MLB Traffic, Port Speed: High
7. CONFIGURE GPS RS232 PORT FOR Aviation.
8. IF SW VERSION 10.2 OR LATER IS INSTALLED CONFIGURE DISPLAY RS232 PORT FOR SkyTrax100.
9. TRAFFIC DATA IS COMBINED WITH WEATHER OVER RS232 WITH SW VERSION 10.2 OR LATER. ARINC 429
CONNECTION IS NOT REQUIRED.
6
7
8
9

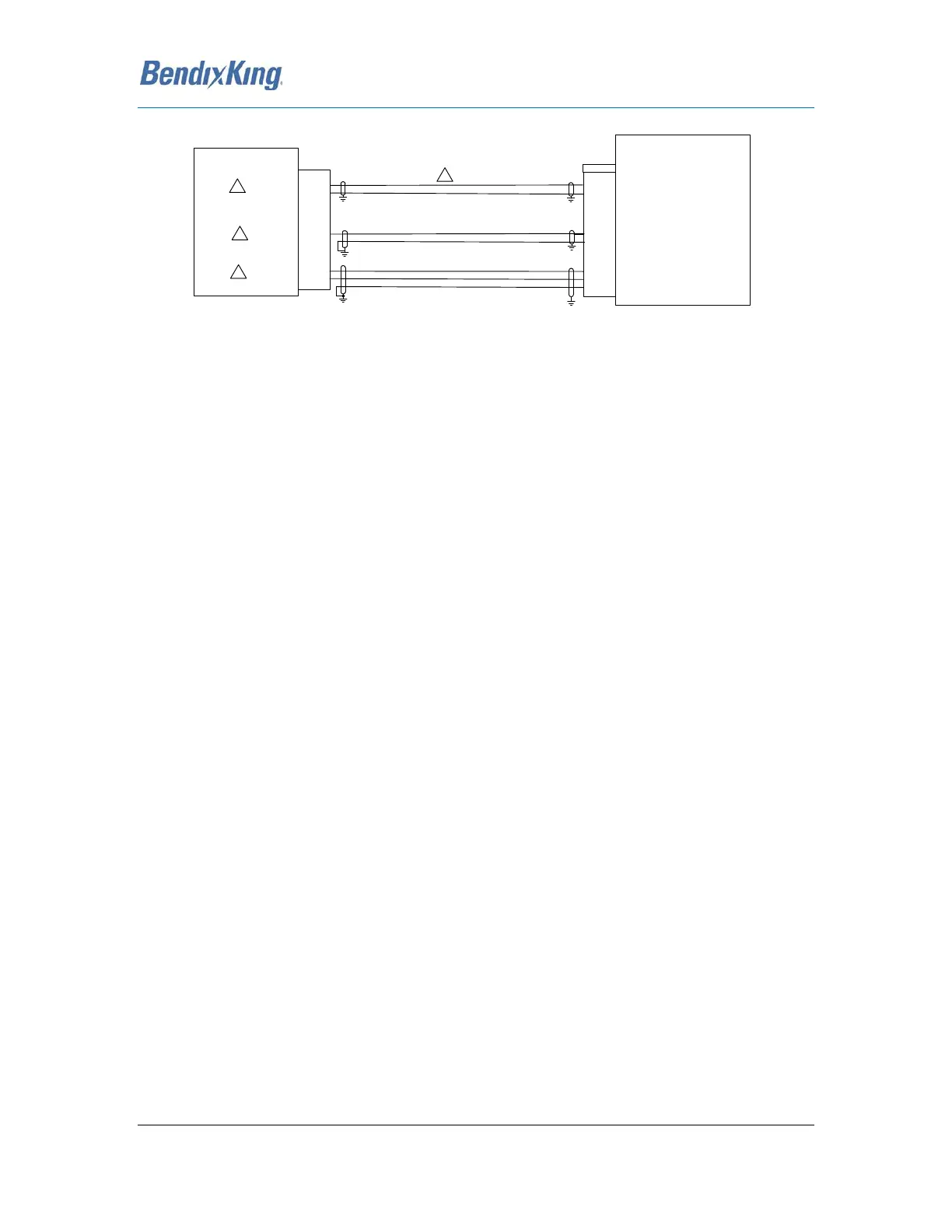

Figure D - 34: Skytrax100B ADS-B IN Receiver Interconnect
